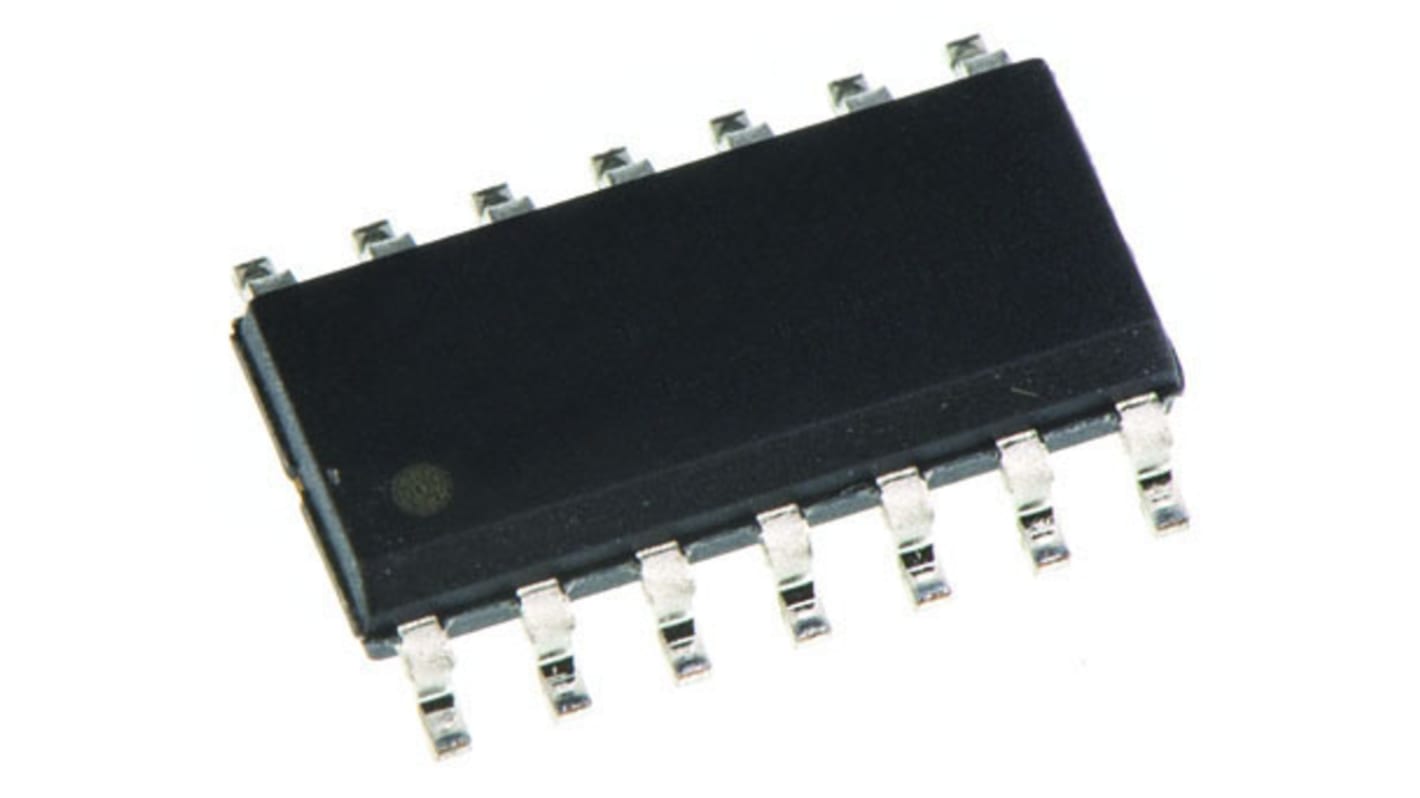

XTR112UA Texas Instruments, 4 → 20 mA Current Loop Transmitter 14-Pin SOIC

RS Stock No.:
660-5686
Mfr. Part No.:
XTR112UA
Brand:
Texas Instruments
Texas Instruments
View all Current Loop Transmitters
Discontinued product
RS Stock No.:
660-5686
Mfr. Part No.:
XTR112UA
Brand:
Texas Instruments

Legislation and Compliance


Product Details

4mA-to-20mA Current-Loop, Texas Instruments



Specifications

AttributeValue
Output Current4 → 20 mA
Mounting TypeSurface Mount
Package TypeSOIC
Pin Count14
Dimensions8.65 x 3.91 x 1.58mm
Height1.58mm
Length8.65mm
Maximum Loop Supply Voltage36V
Width3.91mm
Minimum Loop Supply Voltage7.5V
Minimum Operating Temperature-40 °C
Maximum Operating Temperature+85 °C
Discontinued product
