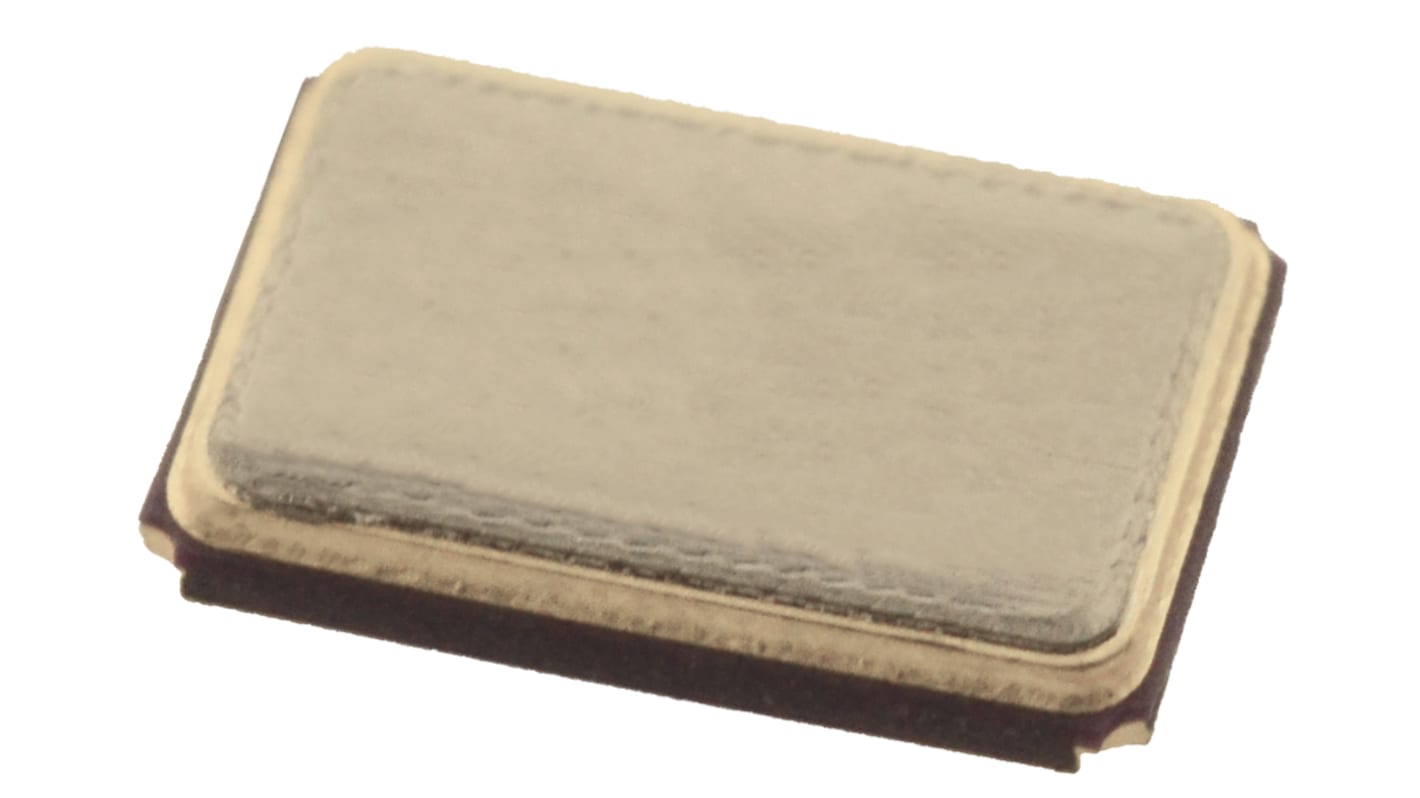

RS PRO 12MHz Crystal ±30ppm SMT 4-Pin 5 x 3.2 x 1mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro HE Surface Mount Microprocessor Crystals, 5mm x 3.2mm

From RS Pro, these surface mount microprocessor crystals have a small footprint, with dimensions of only 5 x 3.2 x 1.2 mm. These crystals provide excellent frequency stability and excellent frequency tolerance.

Specifications
Attribute Value
Standard Frequency 12MHz
Mounting Type Surface Mount
Load Capacitance 20pF
Package Type SMT
Pin Count 4
Length 5mm
Width 3.2mm
Height 1mm
Dimensions 5 x 3.2 x 1mm
Frequency Tolerance ±30ppm
Frequency Stability ±50ppm
Series Resistance 35Ω
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
90 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 0.857
(exc. VAT)
£ 1.028
(inc. VAT)
Units
Per unit
Per Pack*
10 - 40
£0.857
£8.57
50 - 90
£0.729
£7.29
100 - 240
£0.643
£6.43
250 - 490
£0.558
£5.58
500 +
£0.514
£5.14
*price indicative
