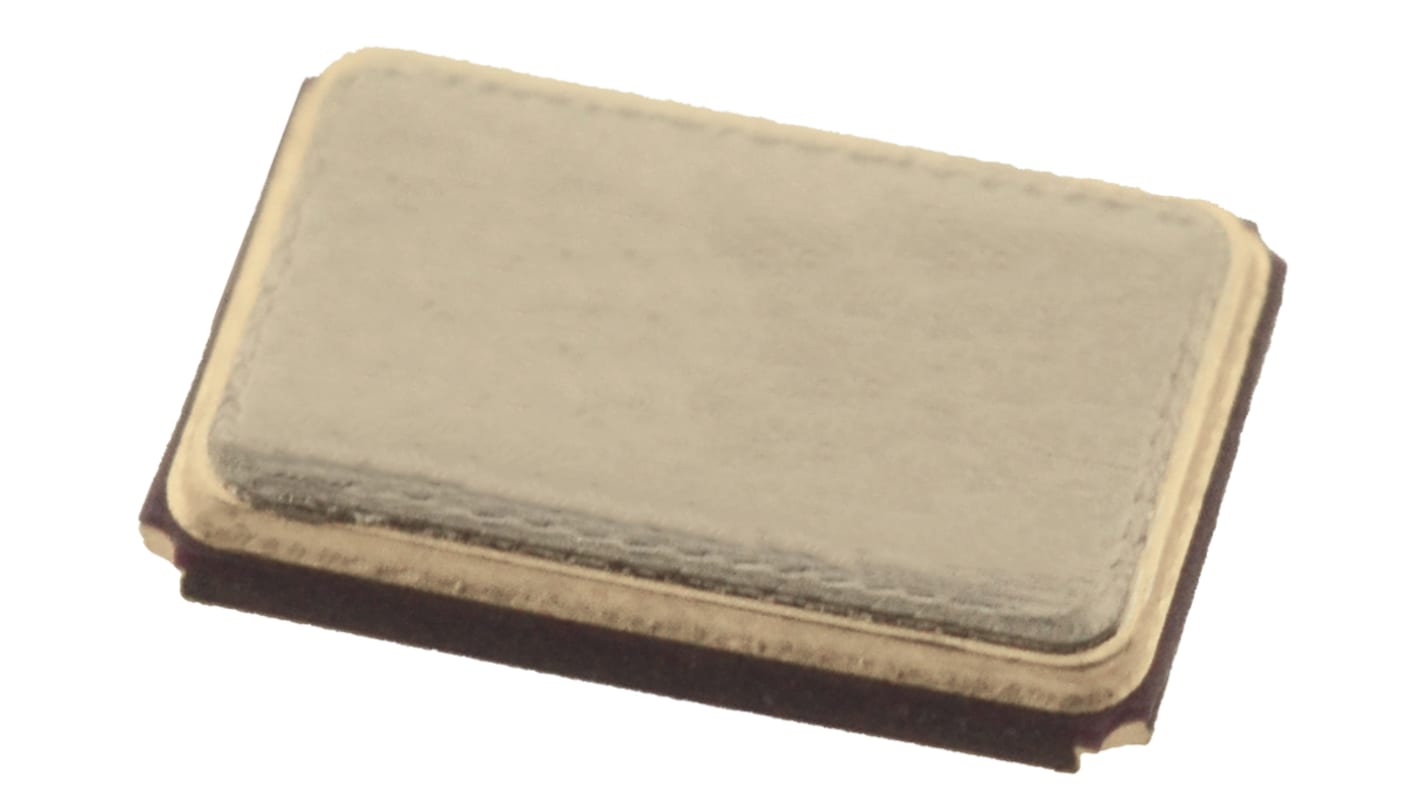

RS PRO 12MHz Crystal ±30ppm SMT 4-Pin 5 x 3.2 x 1mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro HE Surface Mount Microprocessor Crystals, 5mm x 3.2mm

From RS Pro, these surface mount microprocessor crystals have a small footprint, with dimensions of only 5 x 3.2 x 1.2 mm. These crystals provide excellent frequency stability and excellent frequency tolerance.

Specifications
Attribute Value
Standard Frequency 12MHz
Mounting Type Surface Mount
Load Capacitance 12pF
Package Type SMT
Pin Count 4
Length 5mm
Width 3.2mm
Height 1mm
Dimensions 5 x 3.2 x 1mm
Frequency Tolerance ±30ppm
Frequency Stability ±30ppm
Series Resistance 35Ω
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
100 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 0.71
(exc. VAT)
£ 0.85
(inc. VAT)
Units
Per unit
Per Pack*
10 - 20
£0.71
£7.10
30 - 40
£0.674
£6.74
50 - 90
£0.607
£6.07
100 - 140
£0.546
£5.46
150 +
£0.492
£4.92
*price indicative
