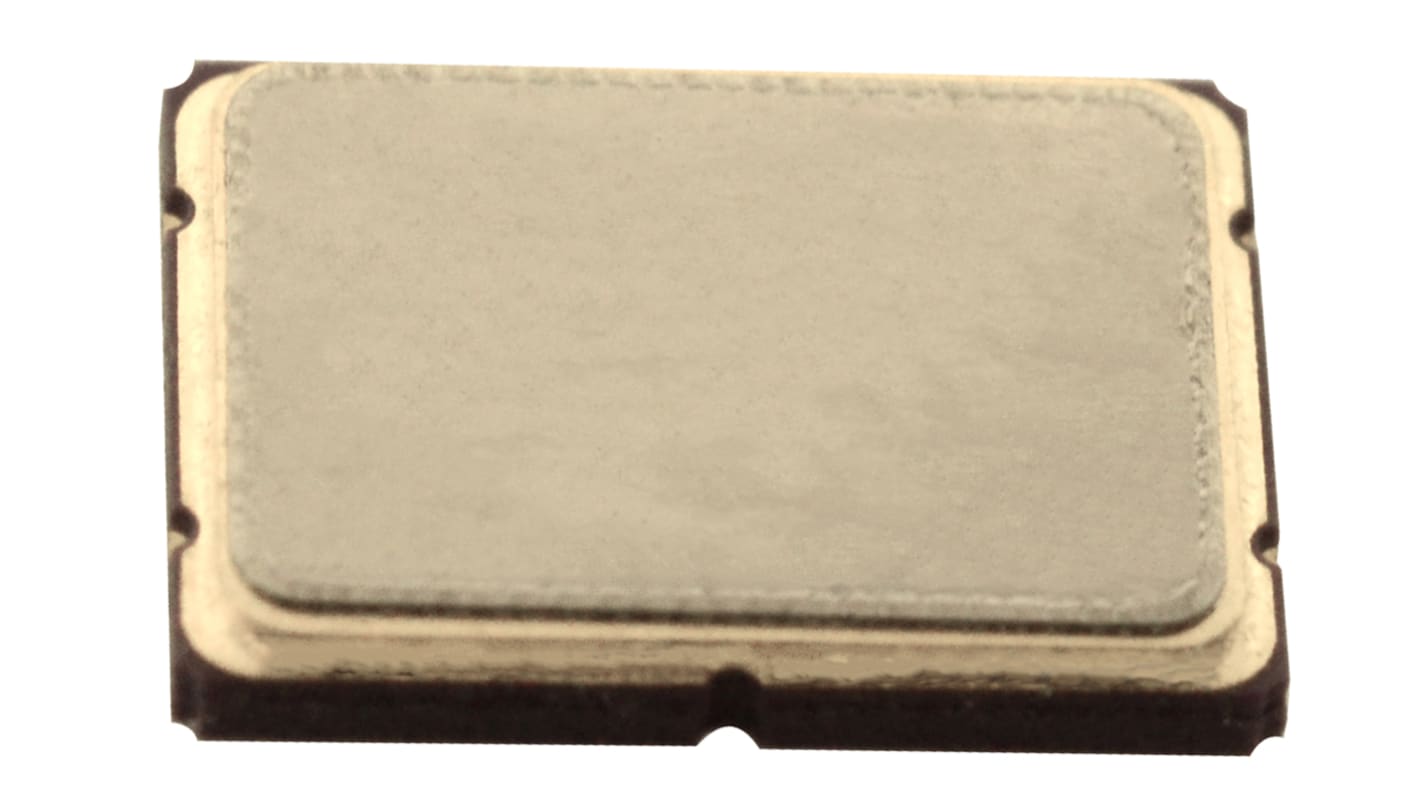

RS PRO 6MHz Crystal ±30ppm SMT 4-Pin 7 x 5 x 1.1mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro HB Surface Mount Microprocessor Crystals, 7mm x 5mm

From RS Pro, these surface mount microprocessor crystals feature a low profile. With a wide frequency range, they also offer stability and tight tolerance to ±10 ppm.

Specifications
Attribute Value
Standard Frequency 6MHz
Mounting Type Surface Mount
Load Capacitance 20pF
Package Type SMT
Pin Count 4
Length 7mm
Width 5mm
Height 1.1mm
Dimensions 7 x 5 x 1.1mm
Frequency Tolerance ±30ppm
Frequency Stability ±30ppm
Series Resistance 100Ω
Minimum Operating Temperature -10 °C
Maximum Operating Temperature +60 °C
135 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
£ 0.446
(exc. VAT)
£ 0.535
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£0.446
£2.23
*price indicative
