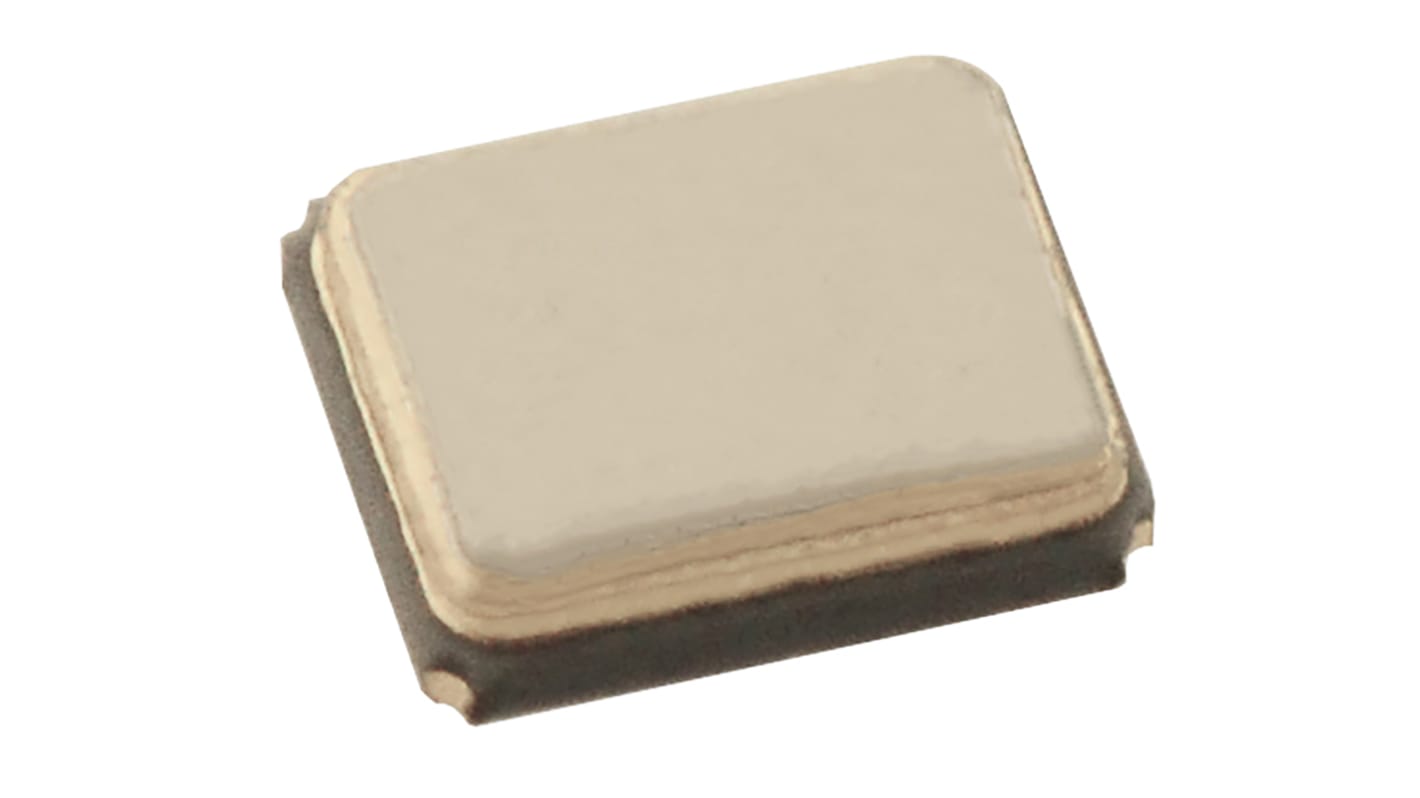

RS PRO 32MHz Crystal ±10ppm SMT 4-Pin 2 x 1.6 x 0.5mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro JD Surface Mount Microprocessor Crystals, 2mm x 1.6mm

From RS Pro, these surface mount microprocessor crystals feature a compact design that is ideal for high density surface mounting. These crystals also offer a high degree of accuracy.

Specifications
Attribute Value
Standard Frequency 32MHz
Mounting Type Surface Mount
Load Capacitance 10pF
Package Type SMT
Pin Count 4
Length 2mm
Width 1.6mm
Height 0.5mm
Dimensions 2 x 1.6 x 0.5mm
Frequency Tolerance ±10ppm
Frequency Stability ±10ppm
Series Resistance 180Ω
Minimum Operating Temperature -40 °C
Maximum Operating Temperature +85 °C
100 In stock for FREE next working day delivery
Price Each (In a Pack of 10)
£ 0.275
(exc. VAT)
£ 0.33
(inc. VAT)
Units
Per unit
Per Pack*
10 +
£0.275
£2.75
*price indicative
