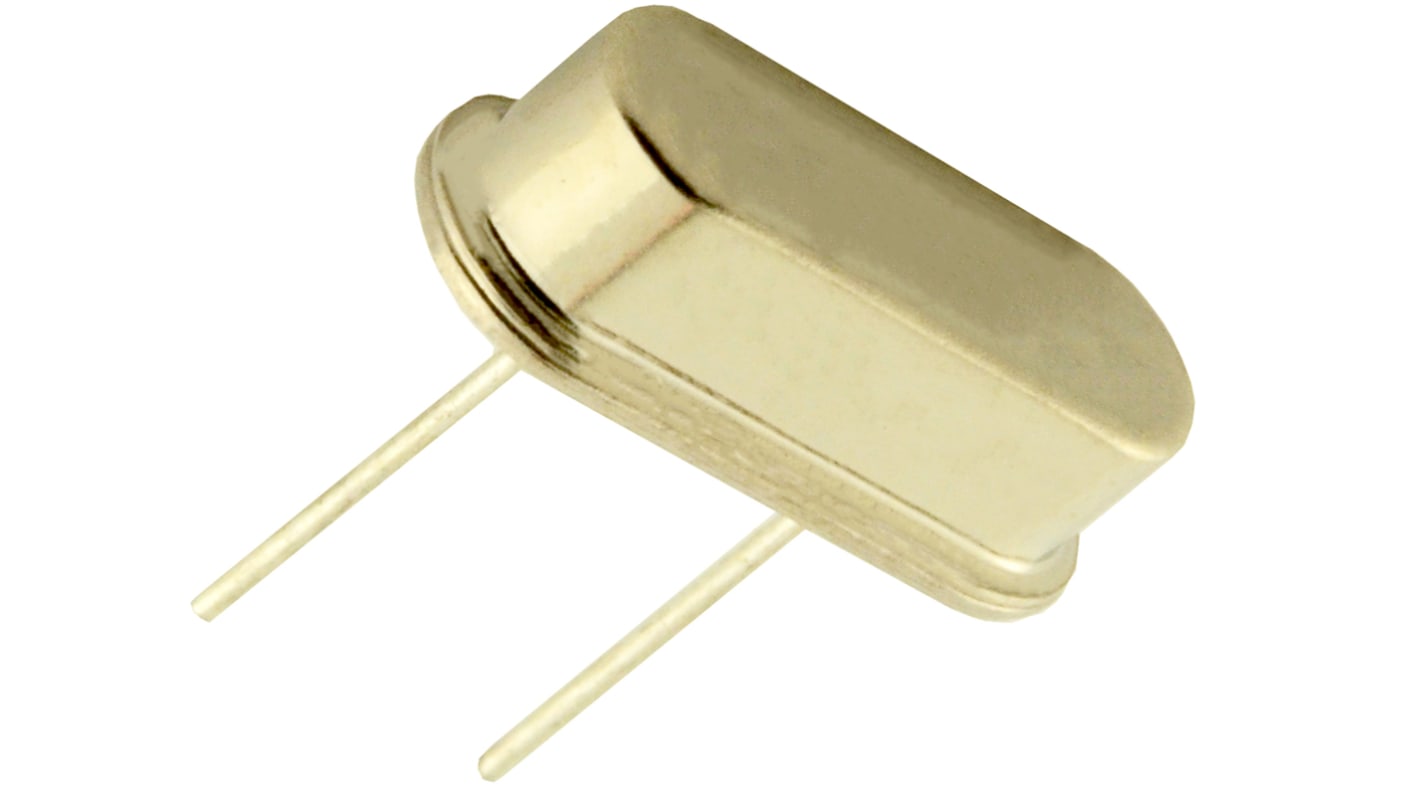

RS PRO 10MHz Crystal ±30ppm 2-Pin 11.35 x 5 x 3.5mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Pro AB Microprocessor Crystals, 10.3mm x 5mm

From RS Pro, these through hole microprocessor crystal units feature a maximum height of 3.5 mm with through hole mounting.

Product Applications:

These microprocessor crystal units are suitable for clock and timing applications and act as an excellent clock signal generator for CPUs. They are also suitable for communication and networking applications.

Specifications
Attribute Value
Standard Frequency 10MHz
Mounting Type Through Hole
Load Capacitance 18pF
Pin Count 2
Length 11.35mm
Width 5mm
Height 3.5mm
Dimensions 11.35 x 5 x 3.5mm
Frequency Tolerance ±30ppm
Frequency Stability ±50ppm
Series Resistance 50Ω
Minimum Operating Temperature -20 °C
Maximum Operating Temperature +70 °C
Available to back order for despatch 05/03/2020
Price Each (In a Pack of 25)
£ 0.186
(exc. VAT)
£ 0.223
(inc. VAT)
Units
Per unit
Per Pack*
25 - 50
£0.186
£4.65
75 - 100
£0.176
£4.40
125 - 225
£0.158
£3.95
250 - 350
£0.143
£3.575
375 +
£0.128
£3.20
*price indicative
