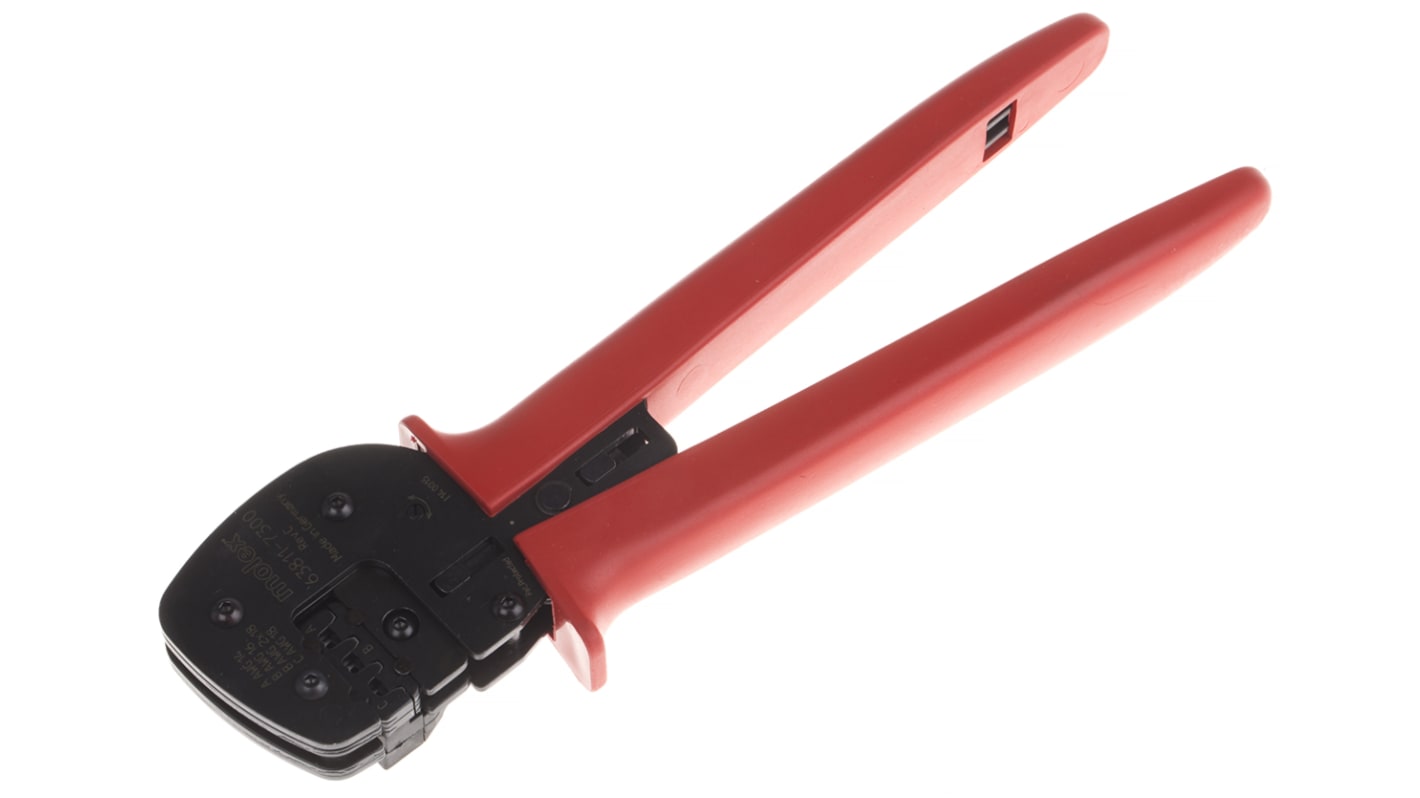

Molex, HANDTOOL Ratchet Crimping Tool

  • RS Stock No. 363-691
  • Mfr. Part No. 63811-7300
  • Brand Molex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Sabre Contacts & Tooling

Four points of electrical contact for greater contact reliability
14-18 awg
Hand Crimp Tool for Sabre Flat Blade Crimp Terminals
Activation/Deactivation Tool to be used with 43178 Wire to Wire Terminal Series.
Extraction Tool used to extract terminals from housings.

Standards

UL E29179 and UL1950 ; CSA LR19980

Molex Sabre Series

7.5mm pitch
Range of robust, single-row connectors, for high current applications up to 18A
System allowing wire-wire and wire-board connection
Suitable for 14 to 18 awg
Positive locking casings with audible click, to prevent accidental disconnection
Casings polarised to ensure correct mating
Contacts completely insulated within the casing

Specifications
Attribute Value
Series HANDTOOL
Crimp Tool Type Ratchet
4 In stock for FREE next working day delivery
Price Each
£ 317.52
(exc. VAT)
£ 381.02
(inc. VAT)
Units
Per unit
1 +
£317.52
