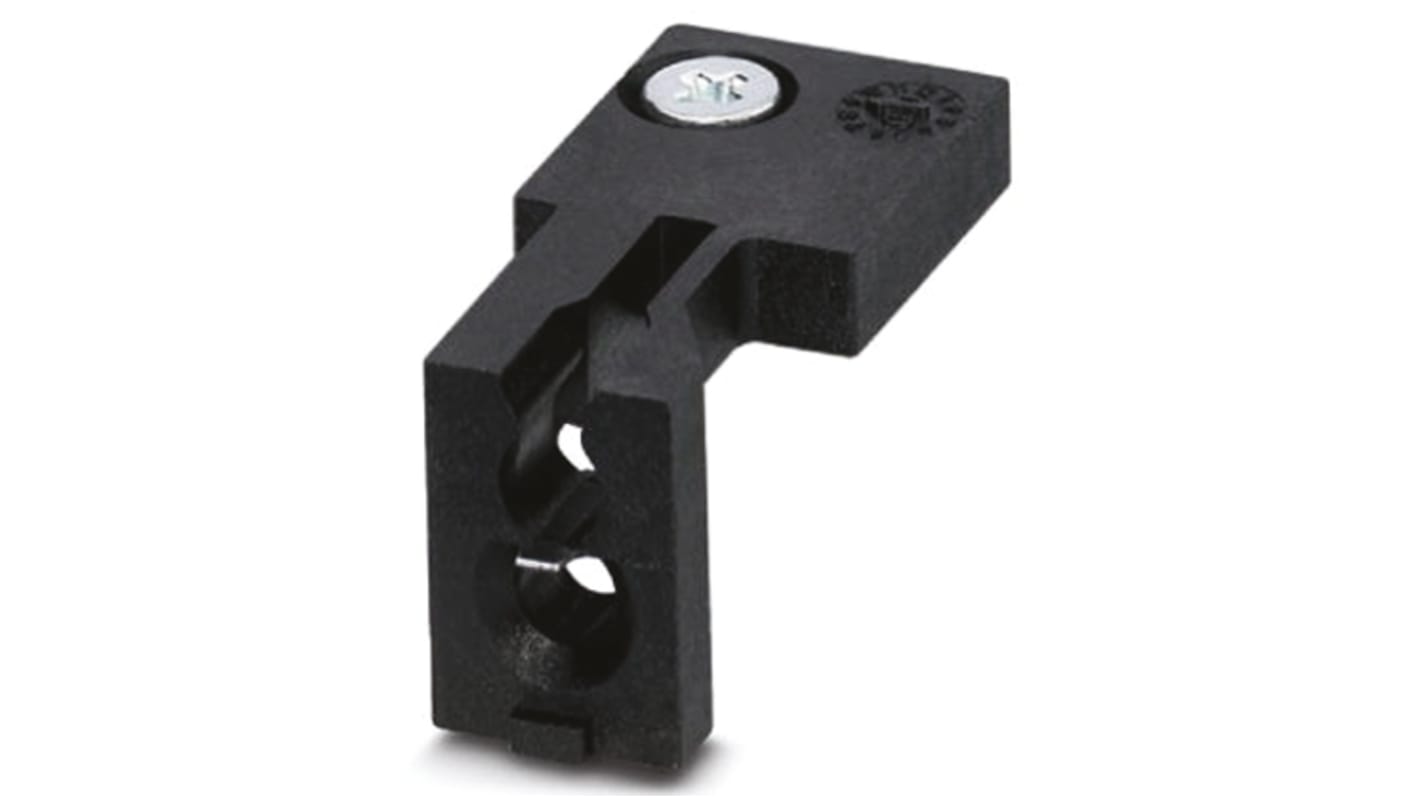

Phoenix Contact CF 3000 LOC 1.5 Series, Locator

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Phoenix Contact CF 3000 Series Bench Press for Taped Ferrules

CF 3000 series 120V portable electrical bench press for the automatic stripping and crimping of DIN 46228-4 taped insulated crimp wire ferrules with a wire size range of 0.25 to 2.5mm2 (24-14 AWG). This CF 3000 crimping and stripping bench press strips the conductor in a single operation then produces a trapeziodal crimp and can process up to 1200 ferrules an hour.
For spare locators see stock number 803-4367 (1.0mm2) and 803-4376 (1.5mm2)
For suitable taped wire crimp ferrules see stock numbers 804-6893 and 804-6919 typically.

Phoenix Contact Ferrule Crimping Tools

Specifications
Attribute Value
Type Locator
Series CF 3000 LOC 1.5
Available to back order for despatch 31/12/2019
Price Each
£ 10.63
(exc. VAT)
£ 12.76
(inc. VAT)
Units
Per unit
1 - 4
£10.63
5 - 24
£10.10
25 - 74
£9.57
75 - 149
£9.04
150 +
£8.76
