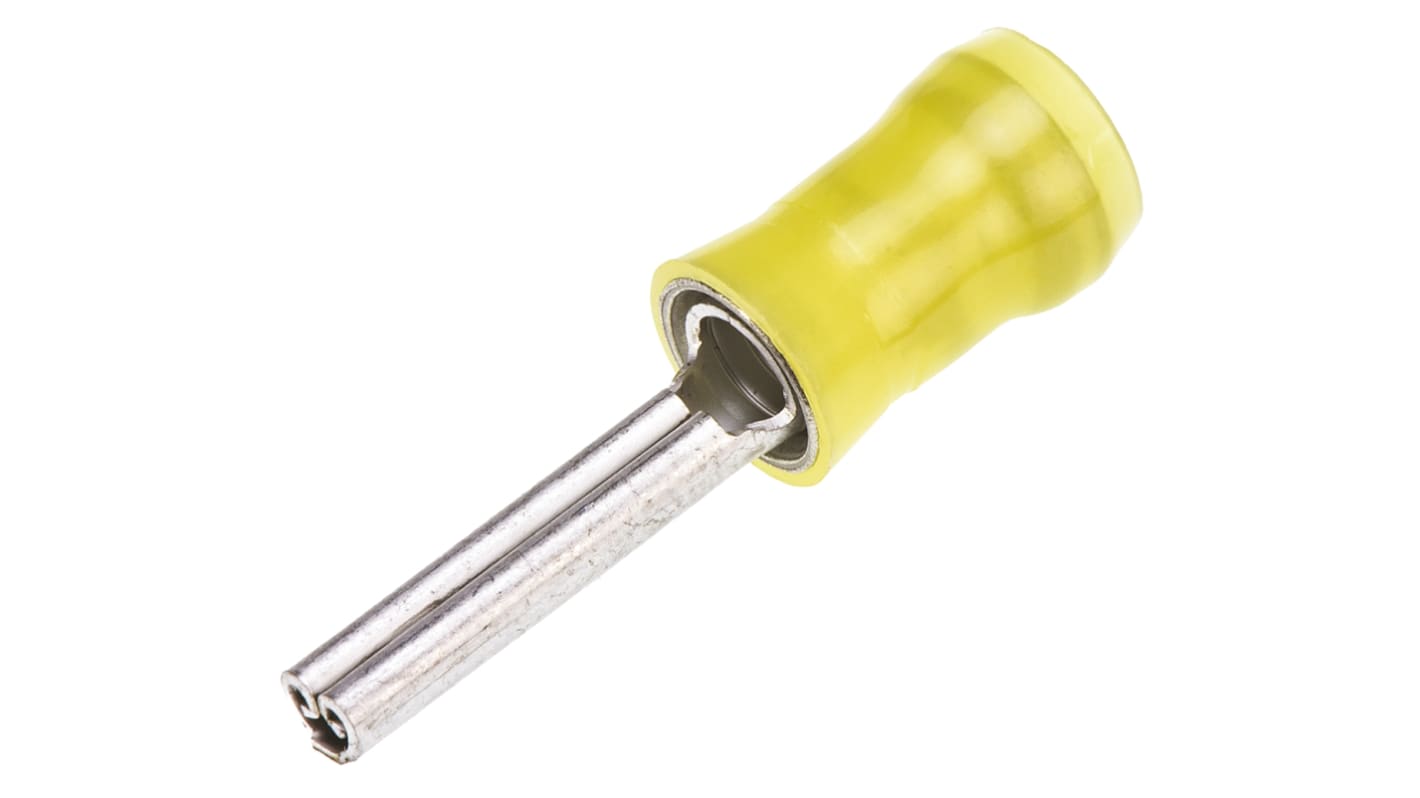

TE Connectivity PIDG Series Insulated Tin Plated Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter,

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity PIDG Wire Pin Crimp Terminals

PIDG (Pre-Insulated Diamond Grip) wire pin crimp terminals designed for uniform reliability in the most difficult circuit environments. These PIDG wire crimp pin terminals consist of a precision-formed high conductivity copper body and barrel. Inside the barrel are serrations which provide maximum contact and tensile strength after crimping. The wire barrel is surrounded with copper sleeve which provides improved wire insulation support and prevents fraying. An outer colour coded nylon sleeve aids wire size identification and a funnelled entry prevents turned back wire strands allowing fast wire insertion during high-speed production. The construction of these PIDG terminals and the use of specialised tool dies allows a uniform and reliable crimp to be produced. Available with various wire and pin sizes these PIDG wire pin crimp terminals offer a versatile solution to a wide range of wiring applications

Features and Benefits

• High conductivity copper body
• Copper sleeve for improved wire insulation support
• Serrations in wire barrel for maximum contact and tensile strength
• Colour coded sleeves for easy wire size and tooling identification
• Funnelled wire entry for easy wire insertion
• Design enables a reliable and uniform crimp

Applications

These PIDG wire terminals are suitable for use in a wide range of applications with many terminals meeting or exceeding the requirements of MIL-T-7928, Type II, Class 1 and 2. Applications include instruments/control, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace and appliances.

TE Connectivity PIDG Terminals

Specifications
Attribute Value
Series PIDG
Insulation Insulated
Insulation Material Nylon
Minimum Wire Size mm² 4mm²
Maximum Wire Size mm² 6mm²
Overall Length 33.5mm
Minimum Wire Size AWG 12AWG
Maximum Wire Size AWG 10AWG
Shrouded/Unshrouded Unshrouded
Pin Diameter 2.8mm
Colour Yellow
Contact Plating Tin
Contact Material Copper
635 In stock for FREE next working day delivery
Price Each (In a Pack of 5)
Was £0.65
£ 0.524
(exc. VAT)
£ 0.629
(inc. VAT)
Units
Per unit
Per Pack*
5 +
£0.524
£2.62
*price indicative
