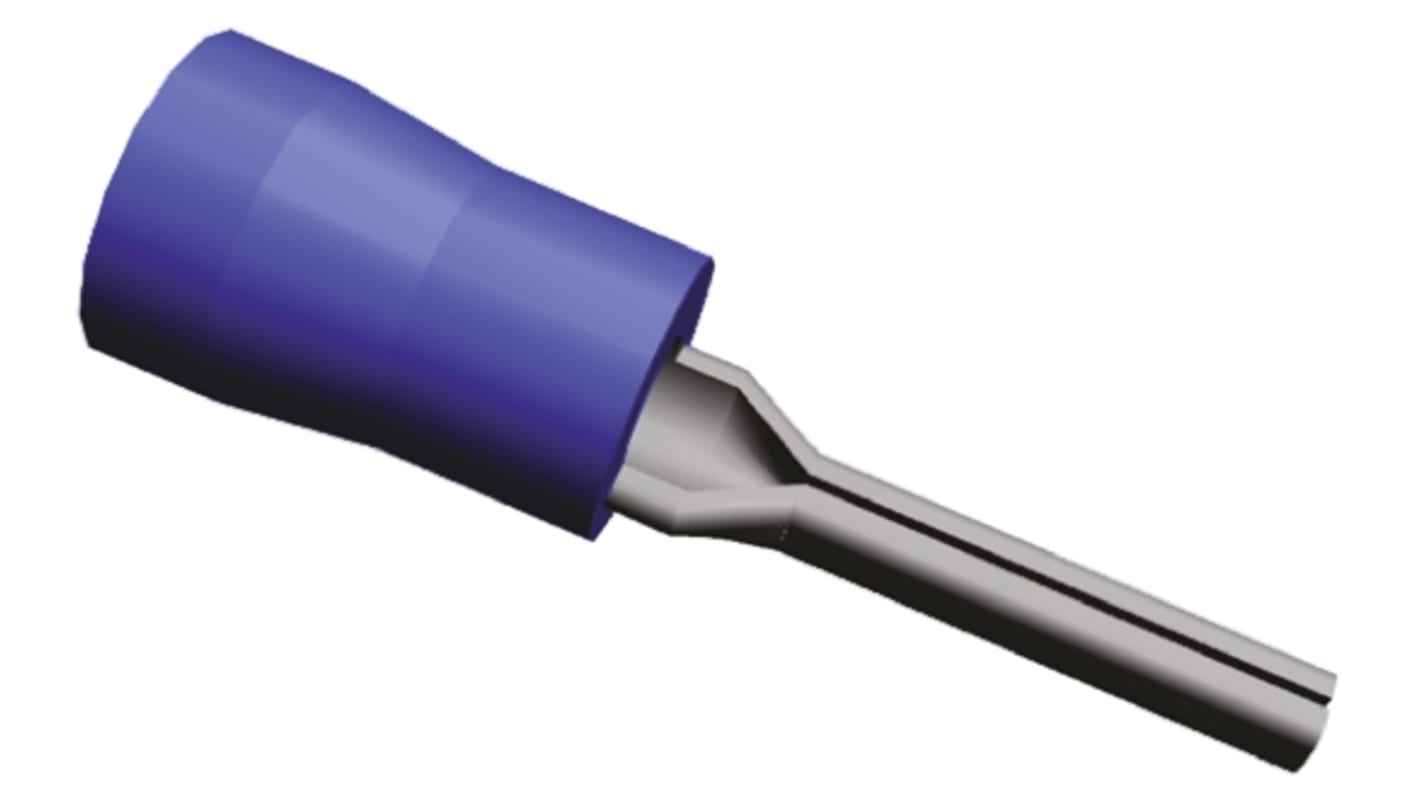

TE Connectivity, PLASTI-GRIP Insulated, Tin Crimp Pin Connector, 1mm² to 2.5mm², 16AWG to 14AWG, 1.8mm Pin Diameter,

RS Stock No.:: 680-5845
Mfr. Part No.:: 342166-1
Brand:: TE Connectivity

TE Connectivity, PLASTI-GRIP Insulated, Tin Crimp Pin Connector, 1mm² to 2.5mm², 16AWG to 14AWG, 1.8mm Pin Diameter,

500 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 100)

£0.835

(exc. VAT)

£1.002

(inc. VAT)

Units	Per unit	Per Pack*
100 - 400	£0.835	£83.50
500 +	£0.685	£68.50
*price indicative

RS Stock No.:: 680-5845
Mfr. Part No.:: 342166-1
Brand:: TE Connectivity

Technical Reference

Crimp, wire pin, plastigrip, blue

Legislation and Compliance

Product Details

TE Connectivity PLASTI-GRIP Wire Pin Crimp Terminals

PLASTI-GRIP wire pin crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP crimp pin terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funnelled entry on the wire barrel enables the stripped wire to be inserted more easily.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

Note

Not for use with double wire

TE Connectivity Plasti-Grip Terminals

Specifications

Attribute	Value
Series	PLASTI-GRIP
Insulation	Insulated
Insulation Material	PVC
Minimum Wire Size mm²	1mm²
Overall Length	20.57mm
Maximum Wire Size mm²	2.5mm²
Minimum Wire Size AWG	16AWG
Maximum Wire Size AWG	14AWG
Pin Diameter	1.8mm
Colour	Blue
Contact Plating	Tin

RS Stock No.:: 680-5845
Mfr. Part No.:: 342166-1
Brand:: TE Connectivity

Crimp, wire pin, plastigrip, blue

TE Connectivity, PLASTI-GRIP Insulated, Tin Crimp Pin Connector, 1mm² to 2.5mm², 16AWG to 14AWG, 1.8mm Pin Diameter,
