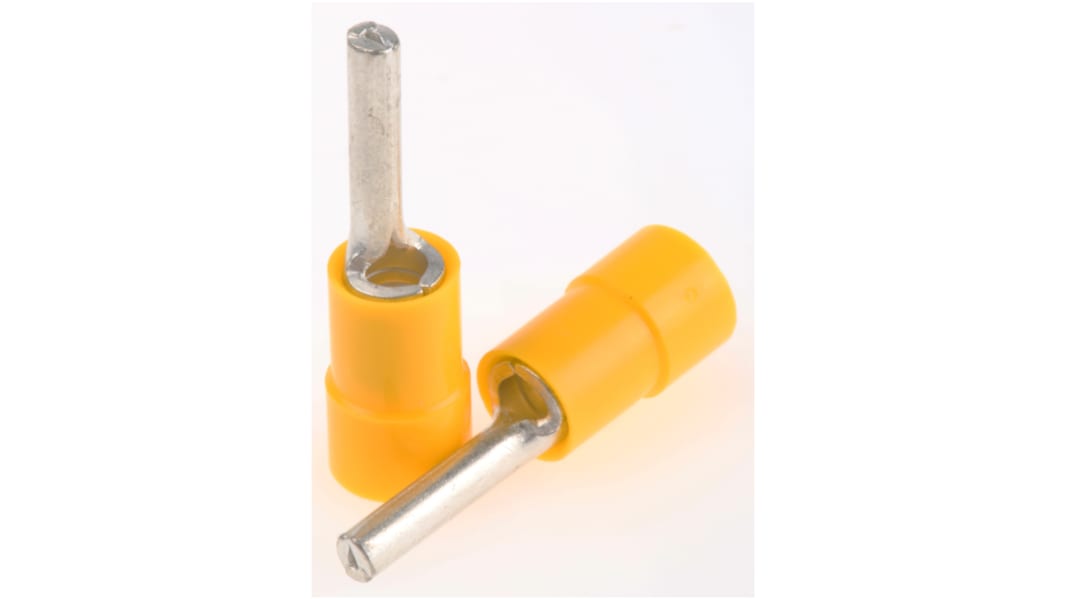

RS PRO Insulated, Tin Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter, 14mm Pin Length, Yellow
- RS Stock No.:
- 613-9665
- Brand:
- RS PRO
8200 In stock - FREE next working day delivery available
300 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 100)
£0.17
(exc. VAT)
£0.20
(inc. VAT)
| Units | Per unit | Per Pack* |
| 100 - 900 | £0.17 | £17.00 |
| 1000 - 2400 | £0.153 | £15.30 |
| 2500 - 4900 | £0.139 | £13.90 |
| 5000 - 9900 | £0.127 | £12.70 |
| 10000 + | £0.119 | £11.90 |
| *price indicative | ||
- RS Stock No.:
- 613-9665
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS PRO Insulated, Tin Crimp Pin Connector, 4 mm² to 6 mm², 12 AWG to 10 AWG, 2.8 mm Pin Diameter, 14 mm Pin Length, Yellow
Use this RS PRO pin connector for a fast and secure way to terminate electrical connections. Thanks to its air-tight crimp, it prevents oxygen and moisture from reaching the metal interior for protection against corrosion.
For a strong electrical connection, the crimp blade has contacts made of tin-plated copper. The end of the connector is insulated with vinyl to prevent chemical and mechanical damage. The yellow colour also makes it easy to colour-code your wiring, so you can quickly identify your wires at a glance.
This connector is suitable for use with wires ranging in size from 12 to 10 AWG (American Wire Gauge), making it a versatile choice for use in a range of applications. It's commonly used by electricians thanks to its versatility and ease of use.
For a strong electrical connection, the crimp blade has contacts made of tin-plated copper. The end of the connector is insulated with vinyl to prevent chemical and mechanical damage. The yellow colour also makes it easy to colour-code your wiring, so you can quickly identify your wires at a glance.
This connector is suitable for use with wires ranging in size from 12 to 10 AWG (American Wire Gauge), making it a versatile choice for use in a range of applications. It's commonly used by electricians thanks to its versatility and ease of use.
Features and Benefits
- Yellow colour
- Copper contact material
- Tin contact plating
- Insulated
- Vinyl insulation material
- Maximum wire size of 10 AWG (American Wire Gauge)
- Minimum wire size of 12 AWG (American Wire Gauge)
- Maximum wire size of 6 mm²
- Minimum wire size of 4 mm²
- Overall length of 27 mm
- Pin diameter of 2.8 mm
- Pin length of 14 mm
- Unshrouded
Approvals
UL (E125401)
Specifications
Attribute | Value |
|---|---|
| Insulation | Insulated |
| Insulation Material | Vinyl |
| Minimum Wire Size mm² | 4mm² |
| Maximum Wire Size mm² | 6mm² |
| Overall Length | 27mm |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Shrouded/Unshrouded | Unshrouded |
| Pin Diameter | 2.8mm |
| Pin Length | 14mm |
| Colour | Yellow |
| Contact Plating | Tin |
| Contact Material | Copper |
