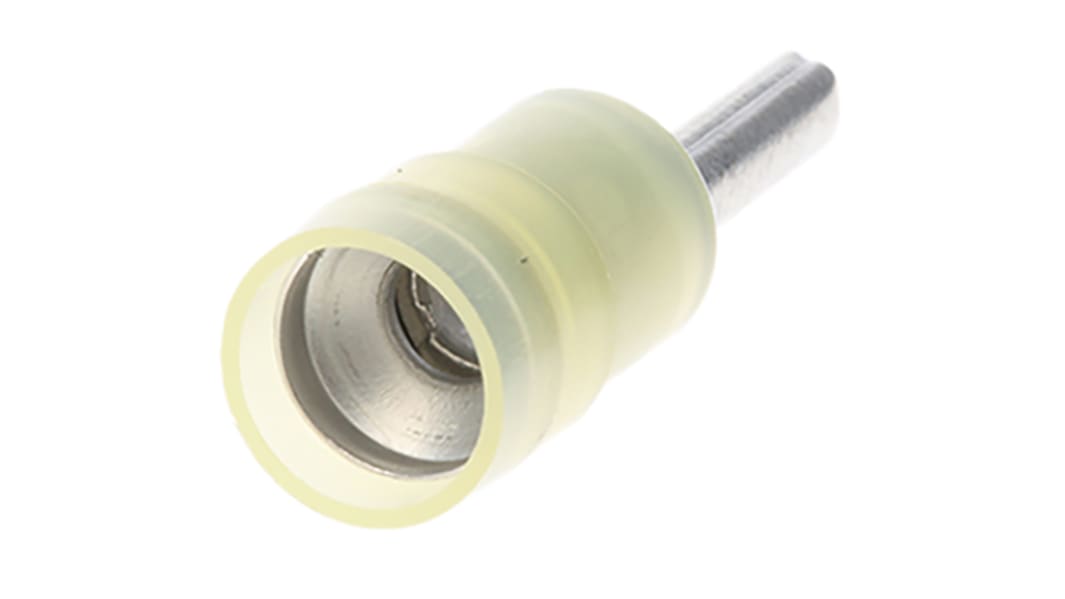

RS PRO Insulated Crimp Pin Connector, 4mm² to 6mm², 12AWG to 10AWG, 2.8mm Pin Diameter, 14mm Pin Length, Yellow

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS Pro Insulated Double Crimp Pin Terminals

RS Pro range of insulated double crimp pin terminals made from brass with a copper sleeved barrel. These connectors have nylon insulation with a sturdy design, for optimum convenience. Being available in various colours, there is a suitable version for your application. All models are highly reliable and excellent quality.

Features & Benefits

Red 0.5 - 1.5 mm²
Blue 1 - 2.6 mm²
Yellow 2.5 - 6.5 mm²

Note

Size quoted is pin length.

Approvals

UL Listed; UL Listed for Canada

//media.rs-online.com/t_line/L2674079-01.gif
//media.rs-online.com/t_line/L267409-01.gif

RS Pro Range

Specifications
Attribute Value
Insulation Insulated
Insulation Material Nylon
Minimum Wire Size mm² 4mm²
Maximum Wire Size mm² 6mm²
Overall Length 27mm
Minimum Wire Size AWG 12AWG
Shrouded/Unshrouded Unshrouded
Maximum Wire Size AWG 10AWG
Pin Diameter 2.8mm
Pin Length 14mm
Colour Yellow
Contact Material Copper
10100 In stock - FREE next working day delivery available
Price Each (In a Pack of 100)
£ 0.18
(exc. VAT)
£ 0.22
(inc. VAT)
Units
Per unit
Per Pack*
100 - 400
£0.18
£18.00
500 - 2400
£0.153
£15.30
2500 +
£0.135
£13.50
*price indicative
