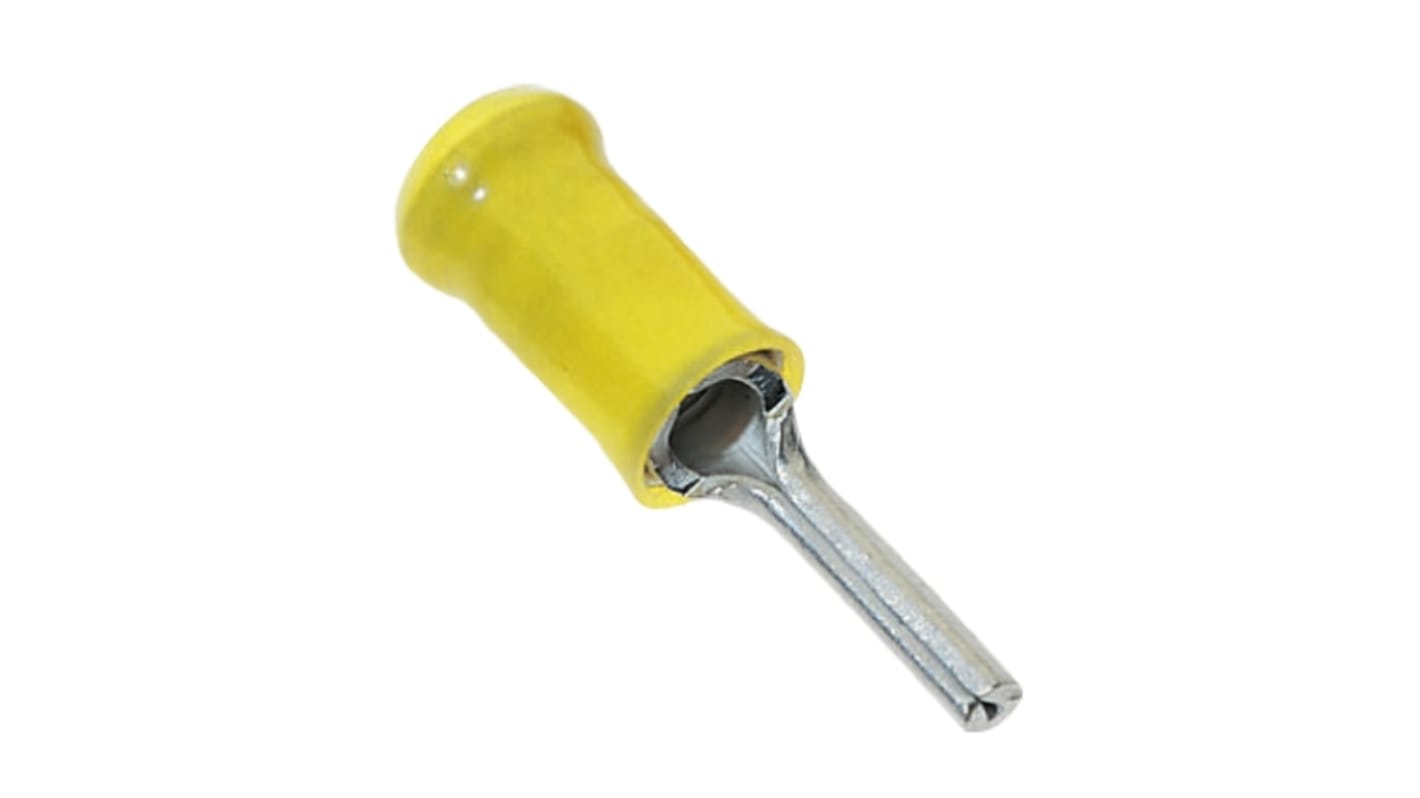

JST, FVPC Insulated Crimp Pin Connector, 2.6mm² to 6.6mm², 12AWG to 10AWG, 2.7mm Pin Diameter, 14mm Pin Length, Yellow
- RS Stock No.:
- 166-7405
- Mfr. Part No.:
- FVWSPC-5.5(LF)
- Brand:
- JST
Available to back order for despatch 07/08/2024
Added
Price Each (In a Box of 500)
£0.197
(exc. VAT)
£0.236
(inc. VAT)
Units | Per unit | Per Box* |
500 + | £0.197 | £98.50 |
*price indicative |
- RS Stock No.:
- 166-7405
- Mfr. Part No.:
- FVWSPC-5.5(LF)
- Brand:
- JST
Technical Reference
Legislation and Compliance
Product Details
The JST Pin Terminal
The JST PC type Pin Terminals are manufactured from high-quality oxygen free cooper to ensure electro conductivity and inherent toughness.
Features & Benefits
Straight entry
Oxygen free cooper with excellent electrical characteristics
High strengths brazing
JST Insulated Crimp Terminals
Specifications
Attribute | Value |
---|---|
Series | FVPC |
Insulation | Insulated |
Insulation Material | Vinyl |
Minimum Wire Size mm² | 2.6mm² |
Maximum Wire Size mm² | 6.6mm² |
Overall Length | 27.5mm |
Minimum Wire Size AWG | 12AWG |
Maximum Wire Size AWG | 10AWG |
Pin Diameter | 2.7mm |
Pin Length | 14mm |
Colour | Yellow |
