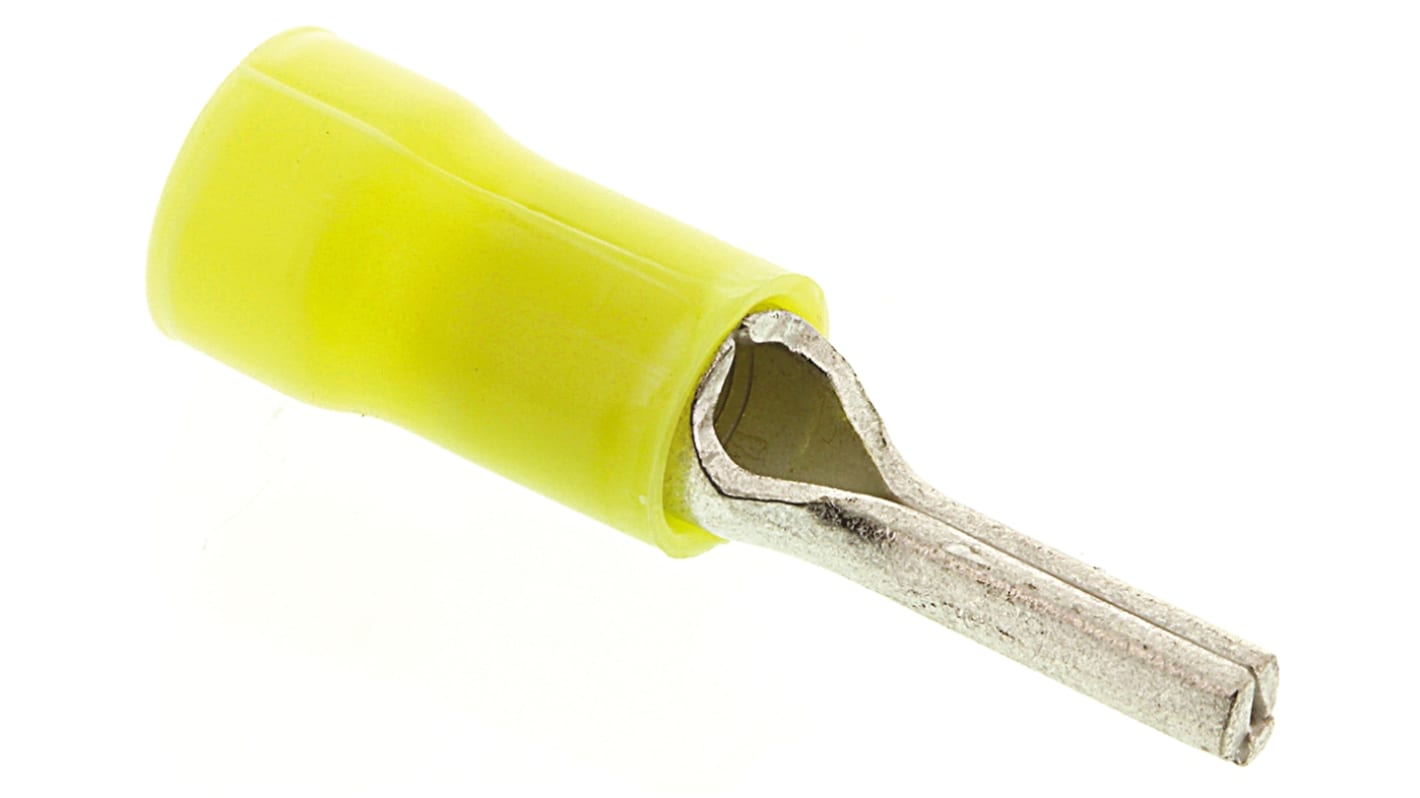

TE Connectivity PLASTI-GRIP Series Insulated Tin Plated Crimp Pin Connector, 2.6mm² to 6.6mm², 12AWG to 10AWG, 2.5mm

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity PLASTI-GRIP Wire Pin Crimp Terminals

PLASTI-GRIP wire pin crimp terminals made of high conductivity tin plated copper with an expanded high dielectric strength 94V-0 rated vinyl insulation sleeve. The inner barrel of these PLASTI-GRIP crimp pin terminals is serrated in order to provide maximum electrical contact and tensile strength after crimping. The funnelled entry on the wire barrel enables the stripped wire to be inserted more easily.

Red 0.25 - 1.6 mm²
Blue 1.0 - 2.6 mm²
Yellow 2.7 - 6.6 mm²

Note

Not for use with double wire

TE Connectivity Plasti-Grip Terminals

Temperature range: PVC -25°C to +90°C
  Nylon -55°C to +105°C
Termination material: Tin plated Copper
Termination insulation: Rings, spades, wire pins
  6.35mm blades, splices PVC
  6.35mm receptacles Nylon 6.6
  (including shrouded)
Specifications
Attribute Value
Series PLASTI-GRIP
Insulation Insulated
Insulation Material Nylon
Minimum Wire Size mm² 2.6mm²
Maximum Wire Size mm² 6.6mm²
Overall Length 29.2mm
Minimum Wire Size AWG 12AWG
Maximum Wire Size AWG 10AWG
Shrouded/Unshrouded Unshrouded
Pin Diameter 2.5mm
Pin Length 9.9mm
Colour Yellow
Contact Plating Tin
Contact Material Copper
1700 In stock for FREE next working day delivery
Price Each (In a Pack of 100)
Was £0.24
£ 0.212
(exc. VAT)
£ 0.254
(inc. VAT)
Units
Per unit
Per Pack*
100 +
£0.212
£21.20
*price indicative
