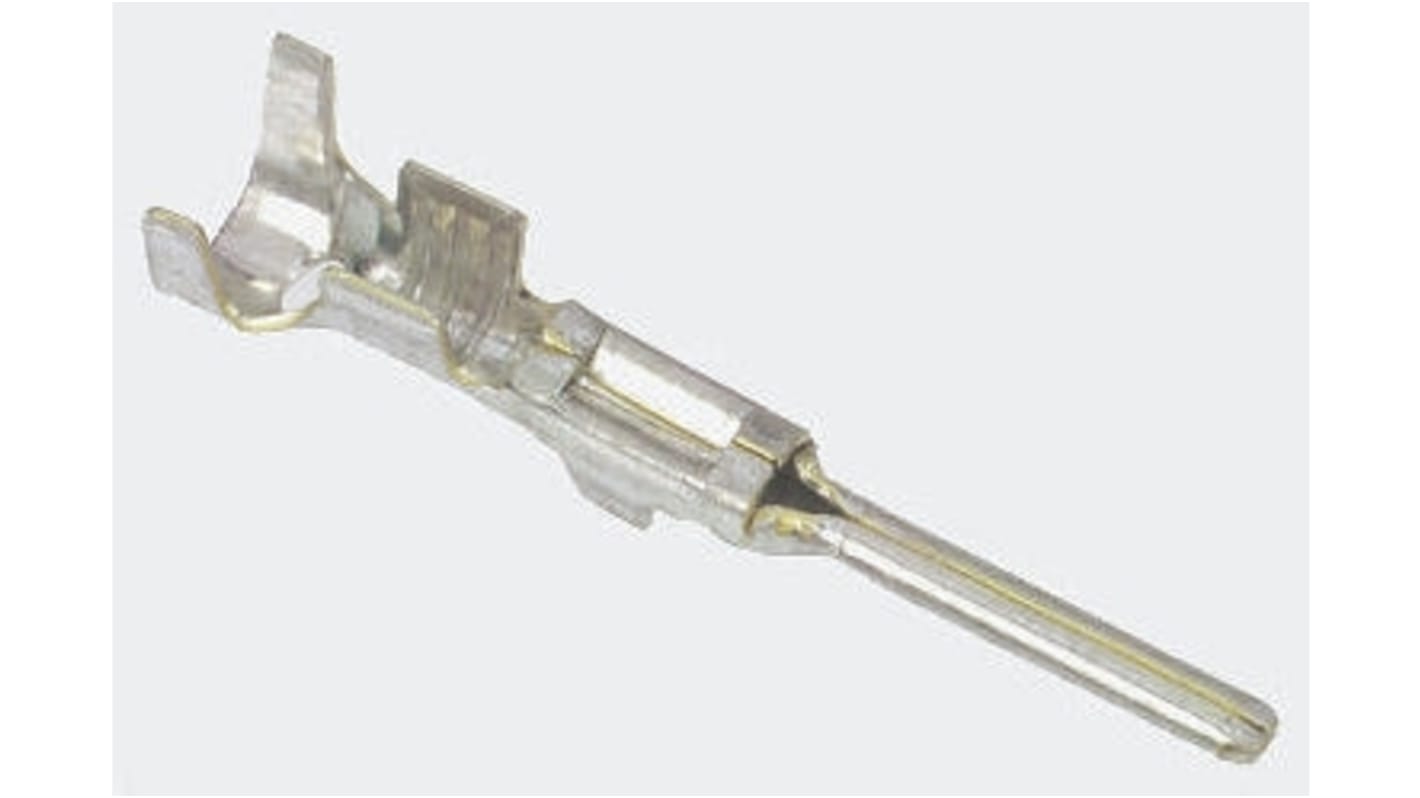

TE Connectivity MINI-MIC Series Male Crimp Terminal, 17AWG Min, 15AWG Max
- RS Stock No.:
- 136-1733
- Mfr. Part No.:
- 183024-1
- Brand:
- TE Connectivity
5000 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 5000)
£0.11
(exc. VAT)
£0.13
(inc. VAT)
| Units | Per unit | Per Bag* |
| 5000 + | £0.11 | £550.00 |
| *price indicative | ||
- RS Stock No.:
- 136-1733
- Mfr. Part No.:
- 183024-1
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
TE Connectivity SUPERSEAL Series 1.5 Tab and Receptacle Contacts
From TE Connectivity, this range of tab and receptacle style crimp contacts are for use with the SUPERSEAL series of automotive wire connectors. The SUPERSEAL crimp contacts utilise a 2-step positive lock when the contact is inserted into housing, and can maintain an IP67 sealing if used in conjunction with appropriate wire seals (see stock number 314-1176.)
The crimp contacts in this range are constructed from tin plated brass for the tabs and tin plated phosphor bronze for the receptacles.
The range also includes appropriate tooling.
The crimp contacts in this range are constructed from tin plated brass for the tabs and tin plated phosphor bronze for the receptacles.
The range also includes appropriate tooling.
• 368-4500 (9-1579007-1) for the SUPER-SEAL 1.5; Tab and Receptacle Contacts
• 368-4516 (785084-1) for SUPER-SEAL 1.5 (secondary lock of TAB Connector), see stock number 314-1182 typical
• Extraction tool 1 removes the contact from its primary location, extraction tool 2 removes the contact from the secondary lock.
• 368-4516 (785084-1) for SUPER-SEAL 1.5 (secondary lock of TAB Connector), see stock number 314-1182 typical
• Extraction tool 1 removes the contact from its primary location, extraction tool 2 removes the contact from the secondary lock.
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| For Use With | AMP SUPERSEAL 1.5 Connector Housing |
| Series | MINI-MIC |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Termination Method | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size AWG | 17AWG |
| Maximum Wire Size AWG | 15AWG |
| Contact Material | Brass |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
