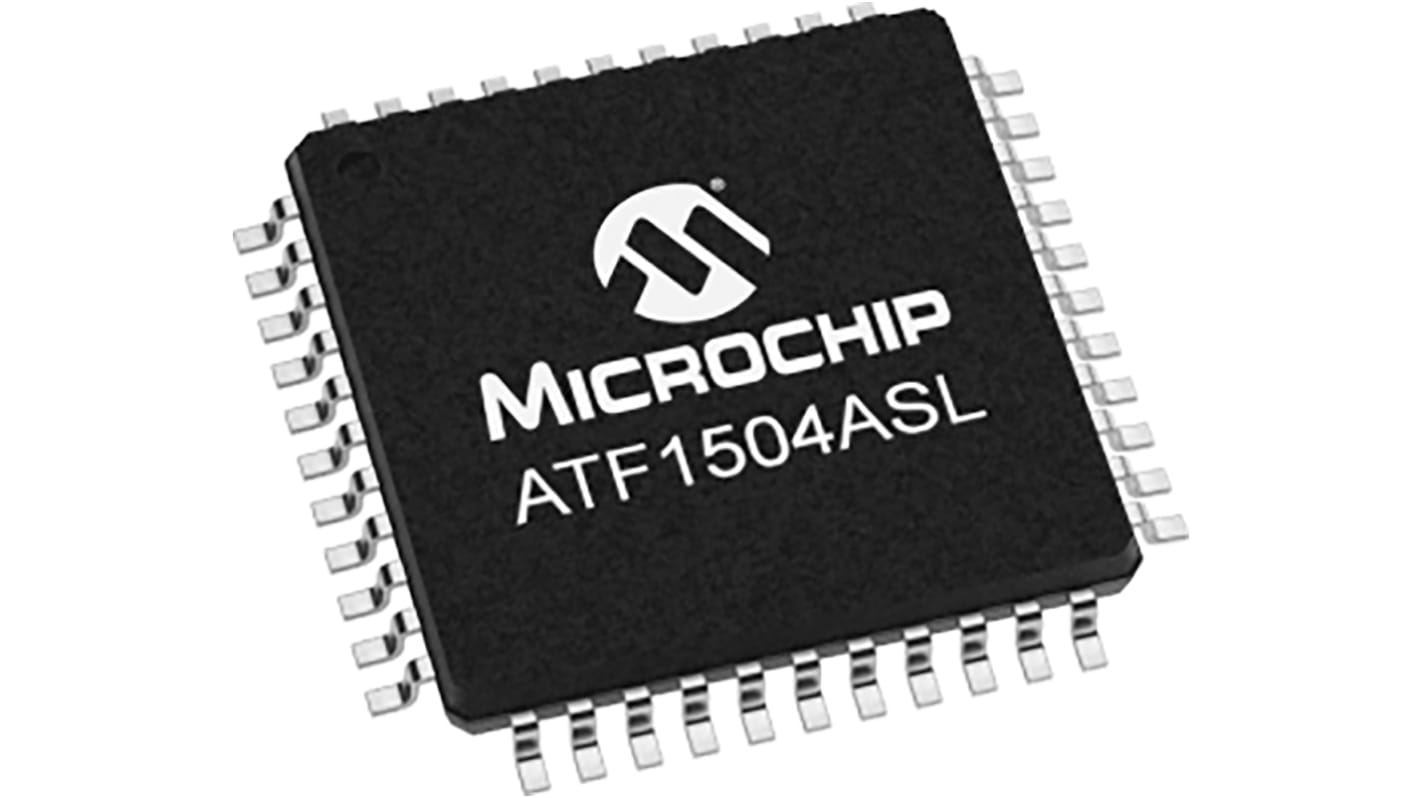

Microchip ATF1504ASL-25AU44, CPLD Atmel EEPROM 64 Cells, 32 I/O, 10 Labs, 7.5ns, ISP, 44-Pin TQFP
- RS Stock No.:
- 177-3433
- Mfr. Part No.:
- ATF1504ASL-25AU44
- Brand:
- Microchip
320 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 160)
£4.36
(exc. VAT)
£5.23
(inc. VAT)
| Units | Per unit | Per Tray* |
| 160 + | £4.36 | £697.60 |
| *price indicative | ||
- RS Stock No.:
- 177-3433
- Mfr. Part No.:
- ATF1504ASL-25AU44
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
The Atmel ®ATF1504AS(L) is a high-performance, high-density Complex Programmable Logic Device (CPLD) which utilizes the Atmel proven electrically-erasable memory technology. With 64 logic macrocells and up to 68 inputs, it easily integrates logic from several TTL, SSI, MSI, LSI, and classic PLDs.
High-density, High-performance, Electrically-erasable Complex Programmable
Logic Device
64 Macrocells
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell
44, 84, 100 Pins
7.5ns Maximum Pin-to-pin Delay
Registered Operation up to 125MHz
Enhanced Routing Resources
In-System Programmability (ISP) via JTAG
Flexible Logic Macrocell
D/T/Latch Configurable Flip-flops
Global and Individual Register Control Signals
Global and Individual Output Enable
Programmable Output Slew Rate
Logic Device
64 Macrocells
5 Product Terms per Macrocell, Expandable up to 40 per Macrocell
44, 84, 100 Pins
7.5ns Maximum Pin-to-pin Delay
Registered Operation up to 125MHz
Enhanced Routing Resources
In-System Programmability (ISP) via JTAG
Flexible Logic Macrocell
D/T/Latch Configurable Flip-flops
Global and Individual Register Control Signals
Global and Individual Output Enable
Programmable Output Slew Rate
Specifications
Attribute | Value |
|---|---|
| Family Name | Atmel |
| Number of Macro Cells | 64 |
| Number of User I/Os | 32 |
| Memory Type | EEPROM |
| Number of Logic Blocks/Elements | 10 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 44 |
| Minimum Operating Temperature | -40 °C |
| Propagation Delay | 7.5ns |
| Individual Output Enable Control | Yes |
| Dimensions | 10.1 x 10.1 x 1.05mm |
| Height | 1.05mm |
| Maximum Operating Supply Voltage | 3.6 V |
| Length | 10.1mm |
| Minimum Operating Supply Voltage | 3 V |
| Re-programmability Support | Yes |
| Width | 10.1mm |
