- RS Stock No.:
- 177-1500
- Mfr. Part No.:
- ATF16V8B-10JU
- Brand:
- Microchip
- RS Stock No.:
- 177-1500
- Mfr. Part No.:
- ATF16V8B-10JU
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details

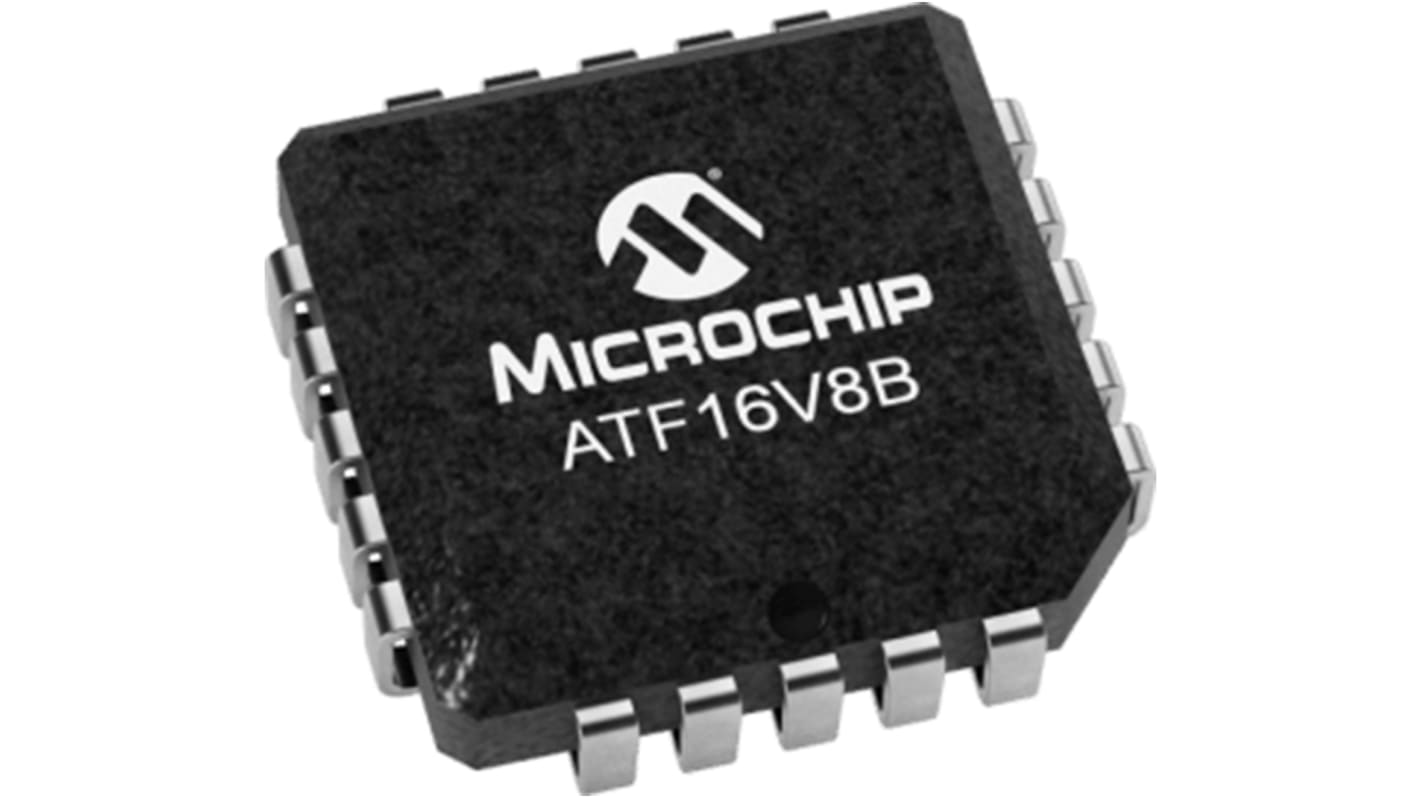

The Atmel ATF16V8B(QL) is a high-performance CMOS Electrically-Erasable Programmable Logic Device (EE PLD) that utilizes the Atmel proven electrically-erasable Flash memory technology. All speed ranges are specified over the full 5.0V 10% range for industrial temperature range.The ATF16V8BQL provides edge-sensing low-power PLD solution with low standby power consumption (5mA typical). The ATF16V8BQL powers down automatically to the low-power mode through the Input Transition Detection (ITD) circuitry when the device is idle.
Features:
Industry-standard Architecture
Emulates Many 20-pin PALs®
Low-cost Easy-to-use Software Tools
High-speed Electrically-erasable Programmable Logic Devices
10ns Maximum Pin-to-pin Delay
Automatic 5mA Standby for ATF16V8BQL
CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-up Resistors
Advanced Flash Technology
Reprogrammable
100% Tested
High-reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
Industry-standard Architecture
Emulates Many 20-pin PALs®
Low-cost Easy-to-use Software Tools
High-speed Electrically-erasable Programmable Logic Devices
10ns Maximum Pin-to-pin Delay
Automatic 5mA Standby for ATF16V8BQL
CMOS and TTL Compatible Inputs and Outputs
Input and I/O Pull-up Resistors
Advanced Flash Technology
Reprogrammable
100% Tested
High-reliability CMOS Process
20 Year Data Retention
100 Erase/Write Cycles
2,000V ESD Protection
Specifications
Attribute | Value |
---|---|
Family Name | ATF16V8B |
Number of Macro Cells | 8 |
Number of User I/Os | 18 |
Memory Type | Flash |
Number of Logic Blocks/Elements | 8 |
In System Programmability | In System |
Mounting Type | Surface Mount |
Package Type | PLCC |
Minimum Operating Temperature | -40 °C |
Pin Count | 20 |
Maximum Operating Temperature | +85 °C |
Propagation Delay | 10ns |
Individual Output Enable Control | Yes |
Dimensions | 9.04 x 9.04 x 4.06mm |
Height | 4.06mm |
Maximum Operating Supply Voltage | 5.5 V |
Length | 9.04mm |
Re-programmability Support | Yes |
Minimum Operating Supply Voltage | 4.5 V |
Width | 9.04mm |
Propagation Delay Test Condition | 50pF |
