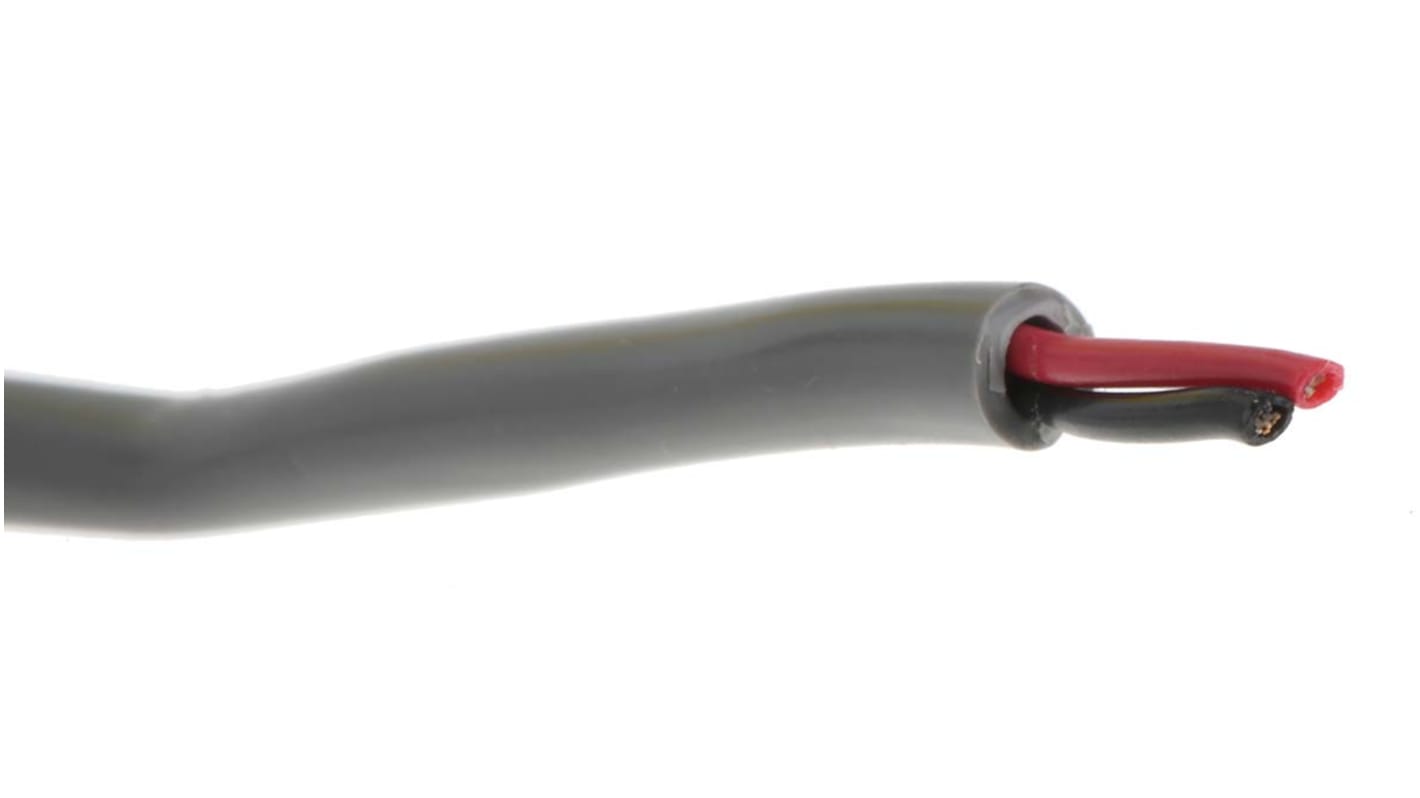

Alpha Wire Alpha Essentials Control Cable, 2 Cores, 0.35 mm², Unscreened, 30m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 828-2250
- Mfr. Part No.:
- 1172C SL005
- Brand:
- Alpha Wire
161 In stock - FREE next working day delivery available
15 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 30 Metre(s)
£37.66
(exc. VAT)
£45.19
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £37.66 | £1.255 |
| 5 - 9 | £36.27 | £1.209 |
| 10 + | £34.84 | £1.161 |
| *price indicative | ||
- RS Stock No.:
- 828-2250
- Mfr. Part No.:
- 1172C SL005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
Product Details
Belden Alpha Wire Grey Control Cable, 22AWG, 30m Length - Alpha Essentials Series - 1172C SL005
Use this robust control cable from Belden's Alpha Wire range for analogue and digital signal transmission in your control systems. Its two conductors are made of highly conductive tinned copper to deliver a secure and effective connection. The flame-retardant outer jacket helps keep your workplace safe by preventing the spread of flames in the event of a fire. As this cable is classified as LSZH (low-smoke, zero-halogen), it's environmentally friendly and doesn't emit toxic fumes in a fire. You'll find wires like this one commonly used in commercial audio systems.
Features & Benefits
• Minimum bend radius of 10 times the cable diameter for easy installation in tight spaces and around corners
• Includes drain wire that carries excess voltage to the ground for enhanced electrical safety
• Rating of 300V means it's suitable for low-voltage applications
• Ample cable length of 30m for use on numerous jobs
• Includes drain wire that carries excess voltage to the ground for enhanced electrical safety
• Rating of 300V means it's suitable for low-voltage applications
• Ample cable length of 30m for use on numerous jobs
Applications
• Mining industry
• Robotics and automation equipment
• Construction sites
• Robotics and automation equipment
• Construction sites
What's the current rating of this cable?
The cable has a current rating of 1.5A per conductor. This means that it's energy-efficient and won't overheat.
Specifications
Attribute | Value |
|---|---|
| Series | Alpha Essentials |
| Number of Cores | 2 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Unscreened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 4.17mm |
| Sheath Material | PVC |
| Standards Met | CE, CSA, UL |
| Voltage Rating | 300 V |
| Drain Wire | No |
| Minimum Bend Radius | 10 x Diameter |
| Screen Type | Unscreened |
| Maximum Operating Temperature | +80°C |
| Conductor Material | Tinned Copper |
| Core Strands | 7/0.25 mm |
| Minimum Operating Temperature | -20°C |
| Fire Behaviour | Halogen Free |
| Insulation Material | PVC |
| Conductor Resistance | 16 Ω/1000ft |
