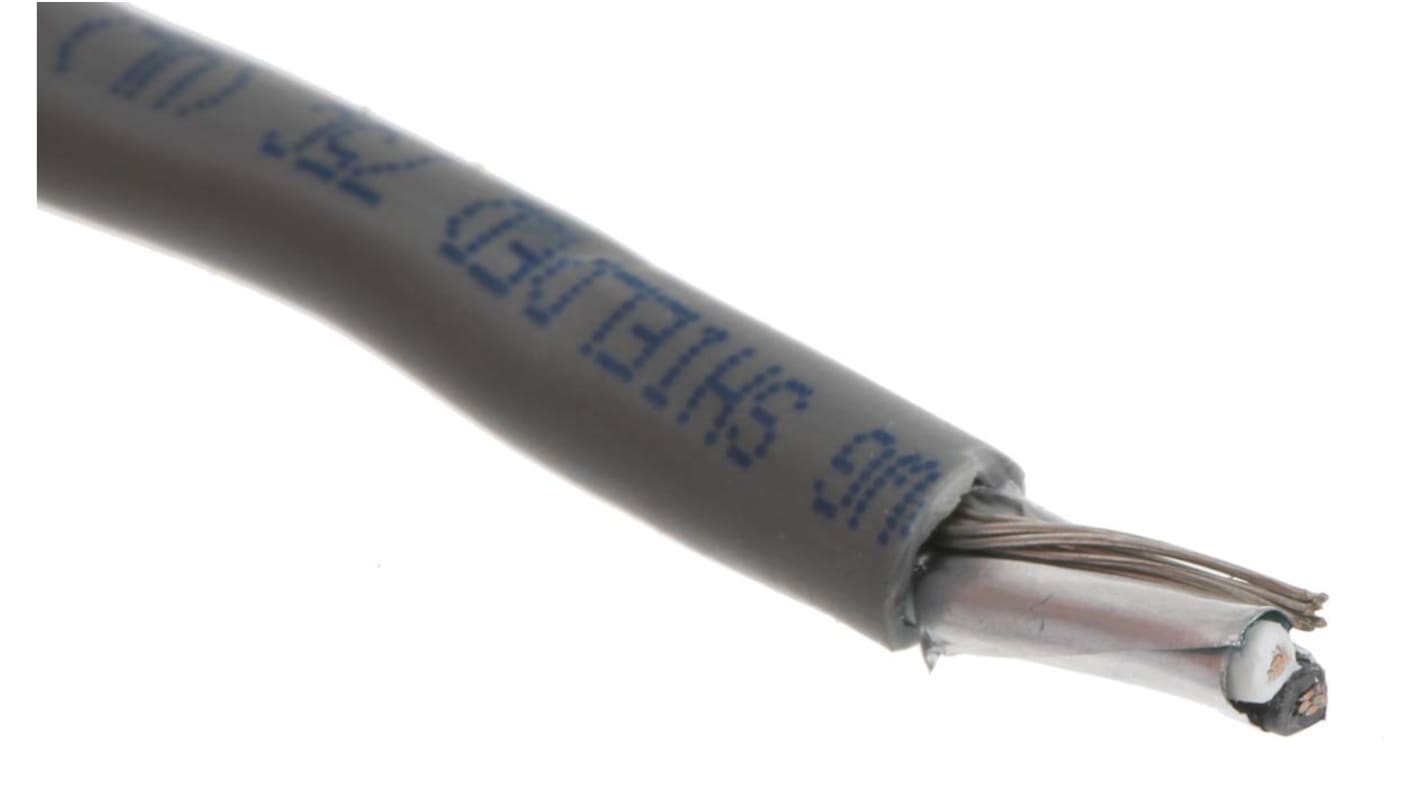

Alpha Wire Alpha Essentials Control Cable, 2 Cores, 0.35 mm², Screened, 30m, Grey PVC Sheath, 22 AWG
- RS Stock No.:
- 111-9177
- Mfr. Part No.:
- 2401C SL005
- Brand:
- Alpha Wire
215 In stock - FREE next working day delivery available
11 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 30 Metre(s)
£28.86
(exc. VAT)
£34.63
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £28.86 | £0.962 |
| 5 - 9 | £27.79 | £0.926 |
| 10 + | £26.66 | £0.889 |
| *price indicative | ||
- RS Stock No.:
- 111-9177
- Mfr. Part No.:
- 2401C SL005
- Brand:
- Alpha Wire
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Belden Alpha Wire Control Cable, Tinned Copper Conductors, PE Insulation - Alpha Essentials Series - 2401C SL005
Use this control cable from Belden's Alpha Wire range to transmit signals and data in your security system. Its PVC outer jacket provides protection against moisture and dust, which makes it suitable for use in demanding industrial environments. This material also offers insulation, so reduces the risk of electric shocks. The cable comes on a 30m reel and is easy to cut to the length you need for your application.
Features & Benefits
• Includes a drain wire for safe grounding of electrical current
• Flexible cable with a bend radius of 10 times its diameter for easy installation
• Foil screen reduces the risk of crosstalk for interference-free communication
• Flexible cable with a bend radius of 10 times its diameter for easy installation
• Foil screen reduces the risk of crosstalk for interference-free communication
Applications
• Automotive manufacturing
• Warehouses and storage facilities
• Offices and commercial buildings
• Warehouses and storage facilities
• Offices and commercial buildings
What's the diameter of this cable?
This cable has a slim outer diameter of 4.27mm, so it's easy to route through narrow conduits.
Specifications
Attribute | Value |
|---|---|
| Series | Alpha Essentials |
| Number of Cores | 2 |
| Cross Sectional Area | 0.35 mm² |
| Screened/Unscreened | Screened |
| Length | 30m |
| Sheath Colour | Grey |
| American Wire Gauge | 22 AWG |
| Outer Diameter | 4.27mm |
| Sheath Material | PVC |
| Standards Met | CE, CSA, UL |
| Conductor Resistance | 16.3 Ω/1000ft |
| Insulation Material | PE |
| Minimum Bend Radius | 10 x Diameter |
| Minimum Operating Temperature | -20°C |
| Core Strands | 7/0.25 mm |
| Conductor Material | Tinned Copper |
| Voltage Rating | 300 V |
| Drain Wire | Yes |
| Screen Type | Foil |
| Maximum Operating Temperature | +75°C |
- RS Stock No.:
- 111-9177
- Mfr. Part No.:
- 2401C SL005
- Brand:
- Alpha Wire
