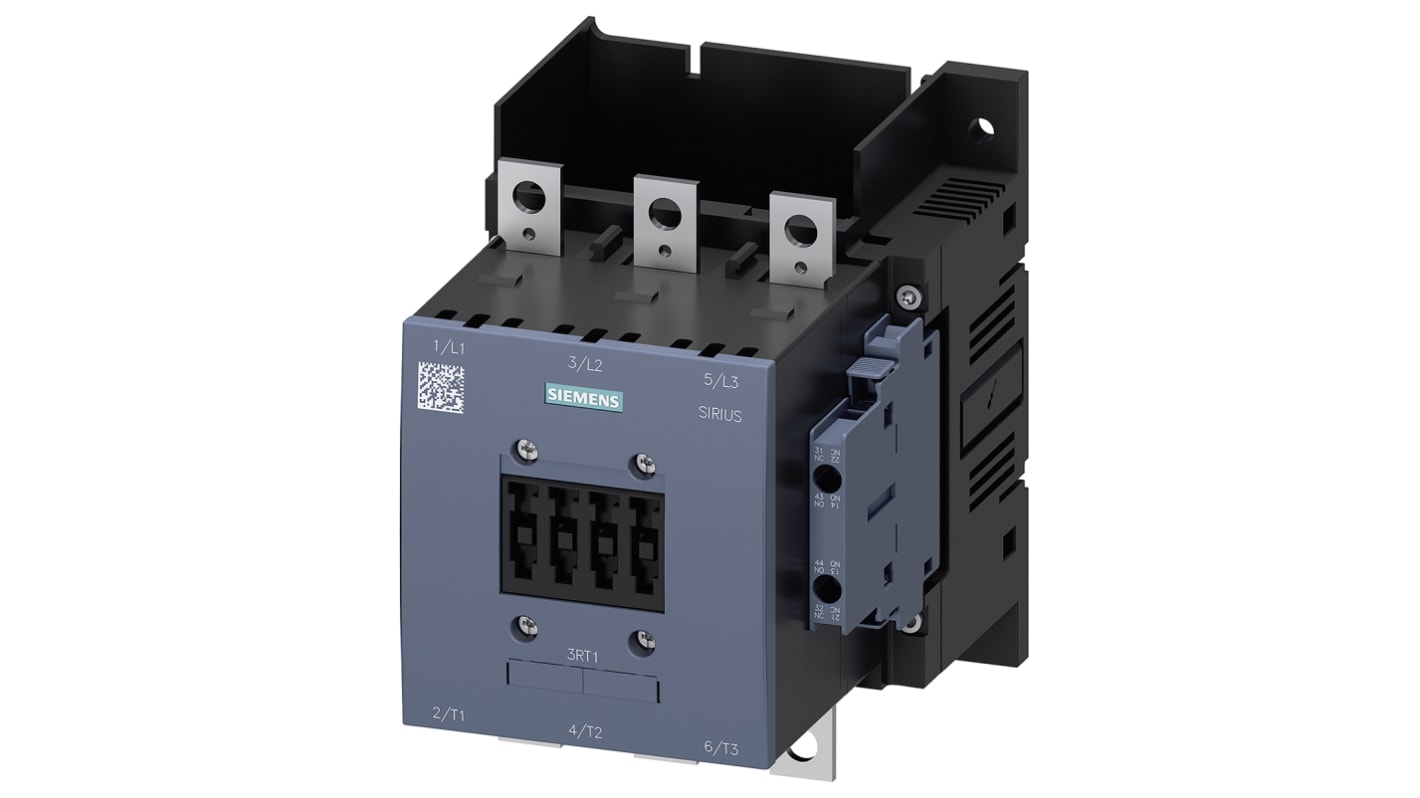

Siemens 3RT1 Series Contactor, 110 V ac Coil, 3-Pole, 115 A, 55 kW, 3NO, 400 V ac
- RS Stock No.:
- 861-3011
- Mfr. Part No.:
- 3RT1054-6AF36
- Brand:
- Siemens
5 In stock - FREE next working day delivery available
2 available from Europe for delivery within 2 working day(s).
Added
Price Each
£432.15
(exc. VAT)
£518.58
(inc. VAT)
| Units | Per unit |
| 1 + | £432.15 |
- RS Stock No.:
- 861-3011
- Mfr. Part No.:
- 3RT1054-6AF36
- Brand:
- Siemens
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Product Details
Siemens Contactor, Screw Terminals, 7W Power Loss - SIRIUS Classic Series - 3RT1054-6AF36
For safe control of your high-current devices, choose this contactor from Siemens. It falls into the AC-3 utilisation category, which means it's built for motor-switching applications. This device's contacts open and close rapidly to prevent damage to your equipment caused by electrical arcs. The tough thermoplastic housing provides resistance to impact and corrosion, making this a suitable choice for use in harsh environments. For electrical safety, it comes with a varistor to protect your circuits from voltage spikes. DIN rail mounting makes installation easy, as you won't need any tools. You'll find this contactor used in motor control applications in the manufacturing industry.
Features & Benefits
• Can operate on AC and DC networks for versatility
• Wide operating temperature range between -25°C and +60°C for use in demanding conditions
• Power rating of 55kW makes it suitable for heavy-duty applications
• Integrated auxiliary contacts to control secondary functions
• Mechanical life of 10,000,000 operating cycles for long-term operation
• Wide operating temperature range between -25°C and +60°C for use in demanding conditions
• Power rating of 55kW makes it suitable for heavy-duty applications
• Integrated auxiliary contacts to control secondary functions
• Mechanical life of 10,000,000 operating cycles for long-term operation
Is this contactor waterproof?
No, this contactor isn't waterproof so you must keep it away from sources of moisture to ensure it performs properly.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 110 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 400 V ac |
| Contact Current Rating | 115 A |
| Range | SIRIUS |
| Power Rating | 55 kW |
| Series | 3RT1 |
| Normal State Configuration | 3NO |
| Auxiliary Contact Configuration | 2NO + 2NC |
| Number Of Auxiliary Contacts | 4 |
| Terminal Type | Screw |
| Length | 120mm |
| Width | 172mm |
| Depth | 170mm |
| Maximum Operating Temperature | +60°C |
| Mounting Style | Screw Mount, Snap-on Mount |
| Minimum Operating Temperature | -25°C |
| Load Current | 125A |
| Pole and Throw Configuration | 3PST |
| Control Voltage | 110 → 127 V |
