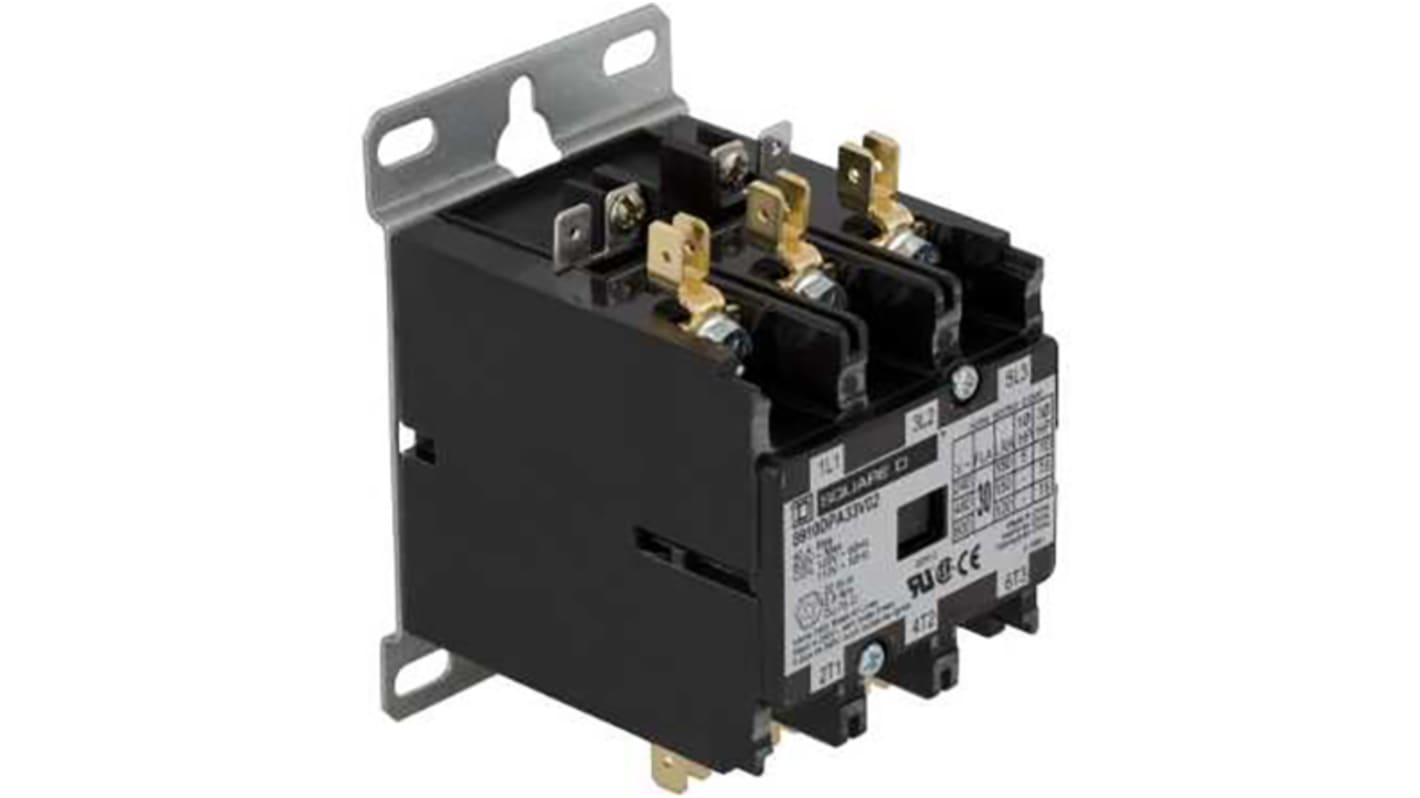

Schneider Electric 3 Pole Contactor - 25 A, 230 V ac Coil

Technical Reference
Legislation and Compliance
Non Compliant
COO (Country of Origin): CN
Product Details

Definite Purpose Contactors

Definite Purpose Contactors are ideal for heating, air conditioning, refrigeration, data processing and food service equipment.
Auxiliary contact modules snap on either side of the Type DPA contactors.

Available 1P, 2P, 3P and 4P
DP Contactors Rated 100,000 Operations
DPA Contactors Rated 200,000 Operations
Low Coil VA

Schneider Electric NEMA Style Contactors

Specifications
Attribute Value
Coil Voltage 230 V ac
Number of Poles 3
Contact Current Rating 25 A
Series DPA
Contact Voltage Rating 600 V ac
Terminal Type Quick Connect
Maximum Operating Temperature +65°C
Depth 76mm
Width 60.2mm
Length 58.7mm
Minimum Operating Temperature 0°C
Available to back order for despatch 14/04/2020
Price Each
£ 70.00
(exc. VAT)
£ 84.00
(inc. VAT)
Units
Per unit
1 +
£70.00
