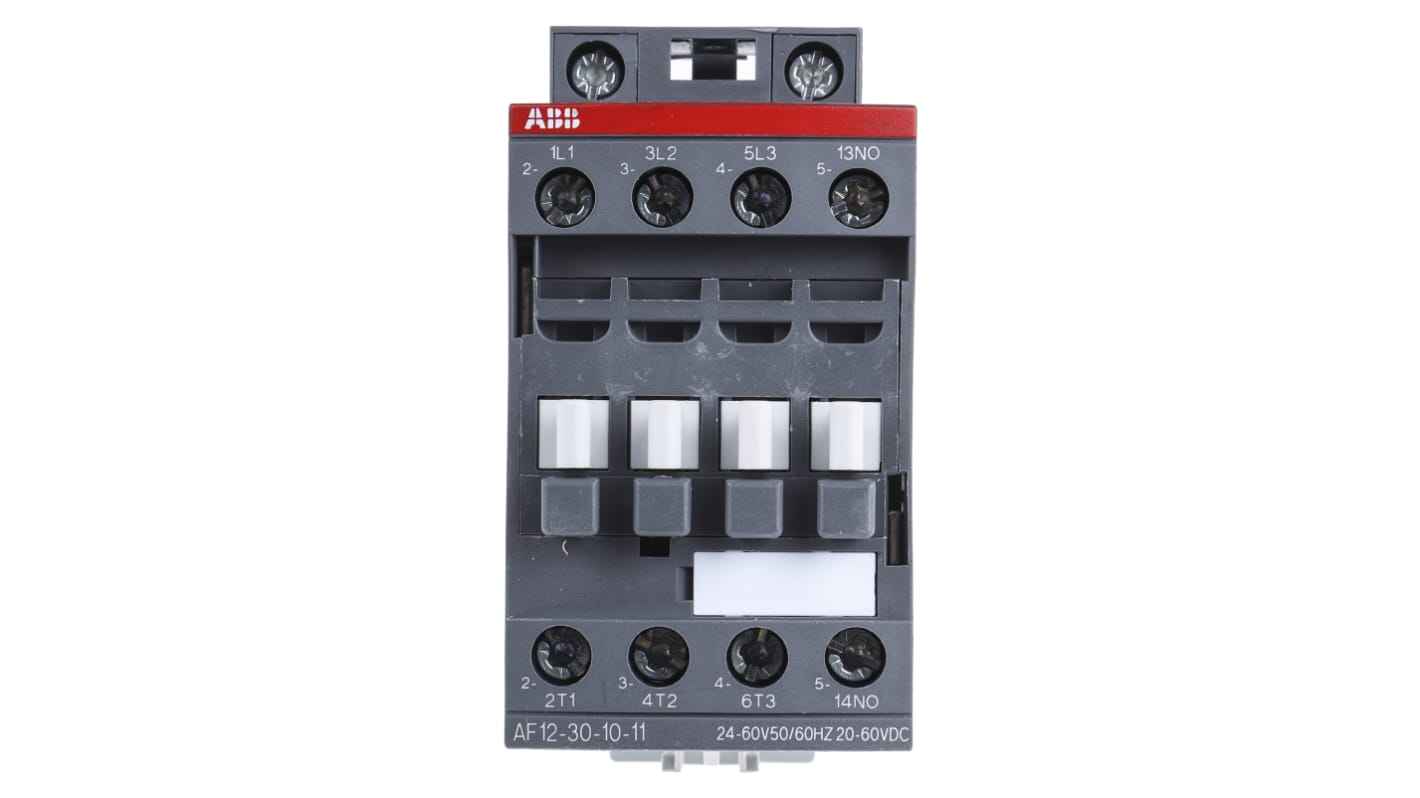

ABB 3 Pole Contactor - 28 A, 24 V ac/dc Coil, AF Range, 3NO, 5.5 kW

  • RS Stock No. 764-8996
  • Mfr. Part No. AF12-30-10-11
  • Brand ABB
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

AF Range Contactors, 3 Pole

AF contactors are AC/DC operated
AF09-AF38 contactors include an electronic coil interface accepting a wide control voltage Ucmin - Ucmax. Only four coils cover control voltages 24 → 500 Vac or 20 → 500 Vdc
AF..Z contactors equipped with a Z coil type allow direct control by 24 Vdc, 500 mA PLC output and obtain a reduced holding coil consumption
AF.Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, these contactors are of the block type design with 3 main poles.
AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC
AF190-AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC, these contactors are of the block type design with 3 main poles.
AF contactors have built in surge protection and does not require any additional surge suppressors

Standards

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1

Specifications
Attribute Value
Coil Voltage 24 V ac/dc
Number of Poles 3
Contact Current Rating 28 A
Power Rating 5.5 kW
Range AF Range
Series AF12
Normal State Configuration 3NO
Auxiliary Contact Configuration 1NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 1
Terminal Type Screw
Depth 77mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +60°C
Width 45mm
Length 86mm
17 In stock - FREE next working day delivery available
Price Each
£ 36.15
(exc. VAT)
£ 43.38
(inc. VAT)
Units
Per unit
1 - 4
£36.15
5 - 9
£34.34
10 - 24
£32.54
25 - 49
£30.73
50 +
£28.92
