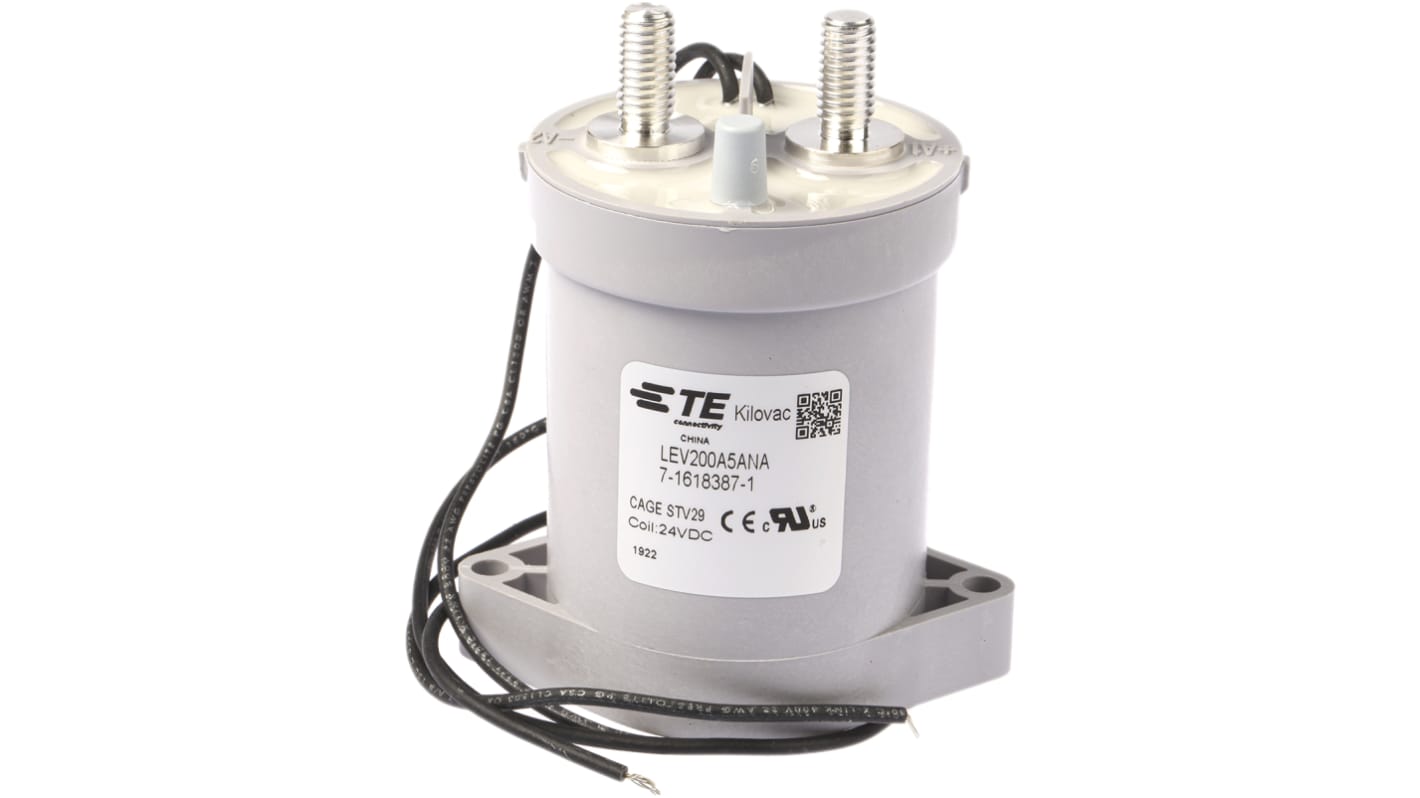

TE Connectivity 1 Pole Contactor - 500 A, 24 V dc Coil, KILOVAC, 1NO

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Contactor, KILOVAC LEV Series

Applications include power/motor control circuit isolation, circuit protection, safety in industrial machinery and automotive battery switching and backup
Compact package, occupies only 65.5cm3
Hermetically sealed and intrinsically safe
8kV isolation between open contacts permits use for high voltage and isolation carry
Maximum voltage rating: 900Vdc
15in. flying leads for coil connections

Specifications
Attribute Value
Coil Voltage 24 V dc
Number of Poles 1
Contact Current Rating 500 A
Range KILOVAC
Series LEV200
Normal State Configuration 1NO
Contact Voltage Rating 900 V dc
Terminal Type Lug Ring Terminal
Minimum Operating Temperature -45°C
Maximum Operating Temperature +85°C
Available to back order for despatch 14/05/2020
Price Each
£ 92.44
(exc. VAT)
£ 110.93
(inc. VAT)
Units
Per unit
1 +
£92.44
