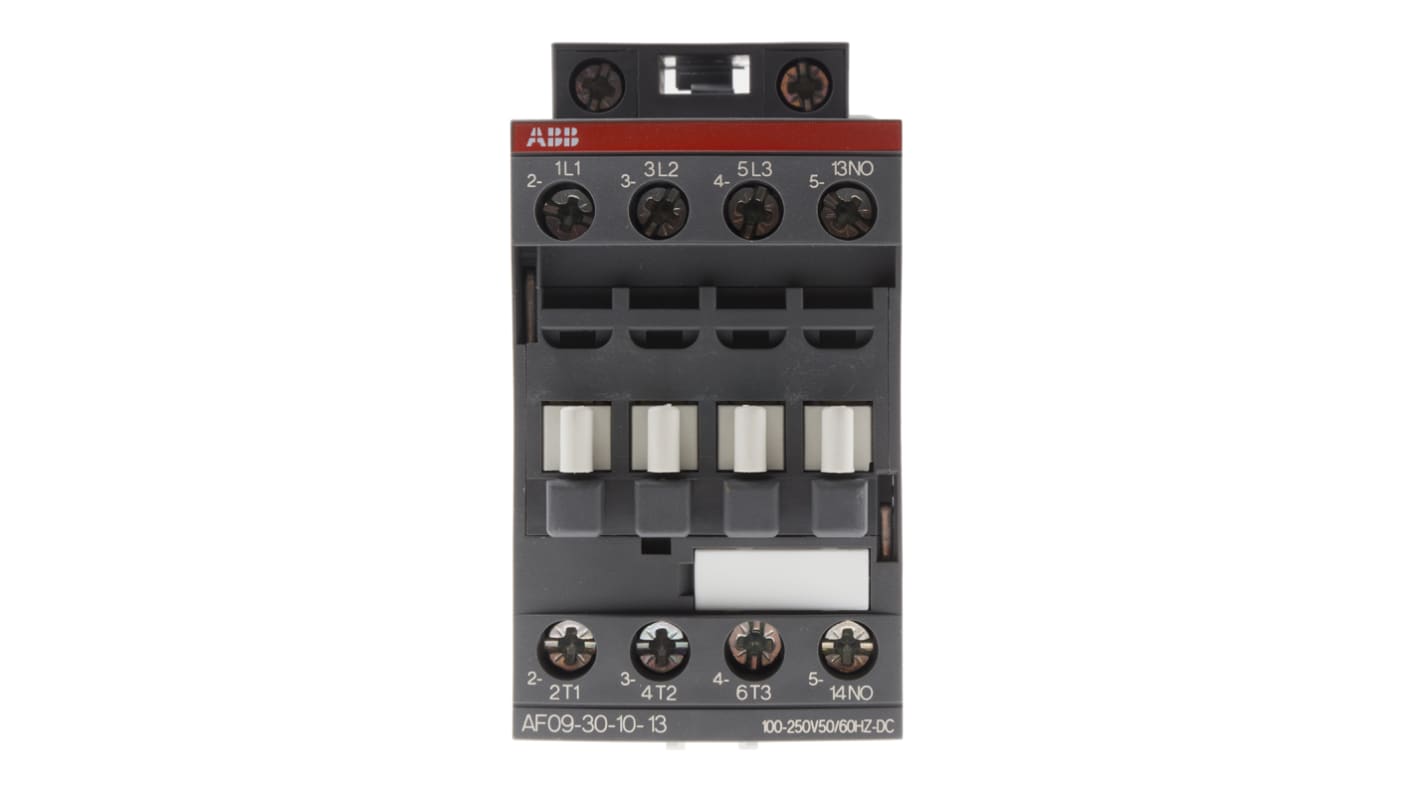

ABB 3 Pole Contactor - 7 A, 230 V ac Coil, AF Range, 3NO, 4 kW

  • RS Stock No. 711-6118
  • Mfr. Part No. 1SBL137001R1310
  • Brand ABB
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

AF Range Contactors, 3 Pole

AF contactors are AC/DC operated
AF09-AF38 contactors include an electronic coil interface accepting a wide control voltage Ucmin - Ucmax. Only four coils cover control voltages 24 → 500 Vac or 20 → 500 Vdc
AF..Z contactors equipped with a Z coil type allow direct control by 24 Vdc, 500 mA PLC output and obtain a reduced holding coil consumption
AF.Z contactors withstand short dips and voltage interruptions (SEMI F47-0706 compliance)
AF40-AF96 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC and 220 V DC, these contactors are of the block type design with 3 main poles.
AF116-AF140 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC, AF146 up to 1000 V AC
AF190-AF370 contactors are mainly used for controlling 3-phase motors and power circuits up to 1000 V AC, these contactors are of the block type design with 3 main poles.
AF contactors have built in surge protection and does not require any additional surge suppressors

Standards

IEC 60947-1 / 60947-4-7 and EN 60947-1 / 60947-4-1

Specifications
Attribute Value
Coil Voltage 230 V ac
Number of Poles 3
Contact Current Rating 7 A
Power Rating 4 kW
Range AF Range
Series AF09
Normal State Configuration 3NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 1
Terminal Type Screw
Depth 77mm
Width 45mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +70°C
Length 86mm
46 In stock - FREE next working day delivery available
Price Each
£ 29.99
(exc. VAT)
£ 35.99
(inc. VAT)
Units
Per unit
1 - 4
£29.99
5 - 9
£28.49
10 - 24
£27.00
25 - 49
£25.50
50 +
£23.99
