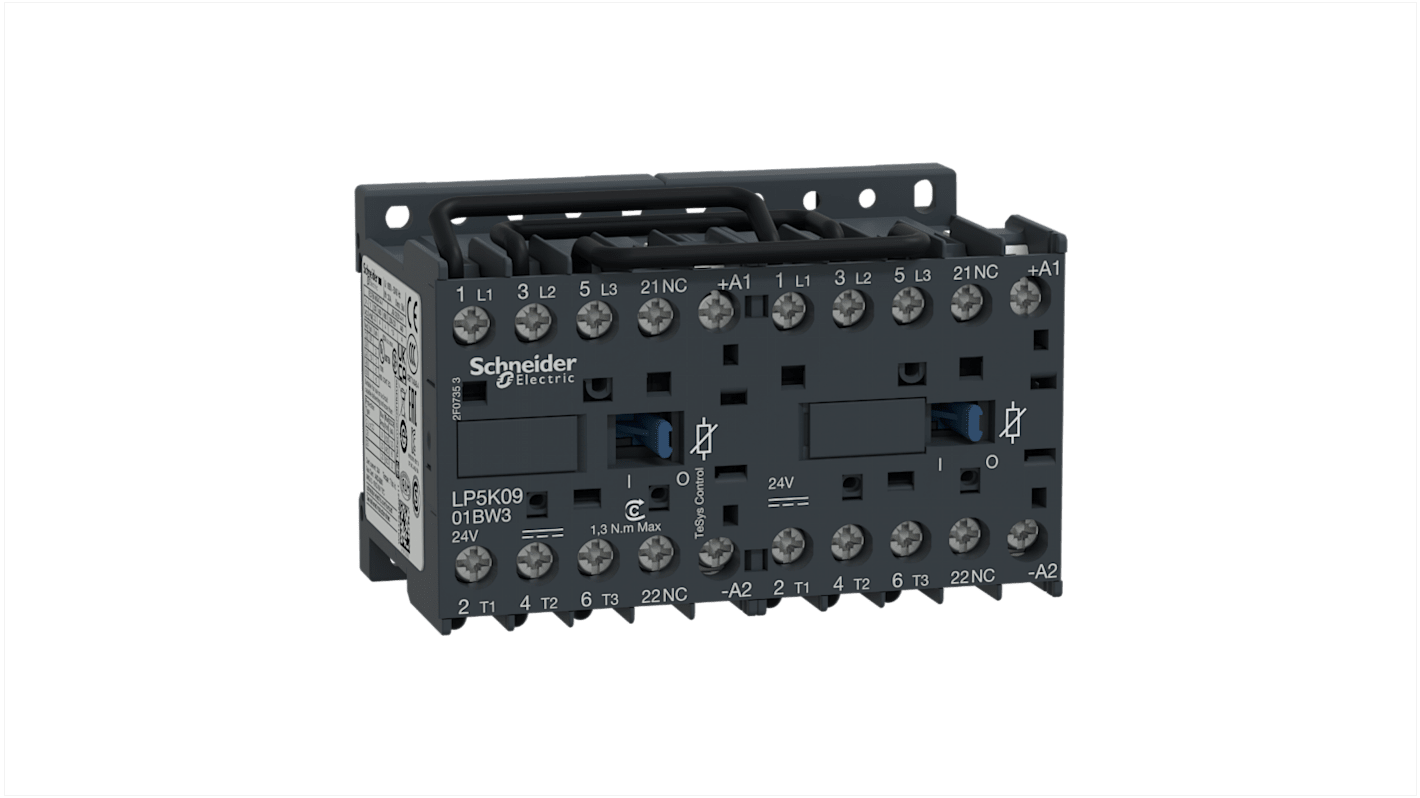

Schneider Electric LP5K Series Reversing Contactor, 24 V dc Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac
- RS Stock No.:
- 609-7971
- Mfr. Part No.:
- LP5K0901BW3
- Brand:
- Schneider Electric
4 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£113.68
(exc. VAT)
£136.42
(inc. VAT)
| Units | Per unit |
| 1 + | £113.68 |
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 609-7971
- Mfr. Part No.:
- LP5K0901BW3
- Brand:
- Schneider Electric
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details
Schneider Electric TeSys K Reversing Contactors.
Schneider Electric TeSys K provide you with a choice of reversing and non-reversing contactors. TeSys K contactors, unlike relays, are specifically designed to connect to high current load devices. Used in larger-scale applications, Schneider Electric contactors can be controlled remotely, specifically designed to switch a large amount of electrical power through its contacts.
The contractors feature varied switching voltages, many of the range feature screw clamp or a solder termination. TeSys K contactors offer you the best performance and compactness ratio plus also ensuring easy integration in all applications.
- Highly reliable
- Excellent quality
- Easily installed accessories
Contactor Features.
- Common options available for all ratings: 6, 9, 12 A
- Control circuits available: AC, DC, low-consumption DC, silent
- Applications: 2.2 kW, 4.5 kW, 5.5 kW in AC3 and AC4
- Connectors: screw clamp, faston connectors, spring terminals, pins for printed circuit boards
Control Relay Features.
4 pole relays with 10A thermally rated contacts suitable for AC or DC control voltages. Low consumption coil versions with built in suppression and suitable to be used with programmable controllers are also available.
- Contacts with 10A thermal rating, suitable for use down to 17V 5mA
- Four-pole for operation with AC or DC control circuits
- Variety of auxiliary contacts, and timer modules
- Clamp terminals as standard with spring terminal, printed circuit board connection and fast-on connector types available
Applications.
- Industry, infrastructure, building.
- Simple control systems.
- Noise sensitive areas, disturbed mains supply, silent contactor.
- Compatible with programmable controller outputs, low consumption contactor.
- Switching contactor or relay coils.
- Powering control and signalling equipment.
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
- AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
- AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
What accessories are available?
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Transient voltage surge suppressors
- Interface modules and electronic timers
- Mechanical latching blocks
LP5K0901BW3 TeSys K LP5K Reversing Contactor.
- Reversing contactor.
- Control, Motor control, Resistive load applications.
- AC-1, AC-3, AC-4 Category.
- Preassembled with reversing power busbar
- [Ue] rated operational voltage 690 V AC 50/60 Hz for power circuit, <= 690 V AC 50/60 Hz for signalling circuit.
- [Ie] rated operational current 9 A at <= 440 V AC AC-3 for power circuit, 20 A (<= 50 °C) at <= 440 V AC AC-1 for power circuit, 16 A (<= 70 °C) at 690 V AC AC-1 for power circuit.
- Control circuit 24 V DC (DC low consumption).
- 1 NC Auxiliary contact.
- Category III.
- Rated breaking capacity, 110 A at 415 V conforming to IEC 60947, 110 A at 440 V conforming to IEC 60947, 80 A at 500 V conforming to IEC 60947, 110 A at 220...230 V conforming to IEC 60947, 110 A at 380...400 V conforming to IEC 60947, 70 A at 660...690 V conforming to IEC 60947.
- Built-in bidirectional peak limiting diode suppressor.
- Flame resistant V1 conforming to UL 94, Requirement 2 conforming to NF F 16-101, Requirement 2 conforming to NF F 16-102.
- Safety level B10d = 1369863 cycles contactor with nominal load conforming- to EN/ISO 13849-1, B10d = 20000000 cycles contactor with mechanical load conforming- to EN/ISO 13849-1.
- Plate, Rail Mounting.
- Mechanical interlocking.
- Screw clamp terminals.
- Protection to IP20 conforming to VDE 0106
Approvals
UL, CSA
Standards
BS 5424, IEC 60947, NF C 63-110, VDE 0660.
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V dc |
| Number of Poles | 3 |
| Contact Voltage Rating | 690 V ac |
| Contact Current Rating | 9 A |
| Power Rating | 4 kW |
| Series | LP5K |
| Range | TeSys K |
| Function | Reversing |
| Normal State Configuration | 3NO |
| Number Of Auxiliary Contacts | 1 |
| Auxiliary Contact Configuration | 1NC |
| Terminal Type | Screw |
| Width | 90mm |
| Length | 58mm |
| Depth | 57mm |
| Better World Verification | Green Premium |
| Better World Product | Yes |
| Mounting Style | Plate, Rail |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -25°C |
