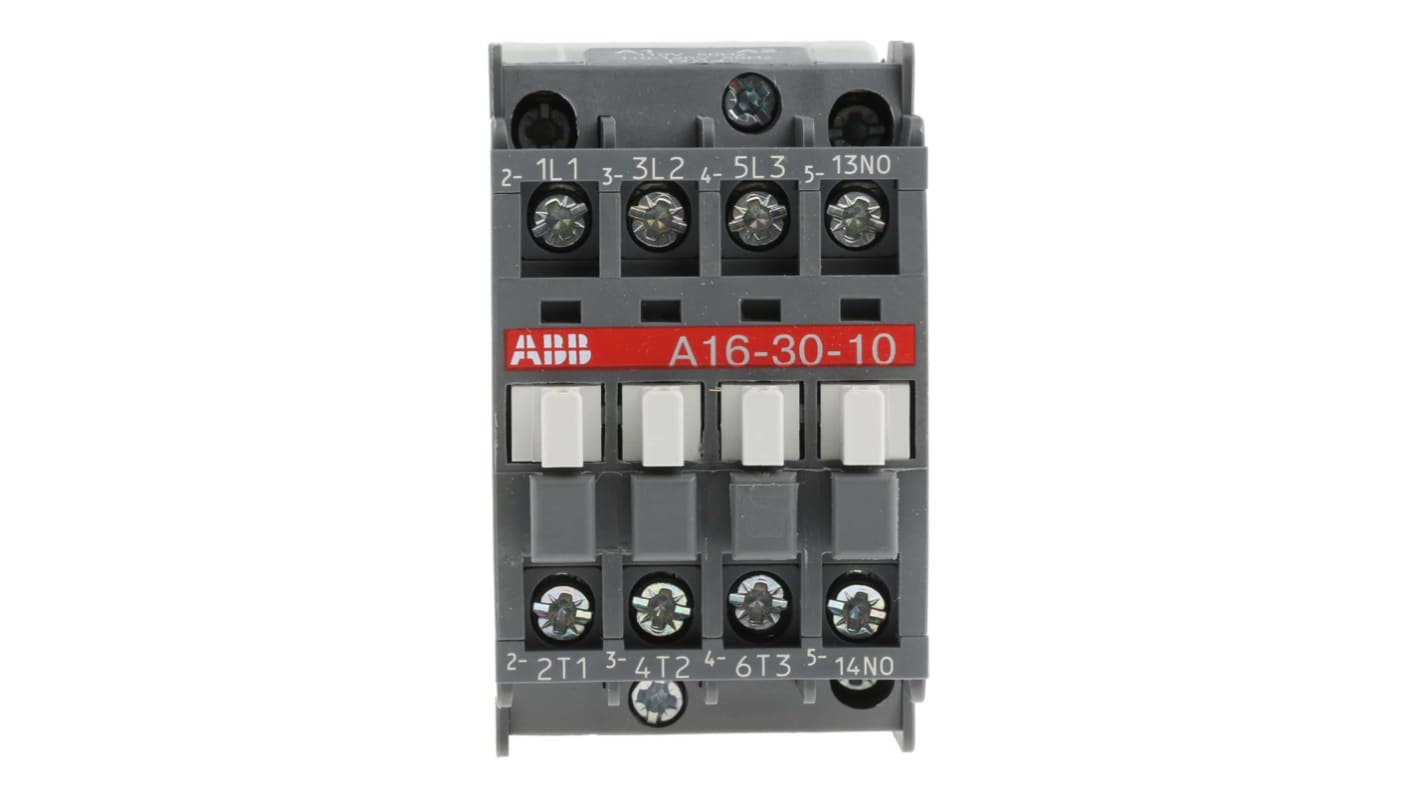

ABB 3 Pole Contactor - 30 A, 110 V ac Coil, A Line, 3NO, 7.5 kW

  • RS Stock No. 445-0976
  • Mfr. Part No. 1SBL181001R8410
  • Brand ABB
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): FR
Product Details

A Series AC Controlled Contactors

Three main poles
One N/O auxiliary contact
Front and side mounted auxiliary contact blocks
Location for surge protection
DIN rail and back plate mounting
Manufactured to IEC947-4-1, EN60 047-4-1
CE marked

Note

For Overloads see 455-7797, 456-0196 and similar products.

Approvals

UL, CSA, BV, DNV, GL, LROS, PRS and RINA

Specifications
Attribute Value
Coil Voltage 110 V ac
Number of Poles 3
Contact Current Rating 30 A
Power Rating 7.5 kW
Range A Line
Series A16
Normal State Configuration 3NO
Contact Voltage Rating 690 V ac
Number Of Auxiliary Contacts 1
Terminal Type Screw
Minimum Operating Temperature -40°C
Depth 74mm
Length 74mm
Width 44mm
Maximum Operating Temperature +55°C
30 in stock for FREE next working day delivery
9 available from Europe for delivery within 1 working day(s)
Price Each
£ 69.56
(exc. VAT)
£ 83.47
(inc. VAT)
Units
Per unit
1 - 4
£69.56
5 - 9
£66.08
10 - 24
£62.60
25 - 49
£59.13
50 +
£55.66
