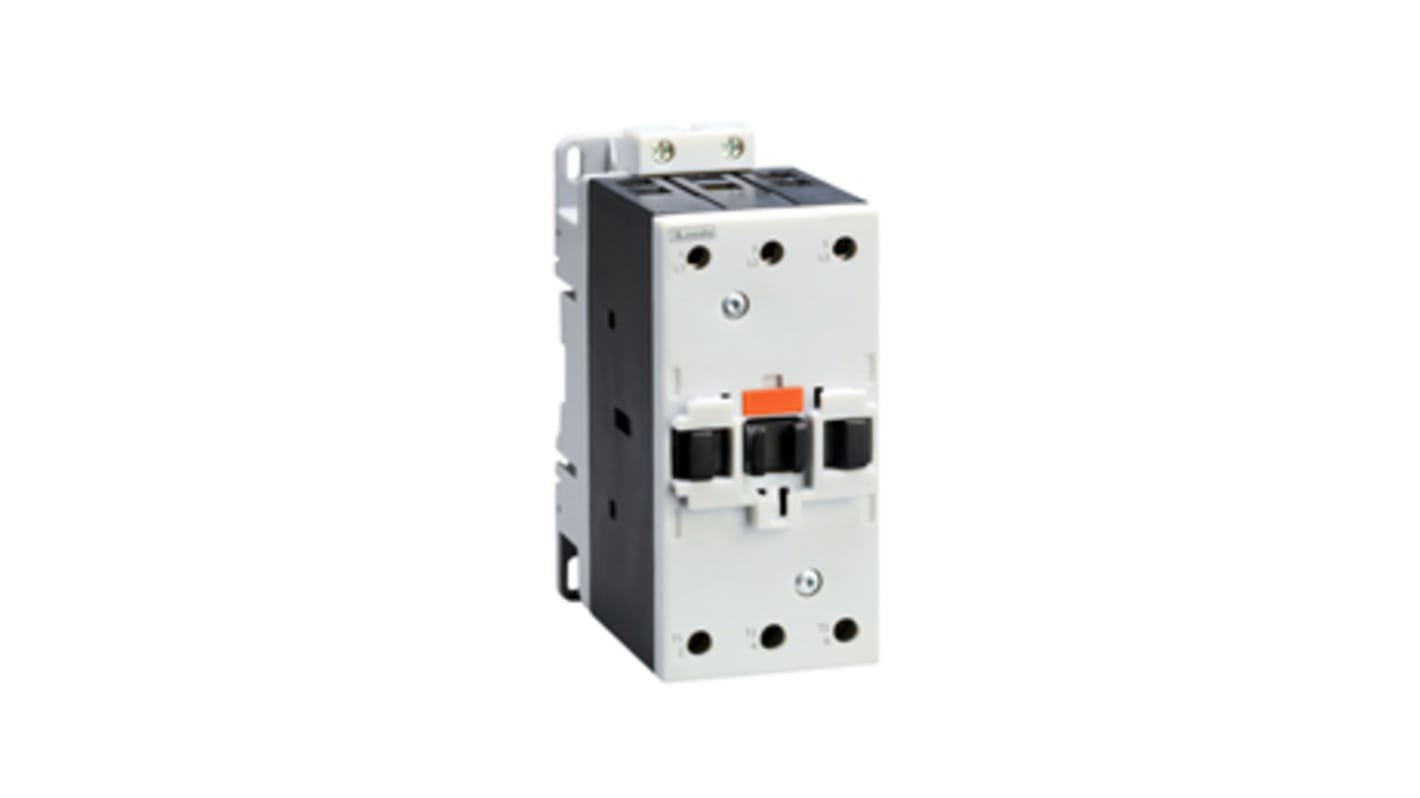

Lovato BF Series Contactor, 24 V ac Coil, 3-Pole, 50 A, 22 kW, 3NO, 440 V ac
- RS Stock No.:
- 146-9033
- Mfr. Part No.:
- BF5000A024
- Brand:
- Lovato
2 In stock - FREE next working day delivery available
Added
Price Each
£152.85
(exc. VAT)
£183.42
(inc. VAT)
| Units | Per unit |
| 1 + | £152.85 |
- RS Stock No.:
- 146-9033
- Mfr. Part No.:
- BF5000A024
- Brand:
- Lovato
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
Highly conductive auxiliary contacts with four contact points
Quick connect - snap on accessory mounting
Distinct contact status indication
Up to four auxiliary contacts can be mounted
Mechanical interlock only 5mm deep
Positive (force) guided contacts
(mechanically-linked per IEC)
three-pole contactors, 9 to 110A IEC AC3 duty / 5 to 75HP 480V - 7.5 to 100HP 600V UL/CSA
Four-pole contactors, 25 to 125A in AC1 duty
Power factor correction contactors, 7.5 to 75kvar at 400V IEC / 9 to 80kvar at 480V UL/CSA
Types with 2NO+2NC or 4NC main power poles
Types for photovoltaic applications
Highly conductive auxiliary contacts
Coils with AC or DC supply
Wide-range coils with electronic control for contactors from 40 to 80A AC3
Low-consumption versions for control relays and 9-
38A contactors in IEC AC3 duty
Quick connect - snap on accessory mounting
Distinct contact status indication
Up to four auxiliary contacts can be mounted
Mechanical interlock only 5mm deep
Positive (force) guided contacts
(mechanically-linked per IEC)
three-pole contactors, 9 to 110A IEC AC3 duty / 5 to 75HP 480V - 7.5 to 100HP 600V UL/CSA
Four-pole contactors, 25 to 125A in AC1 duty
Power factor correction contactors, 7.5 to 75kvar at 400V IEC / 9 to 80kvar at 480V UL/CSA
Types with 2NO+2NC or 4NC main power poles
Types for photovoltaic applications
Highly conductive auxiliary contacts
Coils with AC or DC supply
Wide-range coils with electronic control for contactors from 40 to 80A AC3
Low-consumption versions for control relays and 9-
38A contactors in IEC AC3 duty
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 24 V ac |
| Number of Poles | 3 |
| Contact Voltage Rating | 440 V ac |
| Contact Current Rating | 50 A |
| Series | BF |
| Range | Orange |
| Power Rating | 22 kW |
| Normal State Configuration | 3NO |
| Terminal Type | Cage Clamp |
| Length | 55mm |
| Width | 114.5mm |
| Depth | 136mm |
| Pole and Throw Configuration | 3PST |
| Mounting Style | DIN Rail Mount |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -50°C |
