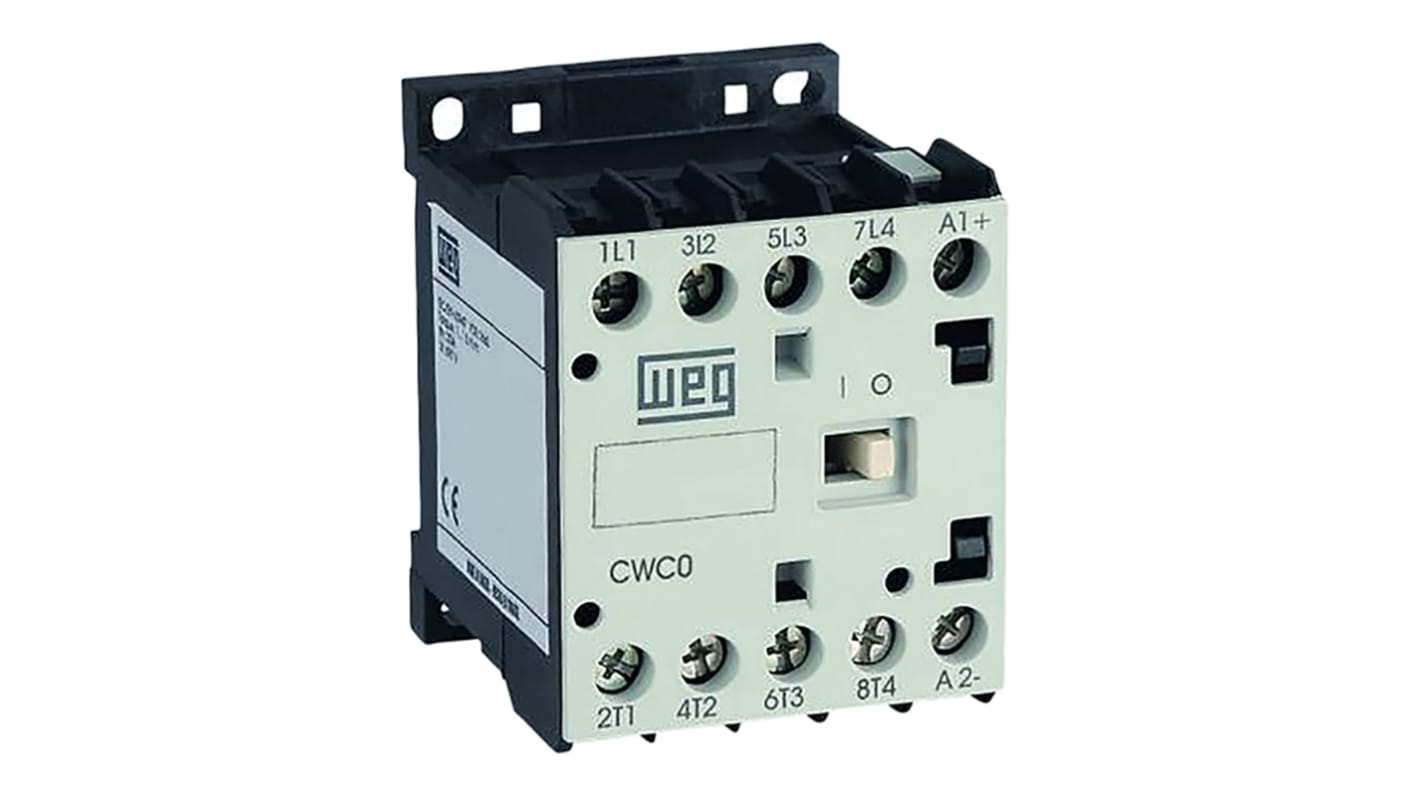

WEG 4 Pole Contactor - 16 A, 24 V dc Coil, 2NO/2NC

  • RS Stock No. 122-1062
  • Mfr. Part No. CWC016-00-22R03
  • Brand WEG
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): BR
Product Details

CWC Series

Professional range of WEG contactors from the CWC Series designed for switching of electric motors. The contactors are modular and compact but at the same time robust and highly reliable. Built and tested according to IEC/EN60947 and DIN VDE 0660. Direct mounting capabilities. The controllers include contactors and reversing contactors.

AC/DC Operated
Screw Terminals
DIN Rail or Panel Mount
Compact space saving design
Built in auxiliary contacts

WEG Contactors

Specifications
Attribute Value
Coil Voltage 24 V dc
Number of Poles 4
Contact Current Rating 16 A
Series CWC
Normal State Configuration 2NO/2NC
Contact Voltage Rating 690 V
Terminal Type Screw
Length 58mm
Depth 52mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +55°C
Width 45mm
1 In stock for delivery within 1 working days
Price Each
£ 59.99
(exc. VAT)
£ 71.99
(inc. VAT)
Units
Per unit
1 +
£59.99
Not available for guaranteed pre 9am/10am delivery
