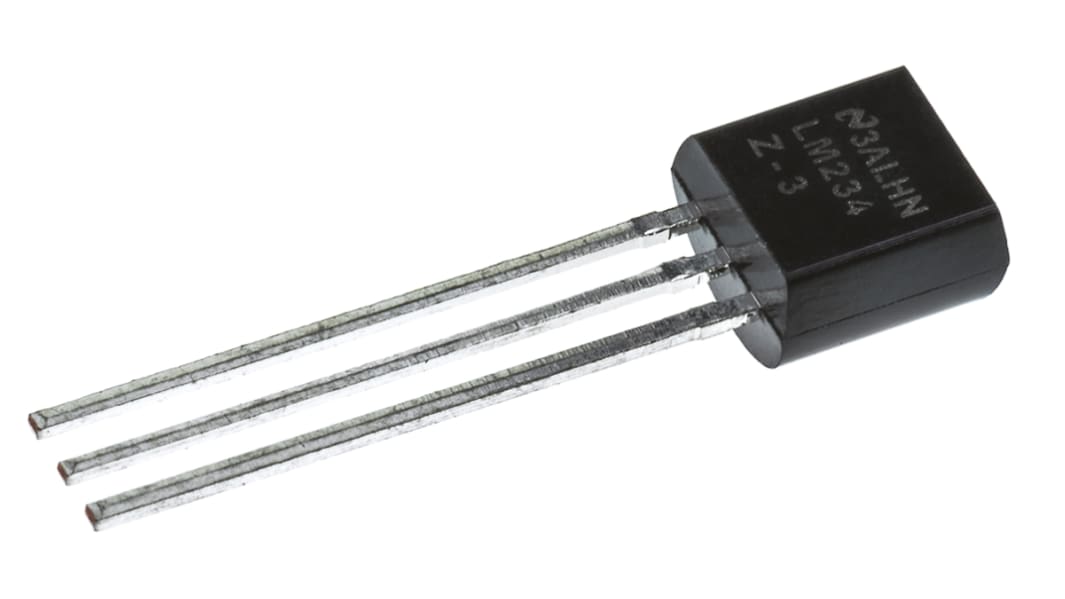

Texas Instruments LM234Z-3/NOPB Programmable Current Source, 3-Pin TO-92

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Adjustable Current Source, Texas Instruments

LM134/LM334 - Adjustable Current Source
LM234 - Temperature Sensor with Analogue Current Source Output
REF200 - Dual high-accuracy 100μA fixed Current Source IC with additional current mirror

Current Source, Texas Instruments

Specifications
Attribute Value
Diode Configuration Single
Number of Elements per Chip 1
Maximum Peak Operating Voltage 40V
Mounting Type Through Hole
Package Type TO-92
Pin Count 3
Dimensions 5.2 x 4.19 x 5.2mm
Length 5.2mm
Width 4.19mm
Height 5.2mm
Maximum Operating Temperature +100 °C
Minimum Operating Temperature -25 °C
30 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 2.142
(exc. VAT)
£ 2.57
(inc. VAT)
Units
Per unit
Per Pack*
5 - 15
£2.142
£10.71
20 - 85
£1.694
£8.47
90 - 445
£1.528
£7.64
450 - 895
£1.358
£6.79
900 +
£1.194
£5.97
*price indicative
