Flexicon Flexible Conduit, 25mm Nominal Diameter, Galvanised Steel, Black
- RS Stock No.:
- 880-8297
- Mfr. Part No.:
- LFHU25B-25M
- Brand:
- Flexicon
49 In stock - FREE next working day delivery available
Added
Price 1 Reel of 25 Metre(s)
£205.82
(exc. VAT)
£246.98
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £205.82 | £8.233 |
| *price indicative | ||
- RS Stock No.:
- 880-8297
- Mfr. Part No.:
- LFHU25B-25M
- Brand:
- Flexicon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
LFHU Galvanised Steel LFH Coated Conduit

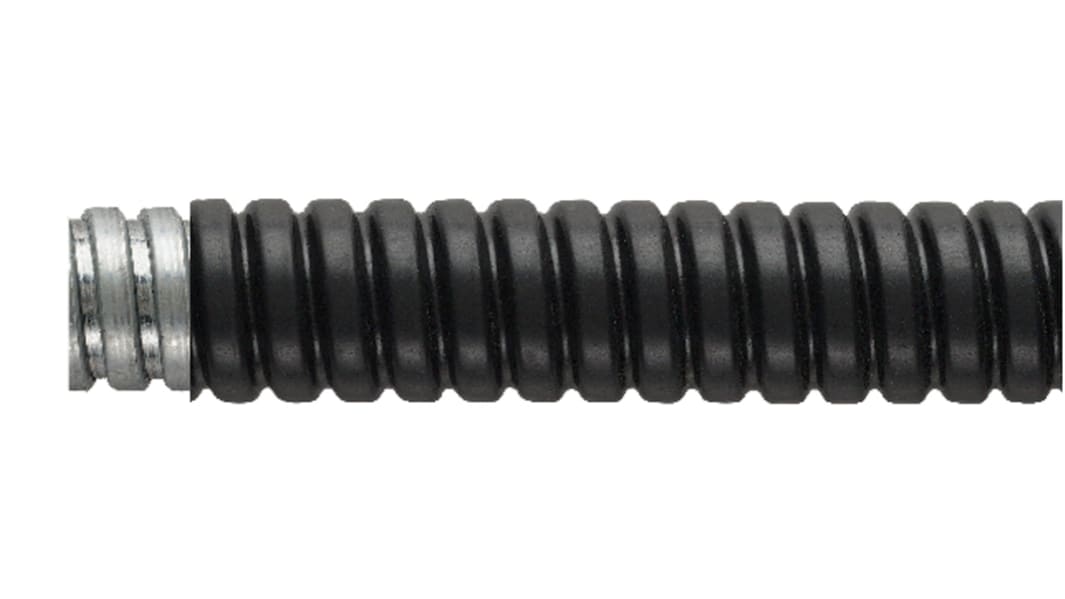

Flexicon LFHU conduit is helically wound flexible steel conduit with a black Low Fire Hazard (LFH) coating.
Typical applications include public and commercial buildings and tunnels. This low fire hazard conduit is approved by Lloyds Register and the UK London underground transport system.
Typical applications include public and commercial buildings and tunnels. This low fire hazard conduit is approved by Lloyds Register and the UK London underground transport system.
LFH (Low Fire Hazard) coated galvanised steel
IP rating: IP54 with standard fittings and IP65 with FSU Type C compression fitting
High mechanical strength
Halogen, sulphur and phosphorus free
Temperature range: -25°C to +90°C
IP rating: IP54 with standard fittings and IP65 with FSU Type C compression fitting
High mechanical strength
Halogen, sulphur and phosphorus free
Temperature range: -25°C to +90°C
Approvals
CE
BS EN IEC 61386
Lloyds Register
London Underground LUL Std 1-085 (Cert. No. 297)
REACh
RoHS
BS EN IEC 61386
Lloyds Register
London Underground LUL Std 1-085 (Cert. No. 297)
REACh
RoHS
Flexicon Flexible Conduit
Specifications
Attribute | Value |
|---|---|
| Nominal Diameter | 25mm |
| Material | Galvanised Steel |
| Conduit Type | Flexible |
| Outer Diameter | 26mm |
| Colour | Black |
| Interior Diameter | 21.1mm |
| Length | 25m |
| IP Rating | IP54 |
| Coating Material | Polyolefin Extra Low Fire Hazard |
| Maximum Operating Temperature | +90°C |
| Series | LFHU |
| Minimum Operating Temperature | -25°C |
| Minimum Bend Radius | 55 mm |
| Standards Met | CE Compliant, Lloyds Register of Shipping Type Approval, London Underground, Rail Accreditation, REACH Compliant, RoHS Compliant |
