Flexicon Flexible Conduit, 63mm Nominal Diameter, Galvanised Steel, Black
- RS Stock No.:
- 880-8287
- Mfr. Part No.:
- FSU63B-10M
- Brand:
- Flexicon
7 In stock - FREE next working day delivery available
Added
Price 1 Reel of 10 Metre(s)
£280.18
(exc. VAT)
£336.22
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 4 | £280.18 | £28.018 |
| 5 - 14 | £224.15 | £22.415 |
| 15 + | £212.94 | £21.294 |
| *price indicative | ||
- RS Stock No.:
- 880-8287
- Mfr. Part No.:
- FSU63B-10M
- Brand:
- Flexicon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

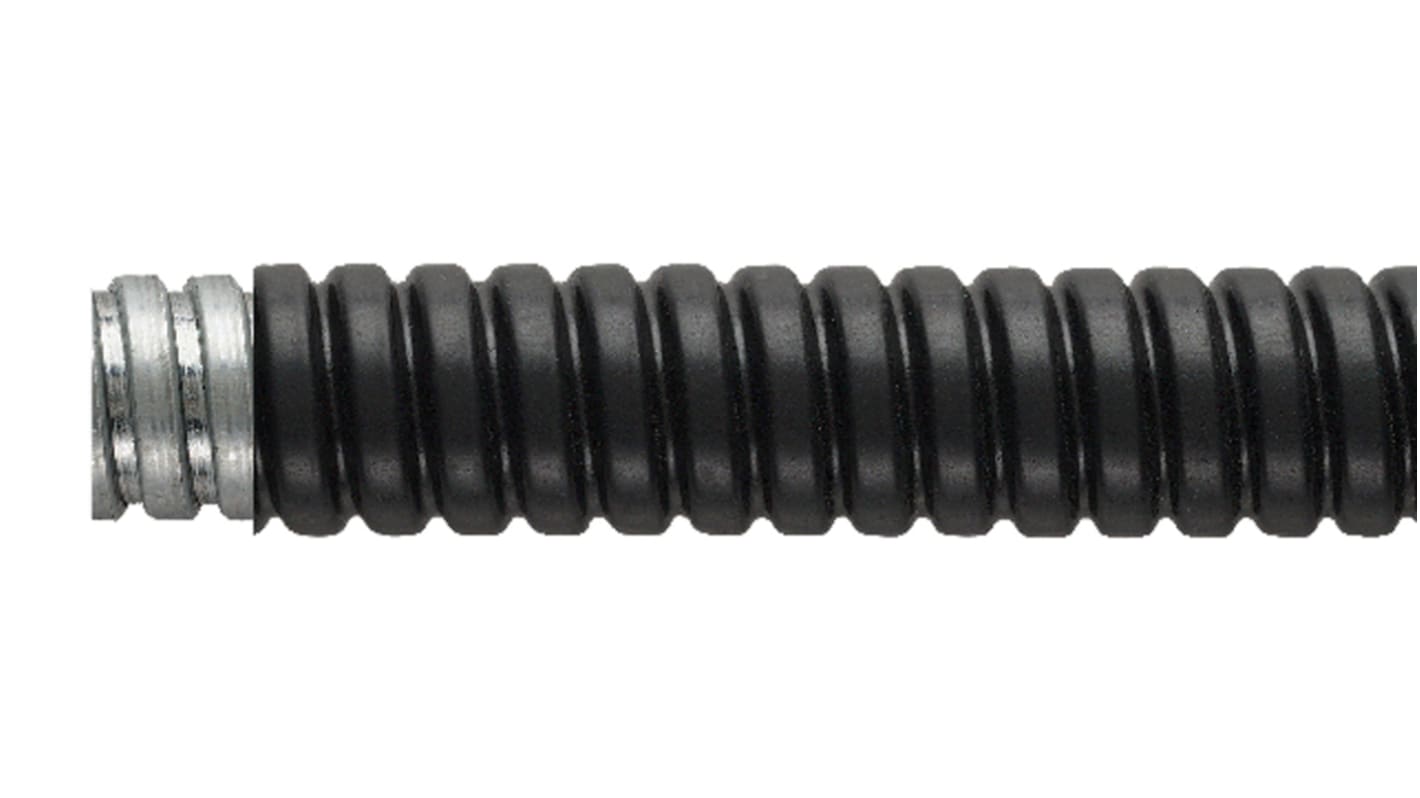

FSU Flexible Conduit, Galvanised Steel with Black PVC Coating
Flexicon FSU flexible conduit. Galvanised steel, helically wound with black PVC coating. Typical applications include general factory wiring and connections to machines.
PVC coated galvanised steel
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use
Approvals
CE
BS EN IEC 61386
REACh
RoHS
BS EN IEC 61386
REACh
RoHS
Flexicon Flexible Conduit
Specifications
Attribute | Value |
|---|---|
| Nominal Diameter | 63mm |
| Material | Galvanised Steel |
| Conduit Type | Flexible |
| Outer Diameter | 64.5mm |
| Colour | Black |
| Interior Diameter | 57.5mm |
| Length | 10m |
| IP Rating | IP54 |
| Coating Material | PVC |
| Maximum Operating Temperature | +70°C |
| Series | FSU |
| Minimum Bend Radius | 115 mm |
| Standards Met | CE Compliant, RoHS Compliant |
| Minimum Operating Temperature | -15°C |
