Flexicon FSU PVC Coated Galvanised Steel Flexible Conduit Black 50mm 10m

  • RS Stock No. 880-8284
  • Mfr. Part No. FSU50B-10M
  • Brand Flexicon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

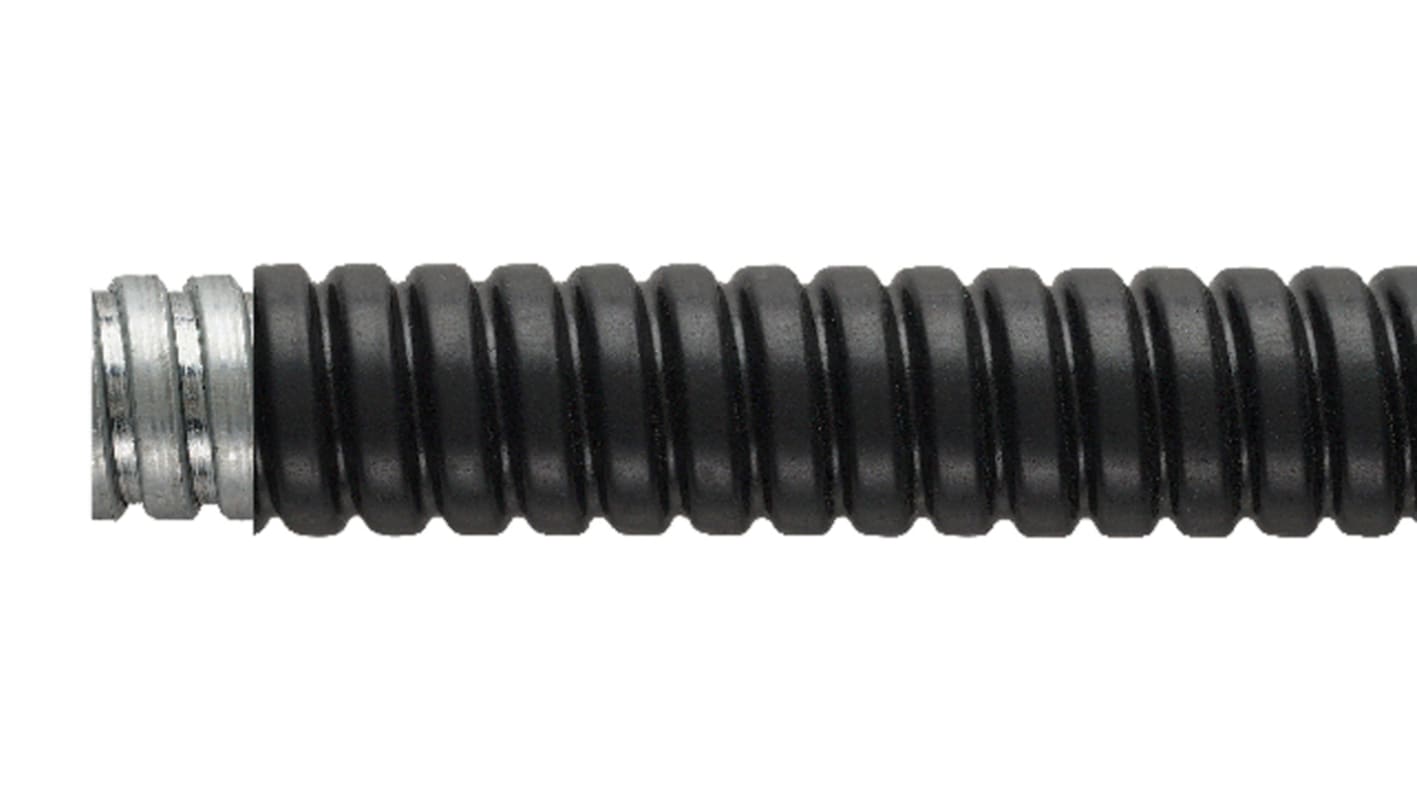

FSU Flexible Conduit, Galvanised Steel with Black PVC Coating

Flexicon FSU flexible conduit. Galvanised steel, helically wound with black PVC coating. Typical applications include general factory wiring and connections to machines.

PVC coated galvanised steel
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use

Approvals

CE
BS EN IEC 61386
REACh
RoHS

Flexicon Flexible Conduit

Specifications
Attribute Value
Nominal Diameter 50mm
Material Galvanised Steel
Conduit Type Flexible
Colour Black
Outer Diameter 55mm
Interior Diameter 48.4mm
Length 10m
IP Rating IP54
Coating Material PVC
Series FSU
Maximum Operating Temperature +70°C
Minimum Operating Temperature -15°C
Minimum Bend Radius 90 mm
Standards Met CE Compliant, RoHS Compliant
6 In stock for FREE next working day delivery
Price 1 Reel of 10 Metre(s)
£ 265.44
(exc. VAT)
£ 318.53
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 4
£265.44
£26.544
5 - 14
£212.35
£21.235
15 +
£201.75
£20.175
*price indicative
