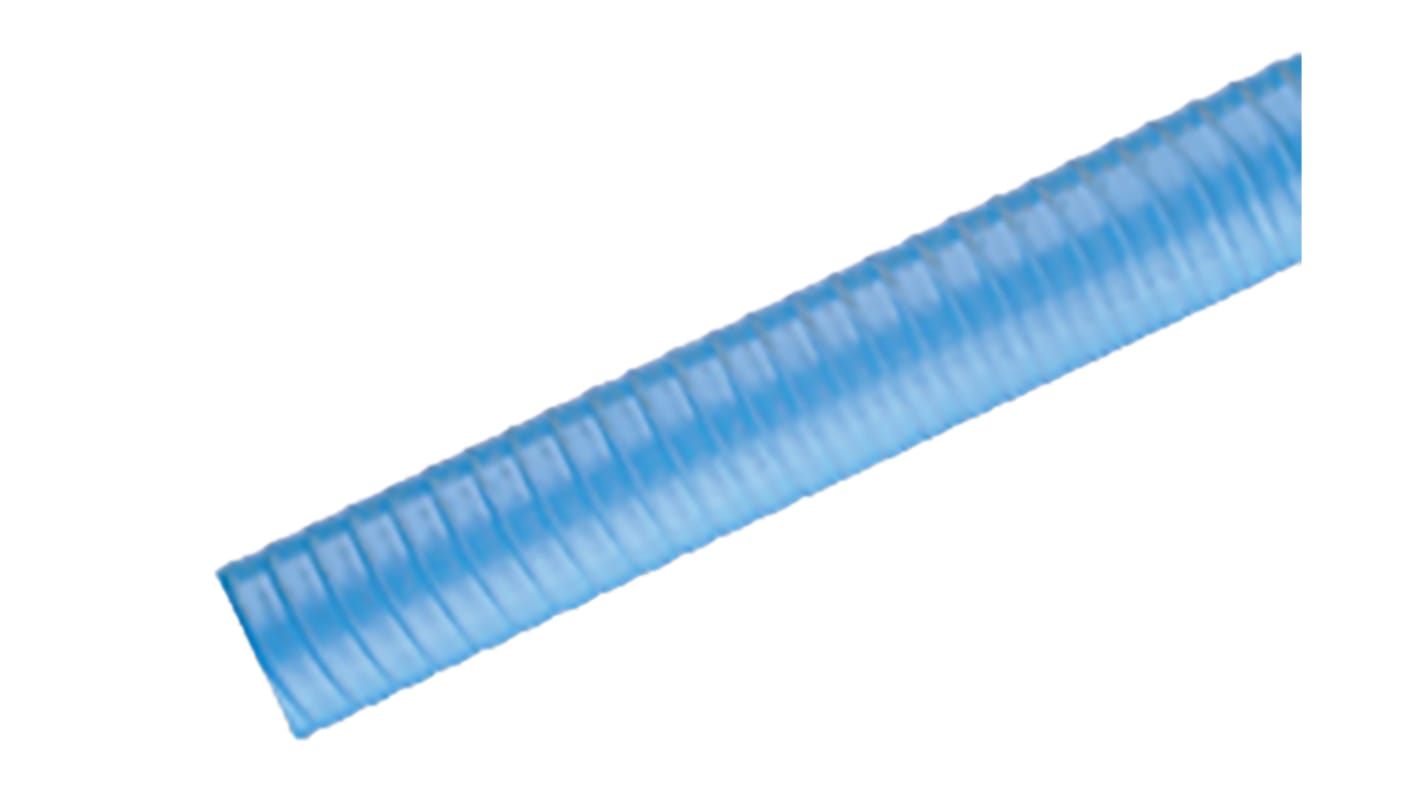

Kopex Flexible Conduit, 20mm Nominal Diameter, Galvanised Steel, Blue
- RS Stock No.:
- 738-8209
- Mfr. Part No.:
- 7TCA297120R0119 EXLLH0410
- Brand:
- Kopex
- RS Stock No.:
- 738-8209
- Mfr. Part No.:
- 7TCA297120R0119 EXLLH0410
- Brand:
- Kopex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
High Temperature Liquid Tight Conduit
The Kopex EXLLH flexible conduit is for use in hazardous environments where a resistance to oils and other chemicals is required. This conduit has a galvanised steel core with cotton packing and is covered with a flame retardant high temperature covering which is coloured blue for specific use on intrinsically safe equipment. Intended Use - Exe and Exd Zones 1, 2, 21, 22 and Class I Div II when used with HA Group1 Fittings EXLLH.
Flame Resistant
UL94 V2
Chemical and Oil Resistant
Fully RoHS Compliant
Temperature Rating: Static -50°C to +130°C, Dynamic -5°C to +130°C
UL94 V2
Chemical and Oil Resistant
Fully RoHS Compliant
Temperature Rating: Static -50°C to +130°C, Dynamic -5°C to +130°C
Approvals
IEC61386
Kopex Ex-System
Specifications
Attribute | Value |
|---|---|
| Nominal Diameter | 20mm |
| Material | Galvanised Steel |
| Conduit Type | Flexible |
| Outer Diameter | 21.1mm |
| Colour | Blue |
| Interior Diameter | 16mm |
| Length | 10m |
| IP Rating | IP66 |
| Coating Material | High Temperature Thermoplastic |
| Maximum Operating Temperature | +130°C |
| Series | EXLLH |
| Minimum Bend Radius | 80 mm |
| Minimum Operating Temperature | -50°C |
