Adaptaflex KFS PVC Flexible Conduit White 20mm 10m

  • RS Stock No. 250-7799
  • Mfr. Part No. KFS20/W/10M
  • Brand Adaptaflex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

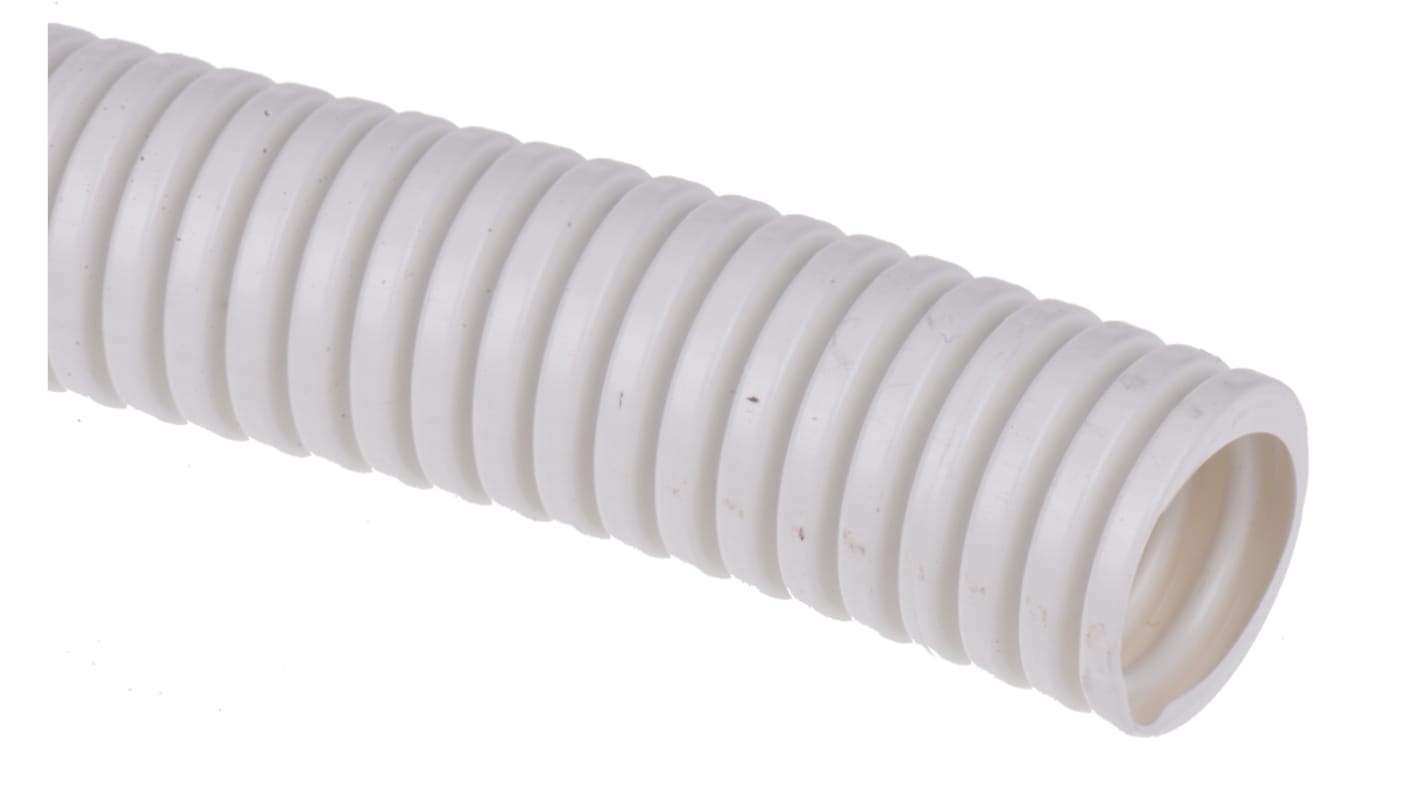

Korifit White PVC (IP65)

A white corrugated pliable conduit constructed from unplasticised PVC, suitable for burial in concrete, wiring protection and routing in static, light duty industrial and commercial installations where constant flexing is not required. It is often combined with white rigid conduit and socket outlet boxes, see stock no. 600-420 typically.,The straight push-on fittings have a fixed external thread with an unrestricted through bore suitable for knockouts or threaded entries, and are supplied with a locknut. The coupler is used for joining two 20mm conduits in an IP65 assembly.

-5°C to +60°C operating temperature
Non Flame propagating to EN50086
UV resistant
Compression Strength 750N/50mm
Tensile Strength 250N

Specifications
Attribute Value
Nominal Diameter 20mm
Material PVC
Conduit Type Flexible
Colour White
Outer Diameter 20mm
Interior Diameter 14.3mm
Length 10m
IP Rating IP40, IP65
Series KFS
Maximum Operating Temperature +60°C
Minimum Operating Temperature -5°C
Minimum Bend Radius 30 mm
21 In stock for FREE next working day delivery
Price 1 Reel of 10 Metre(s)
£ 12.91
(exc. VAT)
£ 15.49
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 9
£12.91
£1.291
10 - 49
£12.27
£1.227
50 +
£11.62
£1.162
*price indicative
