Flexicon FSU PVC Coated Steel Flexible Conduit Black 32mm 25m

  • RS Stock No. 124-0025
  • Mfr. Part No. FSU32B-25M
  • Brand Flexicon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

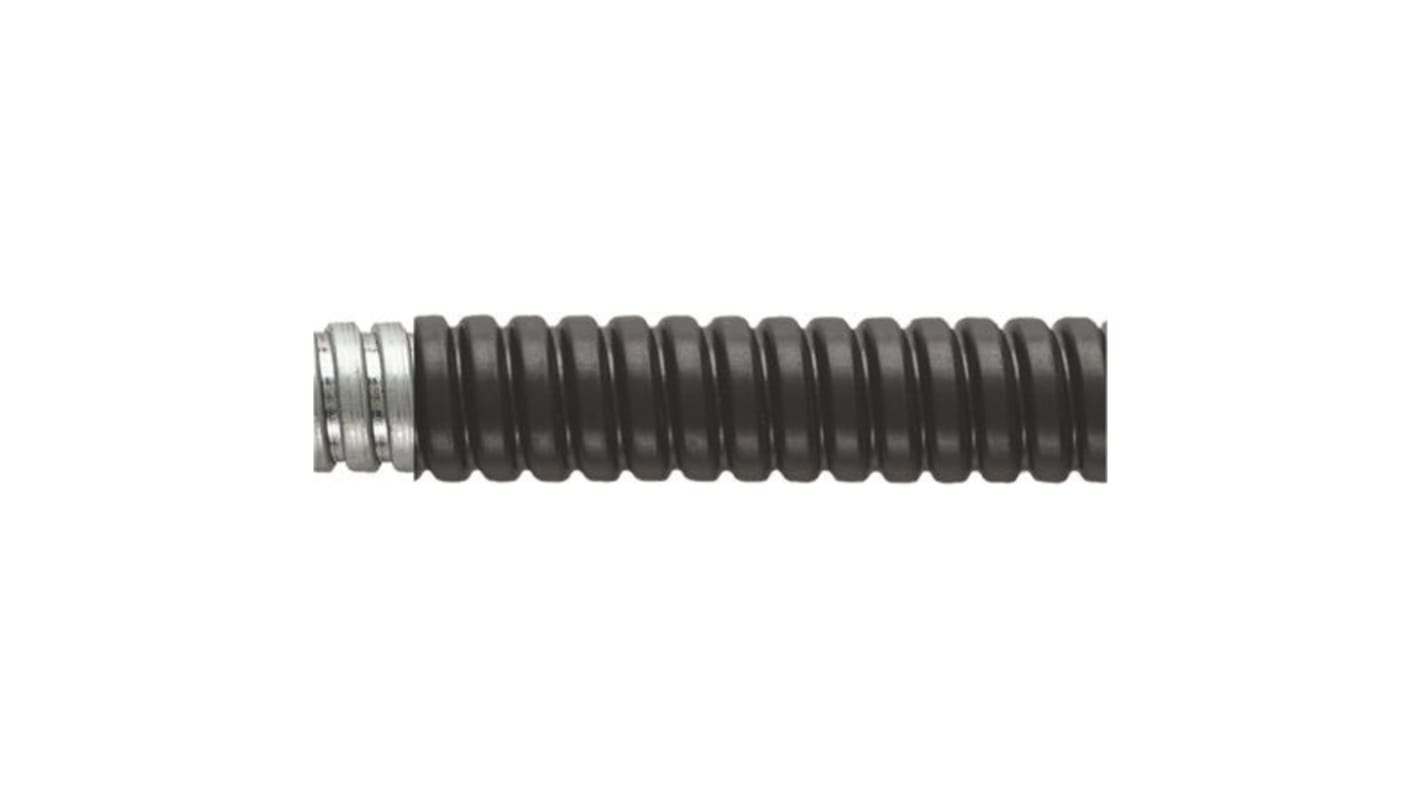

FSU Flexible Conduit, Galvanised Steel with Black PVC Coating

Flexicon FSU flexible conduit. Galvanised steel, helically wound with black PVC coating. Typical applications include general factory wiring and connections to machines.

PVC coated galvanised steel
IP Rating: IP54 with standard fittings and IP65 with FSU Type C compression fittings
Compression strength (20mm nominal size): 350kg/100mm
Pull off strength (20mm nominal size): 120kg
Minimum bend radius (for 20mm nominal size conduit): 45mm
High fatigue life
Temperature range: -15°C to +70°C
Self extinguishing
High UV resistance, suitable for outdoor use

Approvals

CE
BS EN IEC 61386
REACh
RoHS

Flexicon Flexible Conduit

Specifications
Attribute Value
Nominal Diameter 32mm
Material Steel
Conduit Type Flexible
Colour Black
Outer Diameter 34mm
Interior Diameter 28.1mm
Length 25m
IP Rating IP54
Coating Material PVC
Series FSU
Maximum Operating Temperature +70°C
Minimum Operating Temperature -15°C
Minimum Bend Radius 60 mm
Standards Met CE, IEC EN 61386
14 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 166.08
(exc. VAT)
£ 199.30
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 4
£166.08
£6.643
5 - 14
£132.87
£5.315
15 +
£126.22
£5.049
*price indicative
