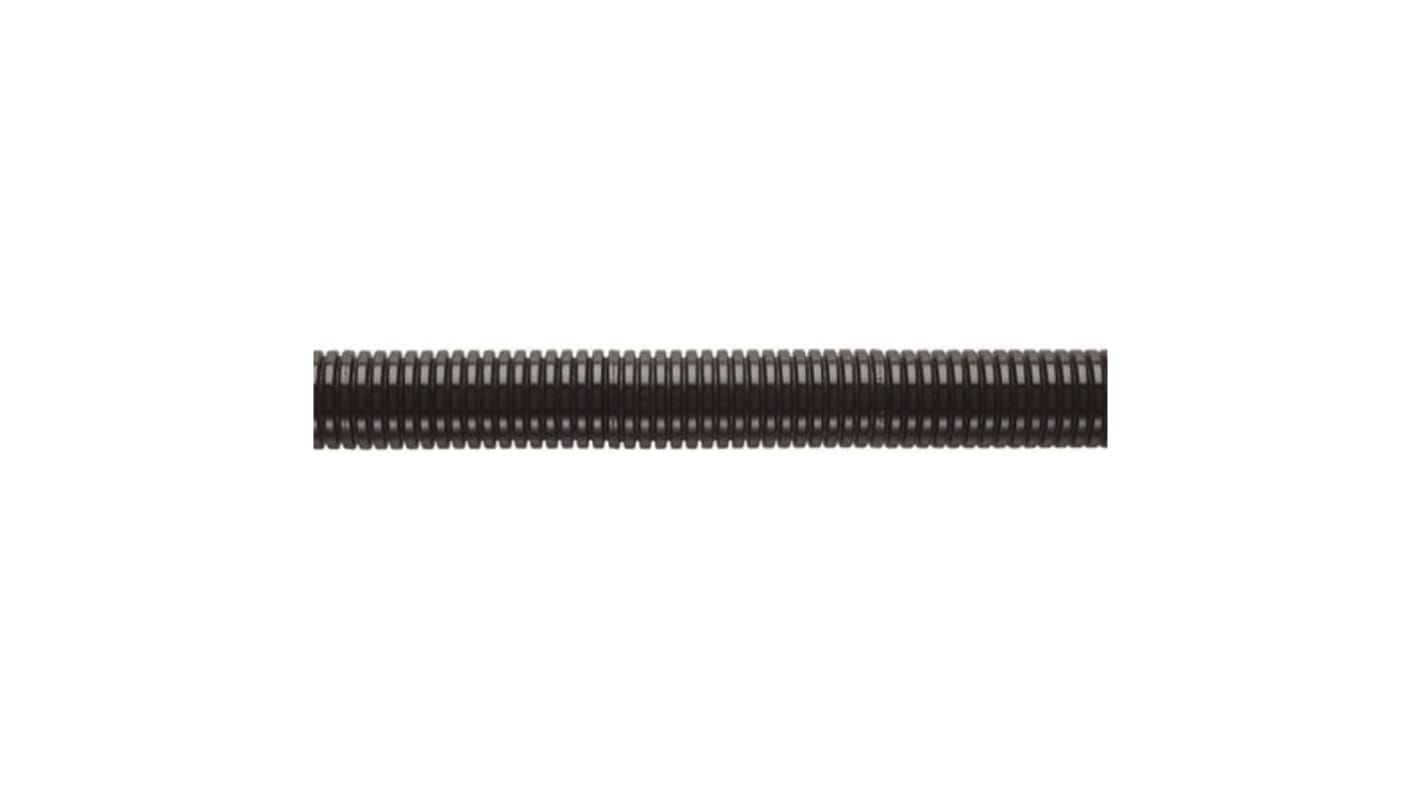

Flexicon FPAS Plastic Flexible Conduit Black 28mm 25m

  • RS Stock No. 124-0012
  • Mfr. Part No. FPAS28B-25M
  • Brand Flexicon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

FPAS Standard Weight Non-Metallic Conduit

Non-metallic conduit systems are typically lighter, easier to work with and more cost effective to install. With advances in material technology, non-metallic systems can provide an alternative solution where typically only metal systems had been considered previously.

FPAS non-metallic conduit. Standard weight flame retardant nylon (PA6) corrugated flexible.

Typical applications: all types of machinery and public buildings.

Highly flexible
High impact strength and recovers if crushed
Temperature range: -40°C to +120°C (-20°C to +100°C if moving)
Lloyds Register type approval
UL listed / UL recognised
Low fire hazard (LFH)
UL 94 V2 flame retardancy
Halogen, sulphur and phosphorus free
UV resistant (black)
Abrasion resistant
Highly resistant to solvents and oils

Approvals

CE
Lloyds Register
UL listed / UL recognised
Underground
Achilles
Link-Up Registered
BS EN IEC 61386
RoHS
REACh
UKAS

Flexicon Flexible Conduit

Specifications
Attribute Value
Nominal Diameter 28mm
Material Plastic
Conduit Type Flexible
Colour Black
Outer Diameter 28.5mm
Interior Diameter 22.8mm
Length 25m
IP Rating IP40
Series FPAS
Maximum Operating Temperature +120°C
Minimum Operating Temperature -40°C
Minimum Bend Radius 50 mm
13 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 57.68
(exc. VAT)
£ 69.22
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 9
£57.68
£2.307
10 +
£52.49
£2.10
*price indicative
