Adaptaflex SP PVC Coated Galvanised Steel Flexible Conduit Black 20mm 25m M20

  • RS Stock No. 603-097
  • Mfr. Part No. SP20/BL/25M
  • Brand Adaptaflex
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Standard & Low Fire Hazard Conduit

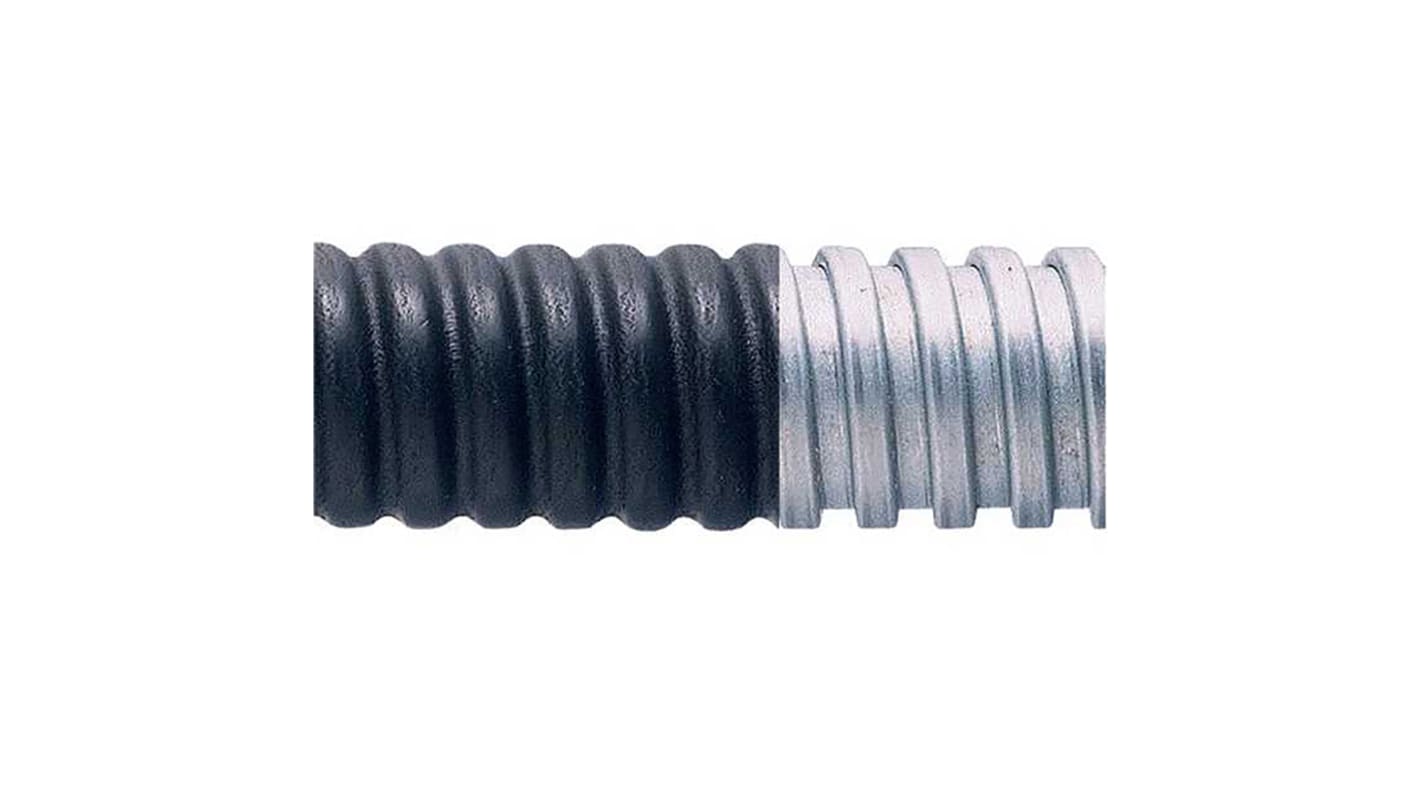

Two types of flexible liquid resistant conduits from Adaptaflex, the standard version is a helically wound galvanised steel strip with a black PVC cover whilst the LFH (Low Fire Hazard) type is Polyolefin covered which has halogen free, flame retardant & low toxicity properties which complement Fire Performance cables where public safety is of concern e.g. Hospitals, Shopping centres, Underground Railways etc.

IP54 or IP65 (dependant on Fitting)
-15°C to +70°C operating temperature, -25°C to +90°C (LFH type)
Non Flame propagating to EN50086
UV resistant
Compression strength 1500N/50mm
Halogen Free (LFH type only)
Low Smoke and Fume (LFH type only)

Note

The conduit is measured under tension and may be subject to variations in length when relaxed.

Specifications
Attribute Value
Nominal Diameter 20mm
Material Galvanised Steel
Conduit Type Flexible
Colour Black
Outer Diameter 21.5mm
Interior Diameter 16.9mm
Length 25m
IP Rating IP54, IP65
Coating Material PVC
Series SP
Thread Size M20
Maximum Operating Temperature +70°C
Minimum Operating Temperature -15°C
Minimum Bend Radius 45 mm
132 In stock for FREE next working day delivery
Price 1 Reel of 25 Metre(s)
£ 99.26
(exc. VAT)
£ 119.11
(inc. VAT)
Reel(s)
Per Reel
Per Metre*
1 - 9
£99.26
£3.97
10 - 49
£94.31
£3.772
50 +
£89.33
£3.573
*price indicative
