• RS Stock No. 724-3131
  • Brand RS Pro
RS Pro

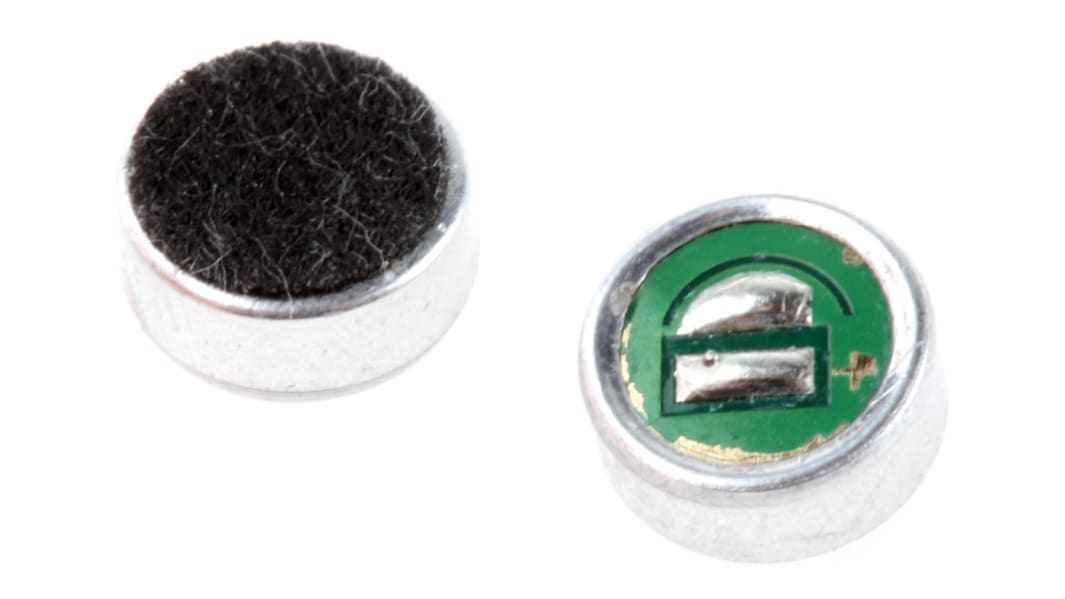

RS Pro Omni-Directional 6mm Microphone Condenser, 50 → 16000 Hz -41dB
Product Details

Electret Microphone Inserts

Range of SMT and PCB mounting miniature electret condenser microphone inserts

Add product to Compare
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Sensitivity-41dB
DirectivityOmni-Directional
Standard Operating Voltage2V
Output Impedance2.2kΩ
Signal to Noise Ratio60dB
Maximum Supply Current0.5mA
Dimensions6 (Dia.) x 2.7mm
Diameter6mm
Height2.7mm
Maximum Frequency16kHz
Maximum Operating Temperature+70°C
Minimum Frequency50Hz
Minimum Operating Temperature-20°C
Select all
Customer reviews

Add a review - Log In

74 In stock for FREE next working day delivery
£0.955
Price Each (In a Pack of 2)
2 - 18
£0.955
20 +
£0.88
Quantity
Units
Check stock levels
*price indicative
Packaging Options:
What is Production Packaging?
Components are supplied in the original manufacturer's packaging, ready for insertion into your machinery. Allowing you to reduce waste and improve production efficiency.
Technical Reference
  • RS Components

    Statement of conformity


    The product detailed below complies with the specifications published by RS Components. Where applicable it provides assurance that electrostatic discharge sensitive devices have been handled and packed under conditions that meet the administrative and technical requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards.
    RS Stock No. 724-3131
    Description RS Pro Omni-Directional 6mm Microphone Condenser, 50 → 16000 Hz -41dB
    Manufacturer/Brand: RS Pro
    Mfr. Part No. ABM-706-RC
    The foregoing information relates to product sold on, or after, the date shown below.
    RS COMPONENTS
    Date Dec 18, 2017
    RS Components Ltd, Birchington Road, Corby, Northamptonshire, NN17 9RS, UK
