- RS Stock No.:
- 290-3585
- Mfr. Part No.:
- ADH4000-04
- Brand:
- SMC
- RS Stock No.:
- 290-3585
- Mfr. Part No.:
- ADH4000-04
- Brand:
- SMC
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

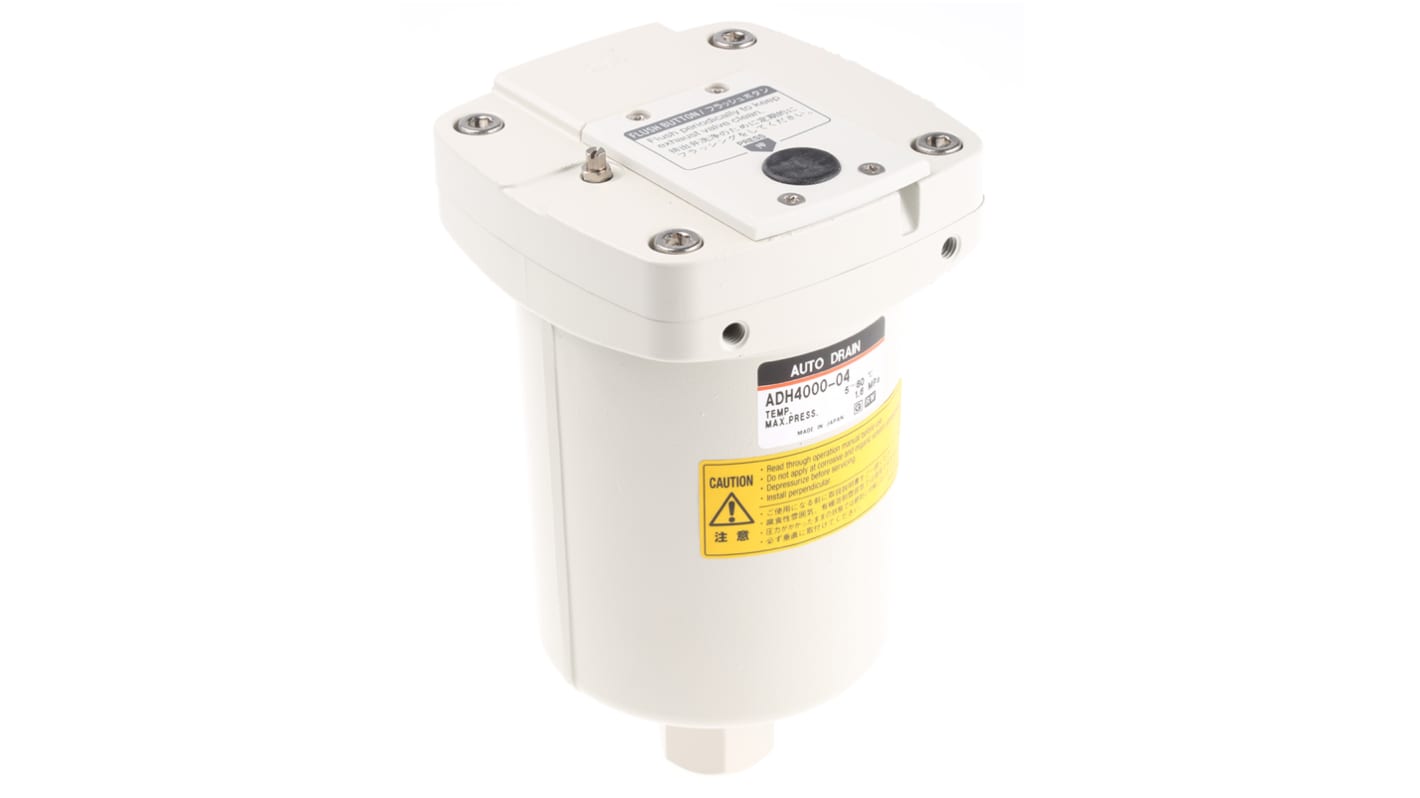

Heavy Duty ADH Series Drain
Long life reliability
Float type auto drain with normally open valve
Bowl capacity 400cc/min (0.7MPa water discharge)
Temperature range -5°C to +60°C
No risk of back pressure
Easy operation and maintenance
Float type auto drain with normally open valve
Bowl capacity 400cc/min (0.7MPa water discharge)
Temperature range -5°C to +60°C
No risk of back pressure
Easy operation and maintenance
Specifications
Attribute | Value |
---|---|
Inlet Port | Rc 1/2 |
Drain Type | Automatic |
Outlet Port | Rc 1/2 |
Manufacturer Series | ADH4000 |
Bowl Capacity | 400cm³/min |
Dimensions | 189 x 100 x 108mm |
Minimum Operating Temperature | +5°C |
Height | 189mm |
Minimum Operating Pressure | 0.05MPa |
Depth | 108mm |
Inlet Port Thread Standard | Rc |
Width | 100mm |
Maximum Operating Pressure | 1.6 MPa |
Maximum Operating Temperature | +60°C |
