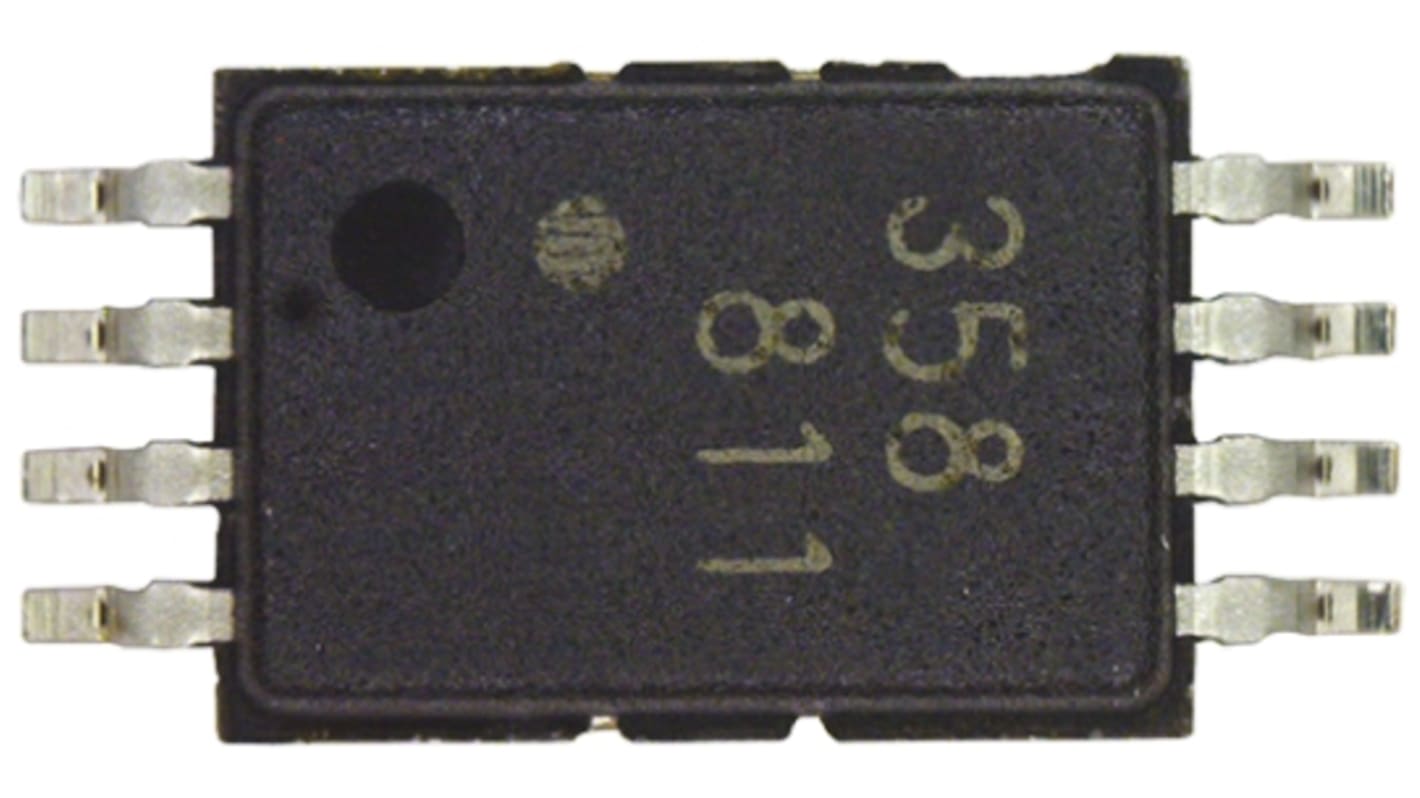

UPC393GR-9LG-E1-A Renesas Electronics, Dual Comparator, Open Collector O/P, 1.8μs 3 → 28 V 8-Pin TSSOP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details
Specifications
Attribute Value
Comparator Type General Purpose
Mounting Type Surface Mount
Package Type TSSOP
Power Supply Type Dual, Single
Output Type Open Collector
Number of Channels per Chip 2
Typical Response Time 1.8µs
Pin Count 8
Typical Single Supply Voltage 3 → 28 V
Dimensions 3.15 x 4.4 x 1mm
Length 3.15mm
Width 4.4mm
Height 1mm
Typical Dual Supply Voltage ±12 V, ±15 V, ±3 V, ±5 V, ±9 V
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Typical Voltage Gain 106.02 dB
130 In stock for delivery within 5 working days
Price Each (In a Pack of 10)
£ 0.273
(exc. VAT)
£ 0.328
(inc. VAT)
Units
Per unit
Per Pack*
10 - 240
£0.273
£2.73
250 - 990
£0.179
£1.79
1000 - 2490
£0.177
£1.77
2500 - 4990
£0.175
£1.75
5000 +
£0.172
£1.72
*price indicative
Not available for guaranteed pre 9am/10am delivery
