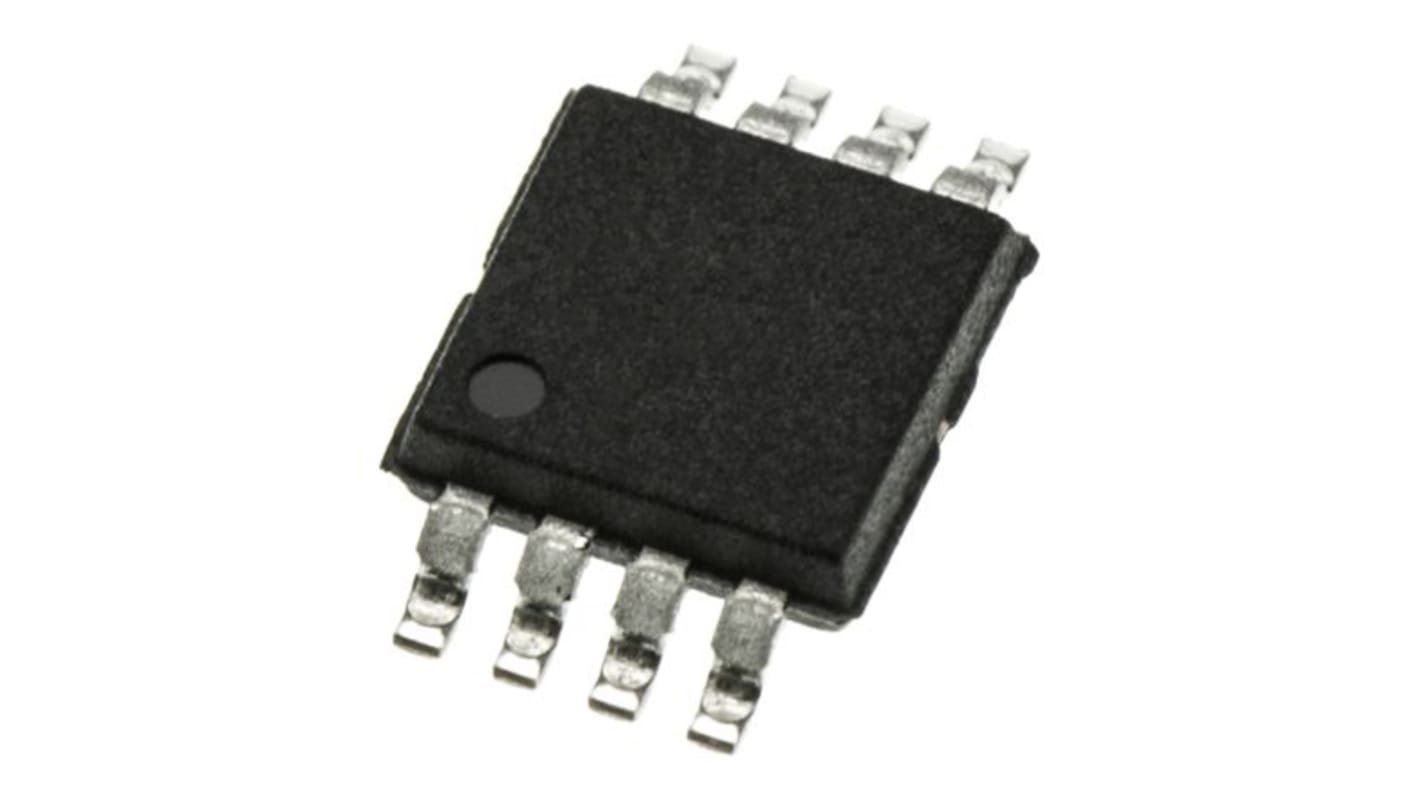

MAX992EUA+ Maxim, Comparator, Open Drain O/P, 2.5 → 5.5 V 8-Pin μMAX

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TH
Product Details

120ns Propagation Delay
48μA Quiescent Supply Current
+2.5V to +5.5V Single-Supply Operation
Common-Mode Input Voltage Range Extends 250mV Beyond the Rails
Push-Pull Output Stage Sinks and Sources 8mA Current (MAX987/MAX991/MAX995)
Open-Drain Output Voltage Extends Beyond VCC (MAX988/MAX992/MAX996)
Unique Output Stage Reduces Output Switching Current, Minimizing Overall Power Consumption
100μA Supply Current at 1MHz Switching Frequency
No Phase Reversal for Overdriven Inputs
Available in Space-Saving Packages:
5-Pin SC70 (MAX987/MAX988)
8-Pin μMAX (MAX991/MAX992)
Applications
Digital-Line Receivers
Ground/Supply Sensing
IR Receivers
Level Translators
Mobile Communications
Portable Battery-Powered Systems
Threshold Detectors
Window Comparators
Zero-Crossing Detectors

Specifications
Attribute Value
Mounting Type Surface Mount
Package Type μMAX
Power Supply Type Dual, Single
Output Type Open Drain
Number of Channels per Chip 1
Pin Count 8
Typical Single Supply Voltage 2.5 → 5.5 V
Dimensions 3.1 x 3.1 x 0.95mm
Length 3.1mm
Width 3.1mm
Height 0.95mm
Typical CMRR 80dB
Typical Dual Supply Voltage ±1.25 → 2.75V
Maximum Operating Temperature +85 °C
Minimum Operating Temperature -40 °C
Typical PSRR 80dB
600 In stock - FREE next working day delivery available
Price Each (In a Pack of 5)
£ 1.454
(exc. VAT)
£ 1.745
(inc. VAT)
Units
Per unit
Per Pack*
5 - 5
£1.454
£7.27
10 +
£1.32
£6.60
*price indicative
