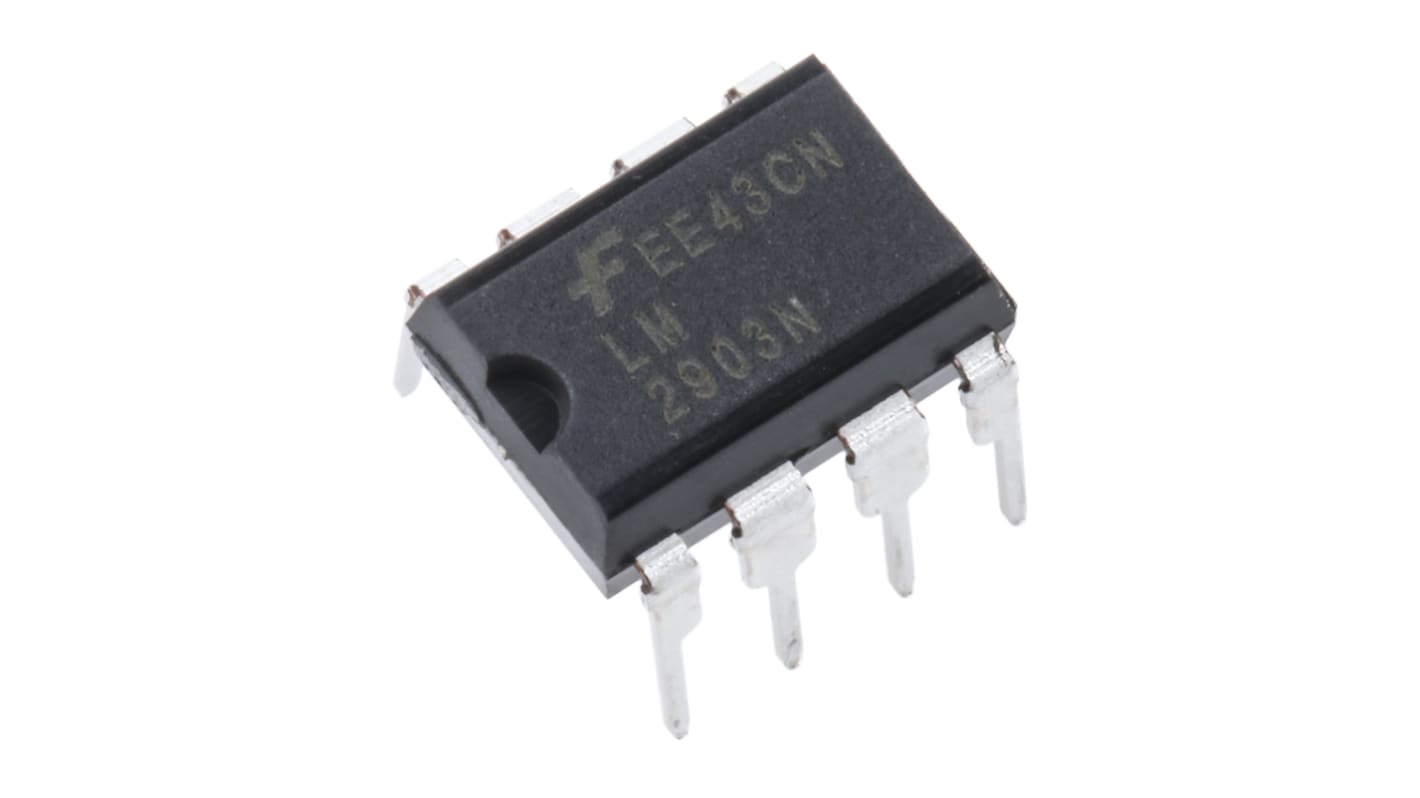

LM2903N ON Semiconductor, Dual Comparator, Open Collector O/P, 0.2 μs, 1.4 μs 2 → 36 V 8-Pin PDIP

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Comparators, Fairchild Semiconductor

Comparators, Fairchild Semiconductor

Specifications
Attribute Value
Comparator Type General Purpose
Mounting Type Through Hole
Package Type PDIP
Power Supply Type Dual, Single
Output Type Open Collector
Number of Channels per Chip 2
Typical Response Time 0.2 μs, 1.4 μs
Pin Count 8
Typical Single Supply Voltage 2 → 36 V
Dimensions 9.6 x 6.4 x 3.4mm
Length 9.6mm
Width 6.4mm
Height 3.4mm
Minimum Operating Temperature -40 °C
Typical Voltage Gain 200 V/mV
Typical Dual Supply Voltage ±1 → ±18V
Maximum Operating Temperature +105 °C
Available to back order for despatch when stock is available
Price Each (In a Tube of 50)
£ 0.666
(exc. VAT)
£ 0.799
(inc. VAT)
Units
Per unit
Per Tube*
50 +
£0.666
£33.30
*price indicative
