JAE Compact Power Connector Cable Mount Socket, 3A
Product Details

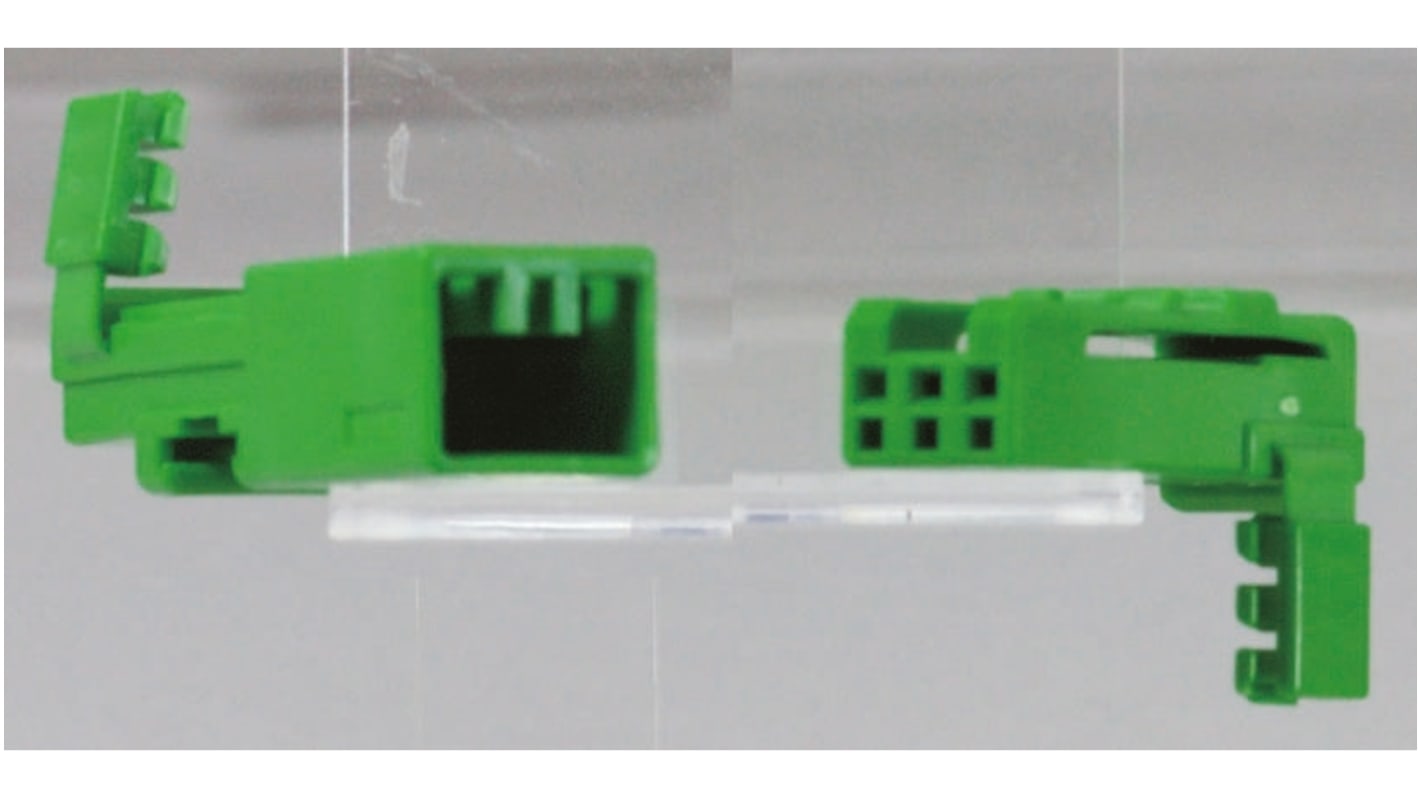

JAE IL-AG9 In-line Plugs and Sockets

These IL-AG9 wire to wire in-line plug and socket housings incorporate a hinge type double hooking mechanism which prevents incomplete terminal insertion and removal plus the pin housing can facilitate a nylon clip for attachment.

Note

For contacts for use in these IL-AG9 housings see stock number 690-9887 female or 690-9896 male.

JAE IL-AG9 Series Automotive Connectors

The JAE IL-AG9 Series is a range of compact relay connectors for use in the automotive industry.

This IL-AG9 series has a small number of contacts on a 2.5 mm pitch. Twisted mating, mis-mating and reverse insertion are prevented by the design of the housings. A mechanical lock method is used to withstand vibration and pulling.

Add product to Compare
Specifications
Not what you’re looking for? Select the attributes you require, then click the button below
Plug/SocketSocket
GenderFemale
Mounting TypeCable Mount
Current Rating3A
Housing MaterialPBT
Minimum Operating Temperature-40°C
Maximum Operating Temperature+125°C
Select all
Customer reviews

Add a review - Log In

Available to back order for despatch 02/02/2018, delivery within 5 working days
£1.376
Price Each (In a Pack of 5)
5 - 45
£1.376
50 +
£1.252
Quantity
Units
*price indicative
Alternative
JAE inline connector Cable Mount Socket, 3A
Compare alternative
Technical Reference
RoHS Status: Not Applicable
