Silicon Labs Development Kit CP2120EK
- RS Stock No.:
- 757-0275
- Mfr. Part No.:
- CP2120EK
- Brand:
- Silicon Labs
Discontinued product
- RS Stock No.:
- 757-0275
- Mfr. Part No.:
- CP2120EK
- Brand:
- Silicon Labs
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
CP2120 Evaluation Kit
The CP2120 Evaluation Kit demonstrates the SPI-I²C fixed functionality. Absolutely no code development is required to utilize this device. Learn more about the CP2120 single-chip SPI to I²C bridge device and GPIO port expander.
Add I²C capability to a device that only has an SPI port
Add GPIOs to an existing system
Add an edge-triggered interrupt to monitor a port pin state
Utilize the on-board LEDs to indicate system states or events
Add GPIOs to an existing system
Add an edge-triggered interrupt to monitor a port pin state
Utilize the on-board LEDs to indicate system states or events
Kit Contents

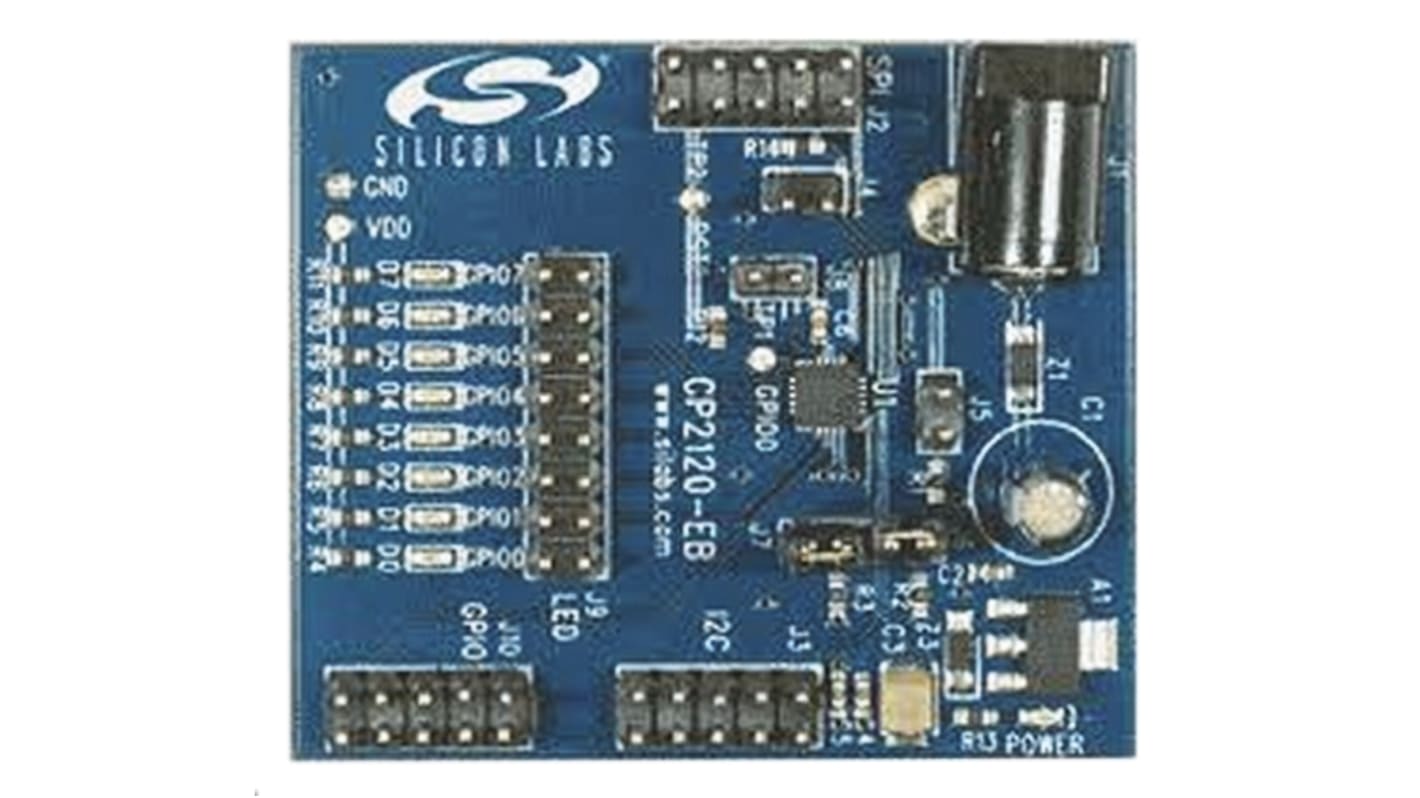

CP2120 Evaluation Board
Universal (100–240 V, 50–60 Hz) ac to dc power adapter
Documentation:
CP2120-EK User’s Guide
CP2120 Data Short
CP2120 Data Sheet
AN311: CP2120 Porting Guide
Universal (100–240 V, 50–60 Hz) ac to dc power adapter
Documentation:
CP2120-EK User’s Guide
CP2120 Data Short
CP2120 Data Sheet
AN311: CP2120 Porting Guide
Specifications
Attribute | Value |
|---|---|
| Classification | Development Kit |
| Technology | SPI to I2C |
| Kit Classification | Development Kit |
