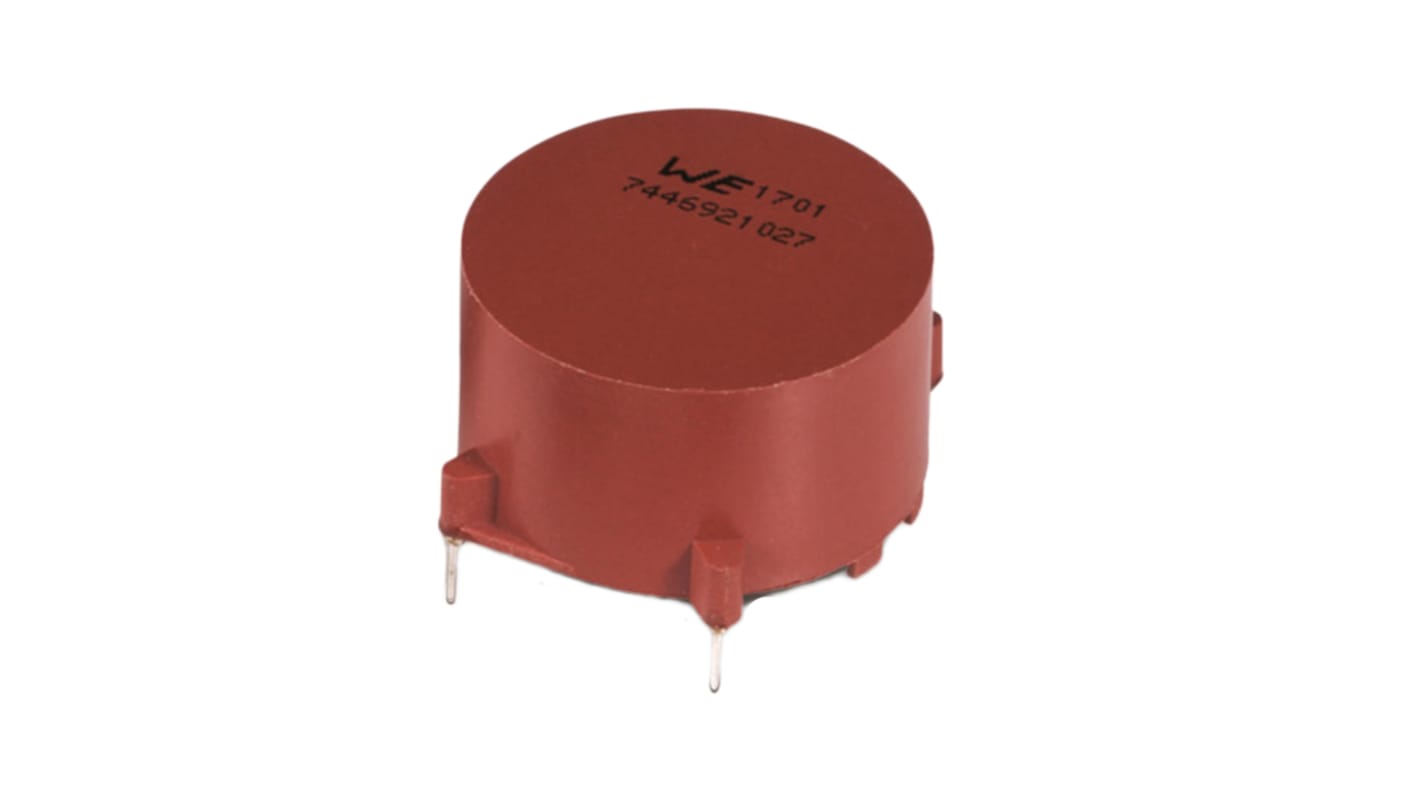

Wurth Elektronik 2 x 1.2 mH 3 A Common Mode Choke 2 x 0.04Ω

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

Wurth WE-LF Series Common Mode Chokes

Dual toroidal-core chokes for use in mains filter circuits
The high-quality core material allows suppression over a wide frequency range
4-pin housing
Toroidal-core chokes with segment winding
Good suppression of common-mode interference in the low- to medium- frequency range
Limited leakage field

Applications: Mains filters, power electronics, switched-mode power supply units

Approvals

UL

Wurth Leaded Inductors (Chokes)

Specifications
Attribute Value
Inductance 2 x 1.2 mH
Series WE-LF
Impedance 40 mΩ
DC Resistance 2 x 0.04Ω
Maximum Current 3 A
Dimensions 23 (Dia.) x 14.5mm
Operating Temperature Range -40 → +125 °C
Mounting Type Through Hole
Height 14.5mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
166 In stock for FREE next working day delivery
Price Each
£ 4.51
(exc. VAT)
£ 5.41
(inc. VAT)
Units
Per unit
1 - 24
£4.51
25 - 99
£3.07
100 - 249
£2.80
250 - 499
£2.51
500 +
£2.39
