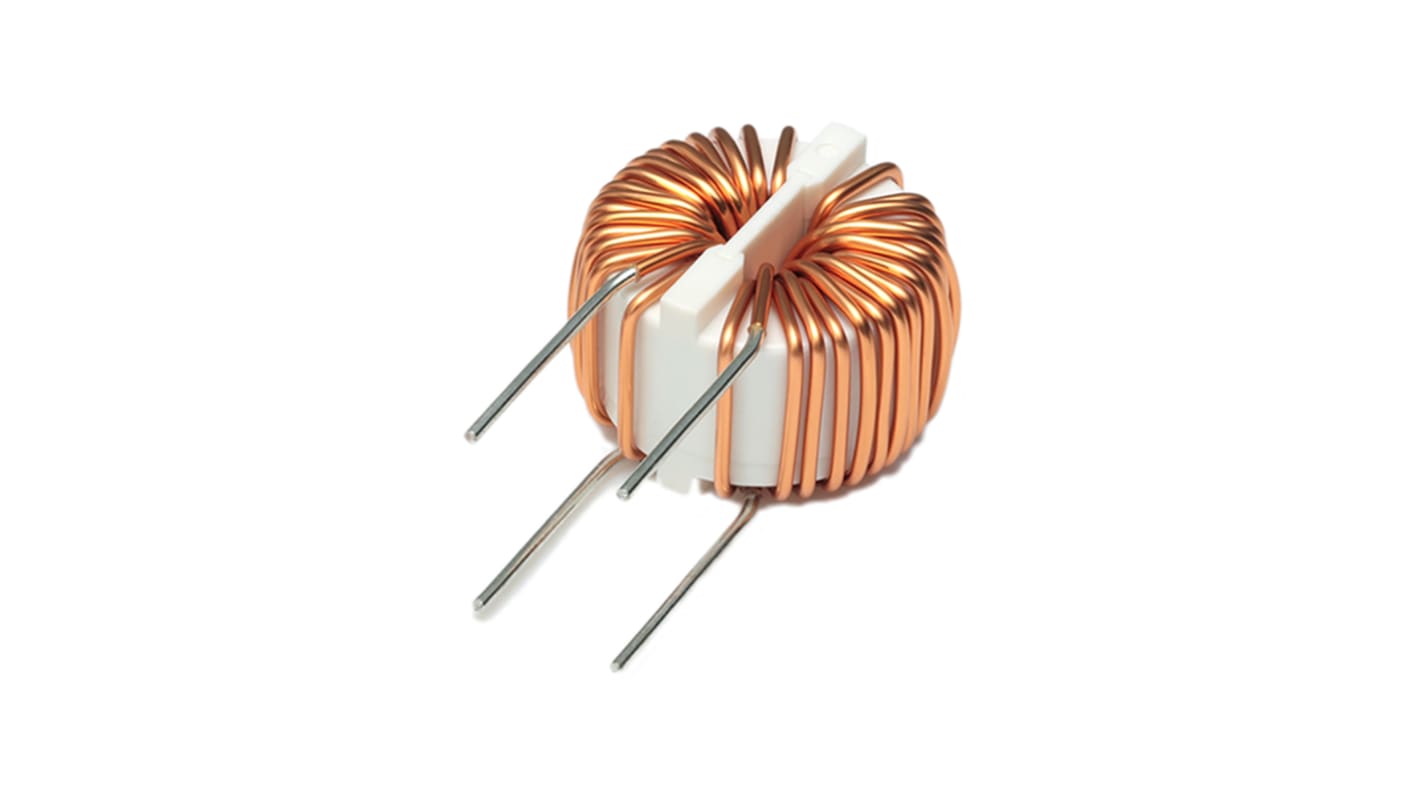

KEMET 2 mH 1 A Common Mode Choke 180mΩ
- RS Stock No.:
- 863-3816
- Mfr. Part No.:
- SC-01-20GS
- Brand:
- KEMET
5480 In stock - FREE next working day delivery available
Added
Price Each (In a Bag of 5)
£1.284
(exc. VAT)
£1.541
(inc. VAT)
| Units | Per unit | Per Bag* |
| 5 + | £1.284 | £6.42 |
| *price indicative | ||
- RS Stock No.:
- 863-3816
- Mfr. Part No.:
- SC-01-20GS
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
Product Details
Kemet SC-G Series Common Mode Chokes
Kemet SC Coil AC Line filters are suitable for use as common mode chokes and in consumer electronics. A range of different sizes and specifications are available.
Rated currents up to 2 A
DC resistances between 0.08 and 0.18 Ω
Inductances of between 1000 and 5000 uH
DC resistances between 0.08 and 0.18 Ω
Inductances of between 1000 and 5000 uH
Specifications
Attribute | Value |
|---|---|
| Inductance | 2 mH |
| Series | SC-G |
| Test Frequency | 1 KHz |
| DC Resistance | 180mΩ |
| Maximum Current | 1 A |
| Dimensions | 15 x 8.5 x 15mm |
| Operating Temperature Range | -25°C → +105°C |
| Mounting Type | Through Hole |
| Termination Style | Solder Pad |
| Height | 15mm |
| Length | 15mm |
| Depth | 8.5mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +105°C |
- RS Stock No.:
- 863-3816
- Mfr. Part No.:
- SC-01-20GS
- Brand:
- KEMET
