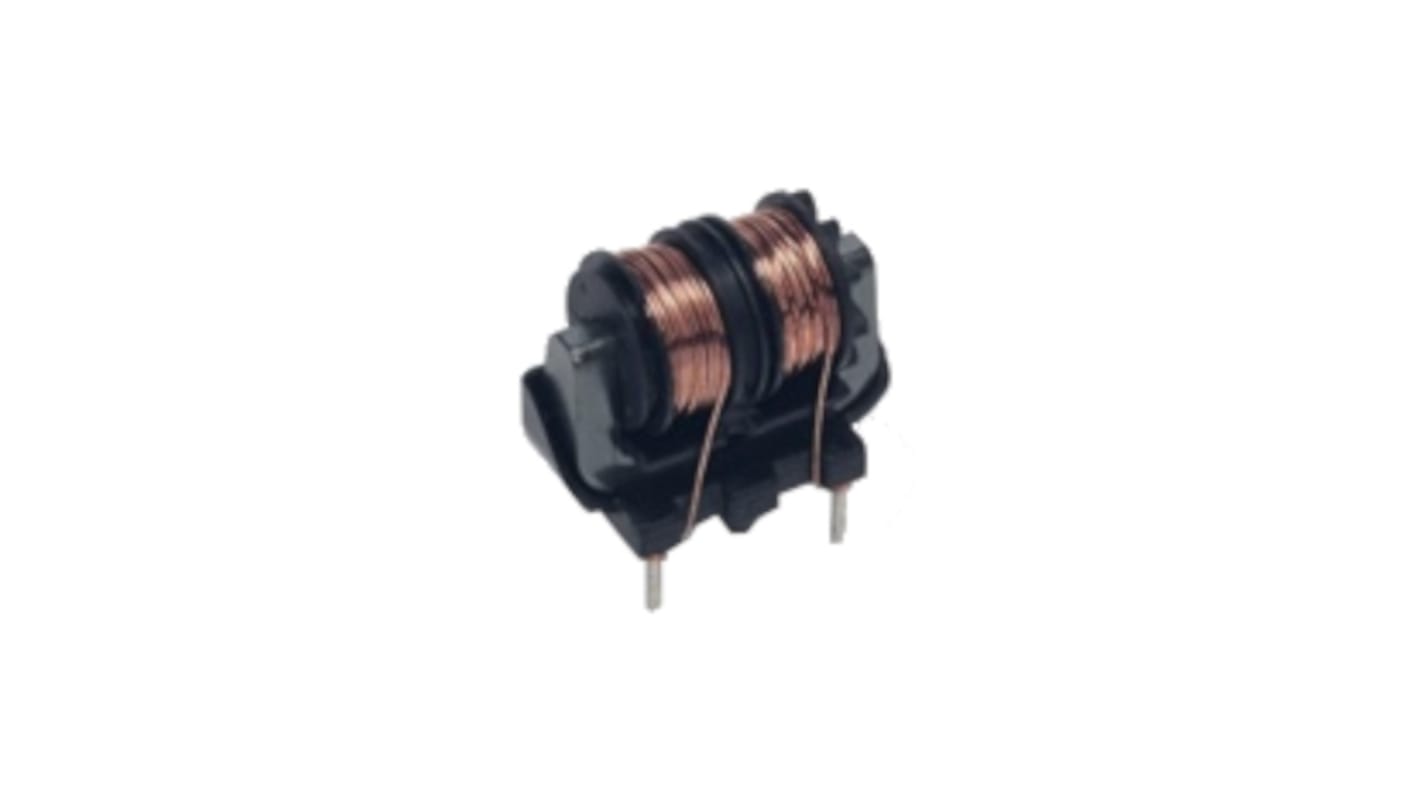

KEMET 1.6 mH 3 A Common Mode Choke 0.06Ω
- RS Stock No.:
- 183-6501
- Mfr. Part No.:
- SSR10V-30016
- Brand:
- KEMET
Available to back order for despatch 13/06/2025
Added
Price Each (In a Tray of 100)
£0.953
(exc. VAT)
£1.144
(inc. VAT)
| Units | Per unit | Per Tray* |
| 100 + | £0.953 | £95.30 |
| *price indicative | ||
- RS Stock No.:
- 183-6501
- Mfr. Part No.:
- SSR10V-30016
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- VN
Product Details
The KEMET SSR coils are common mode chokes with a wide variety of characteristics. These gear type coils are designed with our proprietary high permeability ferrite S15H cores and are useful in various noise counter measure fields.
Proprietary S15H ferrite material
High permeability
Large inductance due to non-divided bobbin
Compact size,low profile and light weight
Operating temperature range from −25°C to +120°C
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
High permeability
Large inductance due to non-divided bobbin
Compact size,low profile and light weight
Operating temperature range from −25°C to +120°C
Applications
Audio-visual equipment
Office automation equipment
Digital appliances
Power supplies
Specifications
Attribute | Value |
|---|---|
| Inductance | 1.6 mH |
| Series | SSR10V |
| Test Frequency | 10 kHz |
| DC Resistance | 0.06Ω |
| Maximum Current | 3 A |
| Dimensions | 23.5 x 13 x 21mm |
| Operating Temperature Range | -25°C → +120°C |
| Number of Lines | 2 |
| Mounting Type | Through Hole |
| Termination Style | Solder Pad |
| Depth | 13mm |
| Height | 21mm |
| Length | 23.5mm |
| Maximum Operating Temperature | +120°C |
| Minimum Operating Temperature | -25°C |
