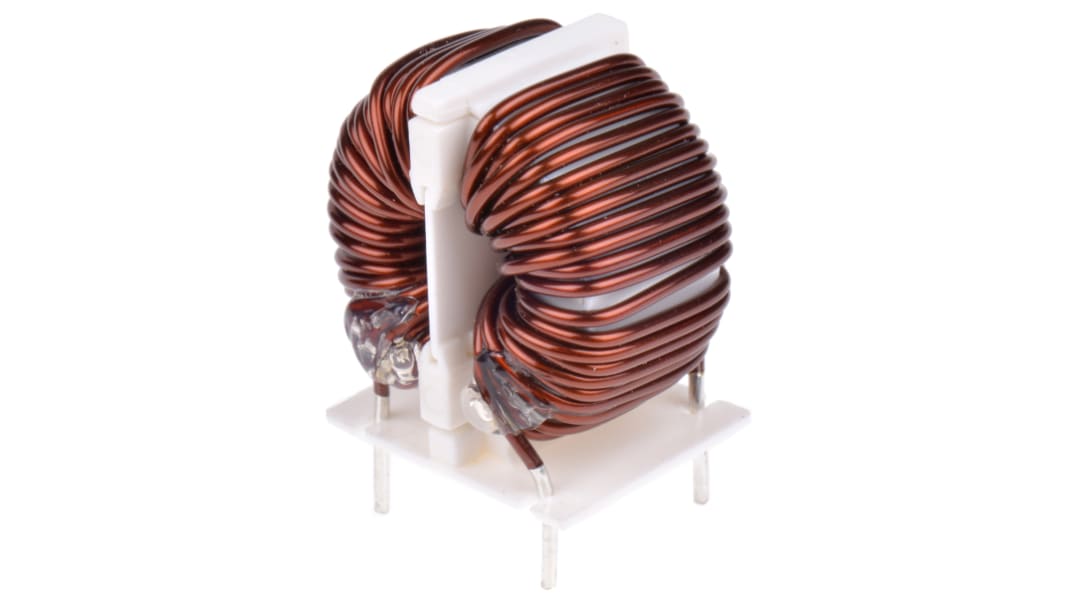

KEMET 3 mH 10 A Common Mode Choke 30mΩ
- RS Stock No.:
- 169-6883
- Mfr. Part No.:
- SC-10-30J
- Brand:
- KEMET
Available to back order for despatch 13/12/2024
Added
Price Each (In a Box of 200)
£3.587
(exc. VAT)
£4.304
(inc. VAT)
| Units | Per unit | Per Box* |
| 200 + | £3.587 | £717.40 |
| *price indicative | ||
- RS Stock No.:
- 169-6883
- Mfr. Part No.:
- SC-10-30J
- Brand:
- KEMET
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- VN
Product Details
Kemet SC-J Series Terminal Base Type Common Mode Chokes
Kemet SC Coils, SC-J Terminal Base Type AC line filters, are suitable for use as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available.
Rated currents up to 18 A
DC resistances as low as 7 mΩ
Inductances up to 8 mH
DC resistances as low as 7 mΩ
Inductances up to 8 mH
Specifications
Attribute | Value |
|---|---|
| Inductance | 3 mH |
| Series | SC-J |
| Test Frequency | 100 KHz |
| DC Resistance | 30mΩ |
| Maximum Current | 10 A |
| Dimensions | 34 x 24 x 33mm |
| Operating Temperature Range | -25°C → +120°C |
| Mounting Type | Through Hole |
| Termination Style | Solder Pad |
| Minimum Operating Temperature | -25°C |
| Depth | 24mm |
| Maximum Operating Temperature | +120°C |
| Length | 34mm |
| Height | 33mm |
