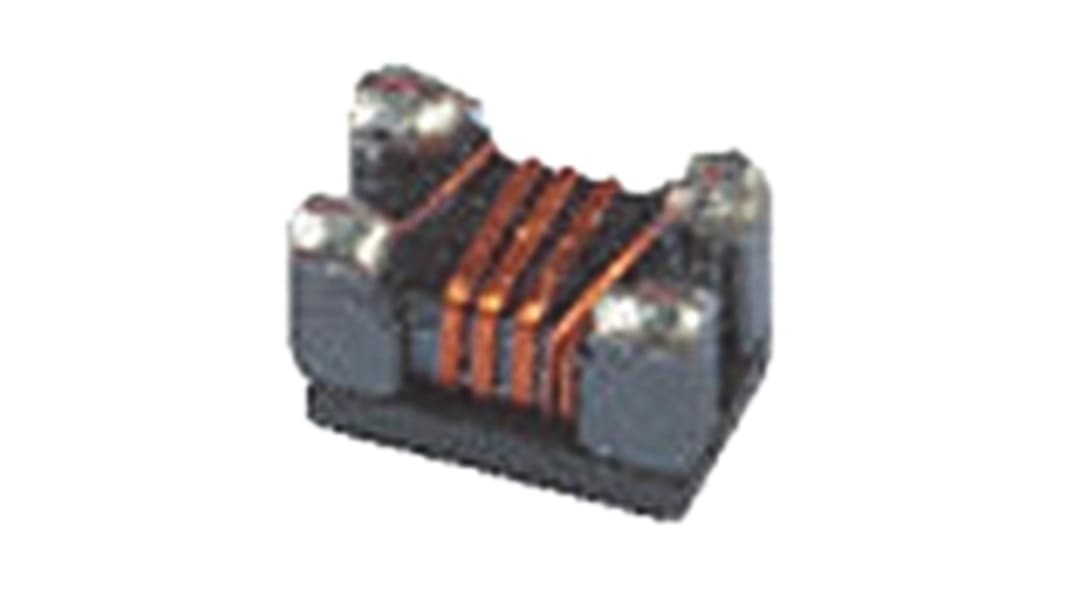

Murata 330 mA Common Mode Choke 0.35Ω
- RS Stock No.:
- 166-9691
- Mfr. Part No.:
- DLW21HN670SQ2L
- Brand:
- Murata
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 3000)
£0.123
(exc. VAT)
£0.148
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.123 | £369.00 |
| 6000 + | £0.104 | £312.00 |
| *price indicative | ||
- RS Stock No.:
- 166-9691
- Mfr. Part No.:
- DLW21HN670SQ2L
- Brand:
- Murata
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Murata 0805 DLW21H Series SMD Common Mode Chokes
The DLW21H series is designed for removal of common mode noise on different types of interfaces: USB 2.0, IEE1394 and LVDS.
High common mode impedance at high frequencies.
No signal distortion.
Low profile, small size enclosure (2.0 x 1.2 x 0.9mm).
Applications: IT equipment: PC USB ports, audio visual equipment: digital cameras.
High common mode impedance at high frequencies.
No signal distortion.
Low profile, small size enclosure (2.0 x 1.2 x 0.9mm).
Applications: IT equipment: PC USB ports, audio visual equipment: digital cameras.
Murata SMD Common Mode Chokes
Specifications
Attribute | Value |
|---|---|
| Series | DLW21H |
| Impedance | 67 Ω |
| Test Frequency | 100 MHz |
| DC Resistance | 0.35Ω |
| Maximum Current | 330 mA |
| Dimensions | 2 x 1.2 x 0.9mm |
| Operating Temperature Range | -40°C → +85°C |
| Mounting Type | Surface Mount |
| Termination Style | Surface Mount |
| Package/Case | 0805 (2012M) |
| Maximum Operating Temperature | +85°C |
| Depth | 1.2mm |
| Height | 0.9mm |
| Minimum Operating Temperature | -40°C |
| Length | 2mm |
