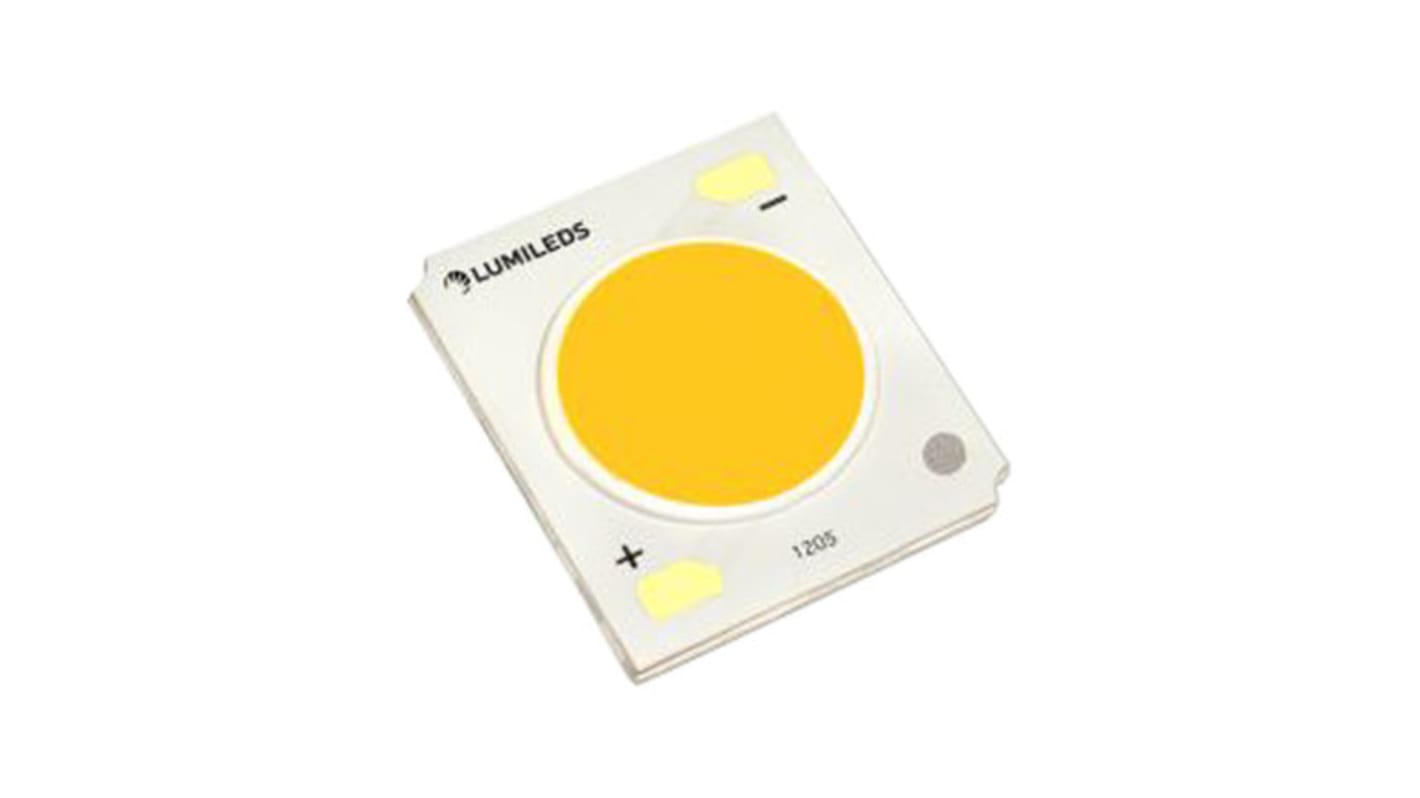

Lumileds L2C5-35901205E1300, LUXEON COB Gen3 White CoB LED, 3500K 90CRI
- RS Stock No.:
- 170-9772
- Mfr. Part No.:
- L2C5-35901205E1300
- Brand:
- Lumileds
Discontinued product
- RS Stock No.:
- 170-9772
- Mfr. Part No.:
- L2C5-35901205E1300
- Brand:
- Lumileds
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Lumileds LUXEON CoB Gen3 Series LEDs
The LUXEON CoB Core (Gen 3) range from Lumileds is their third generation of LUXEON CoB LEDs. They offer a higher efficiency and lumen output to previous generations. Their efficacies reach more than 150 lm/W (80CRI) and over 160 lm/W (70CRI).
These Chip-on-Board (CoB) LEDs have a small light emitting surface (LES) with a high flux density and uniform light output.
Suitable applications include architectural, downlights, high bay, low bay, outdoor lighting, speciality lighting and spot lights.
These Chip-on-Board (CoB) LEDs have a small light emitting surface (LES) with a high flux density and uniform light output.
Suitable applications include architectural, downlights, high bay, low bay, outdoor lighting, speciality lighting and spot lights.
Features of the LUXEON CoB Gen 2 LEDs:
Chip-on-Board (COB) LED
Small LES
3-step Macadam ellipse
Uniform light output
High efficacy
Low thermal resistance
Chip-on-Board (COB) LED
Small LES
3-step Macadam ellipse
Uniform light output
High efficacy
Low thermal resistance
CoB LEDs, Lumileds
Specifications
Attribute | Value |
|---|---|
| Typical Luminous Flux | 2533 lm |
| Optical Source Diameter | 13mm |
| Colour Temperature | 3500K |
| Series | LUXEON COB Gen3 |
| Viewing Angle | 115 ° |
| Colour Rendering | 90 |
| LED Colours | White |
| Forward Voltage | 35 V |
| Forward Current | 1200 (Max.)mA |
| Dimensions | 20 x 24 x 1.5mm |
